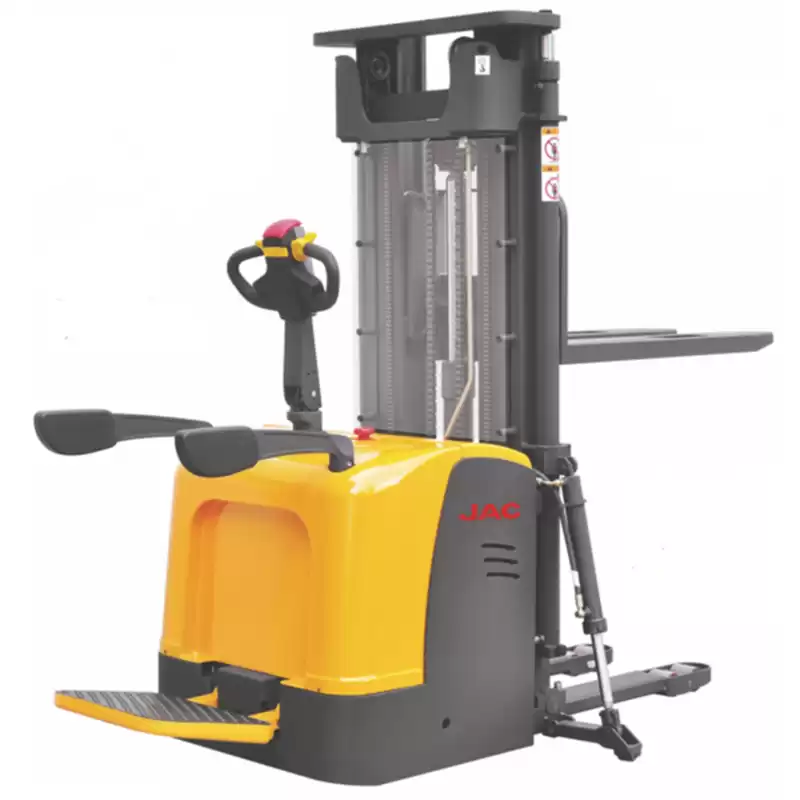

1. Safety and productivity
AC Motor eliminates replacement of carbon brush.
Multi-function display: battery power, fault code, hour meter and speed level.
Side way battery is easy to maintain.
Damping cushion for low-noise operation.
Emergency reversing device in the handle provides higher safety for the whole operation.
Auto deceleration function makes operation more safely.
Built-in pressure relief valve protects the trucks from overloads, increase the reliability.
Breaking applied with handle upright and horizontal position, increasing the safety of the truck.
Emergency power disconnect switch.
Turtle-shaped low speed switch.
Stepless speed control.
Supporting legs in both sides improve the lateral stability of the stacker
2.Optimum structural design
Low center of gravity ensures the stable operation.
Vertical drive wheel ensures convenience for maintenance while also ensuring a small turning radius. The structure of motor is water-proof and dust-proof, which makes the braking and motor more durable and reliable.
The mast and the frame are dividable and exchangeable.
Full free lifting, fit for working in low house.(The lifting height is 3 meters, can enter into a 2-meter height door)
3. Serviceability
Low voltage protection setting prolong the battery use time.
The electronic components’ concentrated design simplify the circuit and makes easy access to assemble, debug and maintain.
CANbus technology reduces wiring complexity and increase reliability.
Hall element reduces wear components, resulting in increased component life.
4. Specification
|
Model
|
|
CDDR20
|
CDDR20(6.5m)
|
|
Load capacity
|
Q(kg)
|
2000
|
2000
|
|
Load center
|
c(mm)
|
600
|
500
|
|
Load distance
|
x(mm)
|
672
|
672
|
|
Tyre size, front
|
mm
|
Φ250×70
|
Φ250×70
|
|
Tyre size, rear
|
mm
|
Φ80×84
|
Φ80×84
|
|
Additional Wheels(dimensions)
|
mm
|
Φ150×60
|
Φ150×60
|
|
Wheels, number front rear(x=driven wheels)
|
|
1x+2/4
|
1x+2/4
|
|
Height, mast lowered
|
H1
|
1735/1985/2135/2235/2050/2210/2410
|
2710
|
|
Free lift (option)
|
H2
|
~/~/~/~/1570/1740/1940
|
2240
|
|
Max. lift height
|
h3(mm)
|
2500/3000/3300/3500/4500/5000/5600
|
6500
|
|
Height, mast extended
|
h4(mm)
|
2955/3455/3755/3955/5030/5510/6110
|
7050
|
|
Height of tiller in drive position min./max
|
h14(mm)
|
1150/1450
|
1150/1450
|
|
Fork height, lowered
|
h13(mm)
|
90
|
90
|
|
Overall length
|
l1(mm)
|
2020/2100
|
2100/2180
|
|
Length to face forks
|
l2(mm)
|
950
|
950
|
|
Overall width
|
b1(mm)
|
850
|
950
|
|
Fork dimensions
|
s/e/l(mm)
|
60/180/1070(1150)
|
60/180/1070(1150)
|
|
Width overall forks
|
b5(mm)
|
570/695
|
570/695
|
|
Aisle width for pallets 800×1200 crossways
|
Ast(mm)
|
2515
|
2595
|
|
Turning radius
|
Wa(mm)
|
1655
|
1735
|
|
Travel speed, laden/unladen
|
Km/h
|
5.8/6
|
5.8/6
|
|
Lift speed, laden/unladen
|
m/s
|
0.09/0.11
|
0.09/0.11
|
|
Lowering speed, laden/unladen
|
m/s
|
0.12/0.11
|
0.12/0.11
|
|
Battery voltage, nominal capacity K5
|
V/Ah
|
24/300
|
24/300
|
|
Battery weight
|
kg
|
300
|
300
|
|
Battery dimensions l/w/h
|
mm
|
675x254x500
|
675x254x500
|
|
Service weight(with battery)
|
kg
|
1280/1320/1350/1640/1680/1720/2020
|
1850
|
