Electric Roller Press Machine With Variable Speed

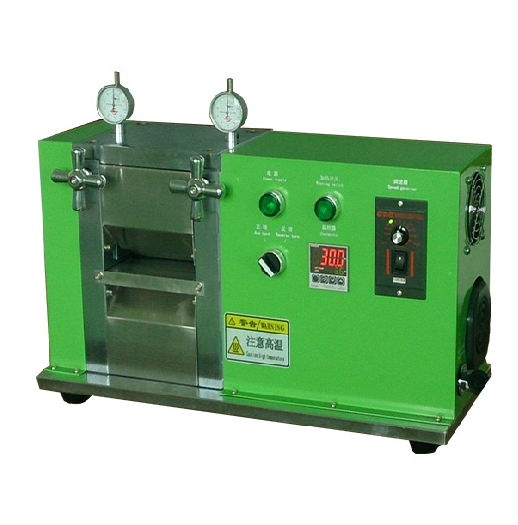

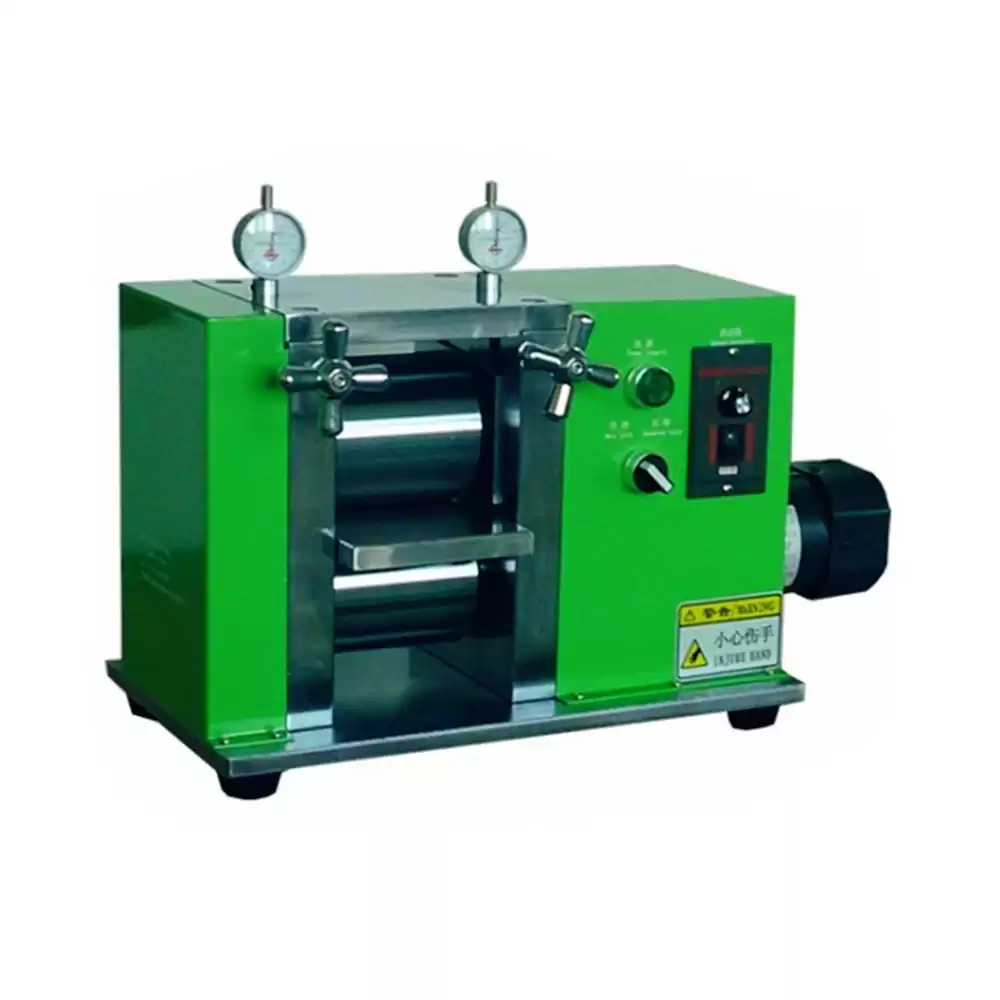

1 TMAX-DG Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 150°C.
|
oller diameter tolerance
|
0.004mm
|
|
Roller Surface Hardness
|
62 HRC
|
|
Roller Dimensions
|
100mm(Dia.) x 100mm(W)
100mm(Dia.) x 200mm(W)
100mm(Dia.) x 400mm(W)
150mm(Dia.) x 200mm(W)
150mm(Dia.) x 400mm(W)
200mm(Dia.) x 200mm(W)
200mm(Dia.) x 400mm(W)
|
|
Working Voltage
|
110V - 240V AC, 50/60Hz, automatic switch for worldwide use
|
|
Roller Material
|
Made from hardened tool steel (RC > 62) with Cr electroplated coating
|
|
Rolling Speed
|
0-40mm/s adjustable
|
|
Warning1
|
Never roll materials with hardness > 50HRC
|
|
Warning2
|
This rolling machine can be used under Ar gas
|
|
Application
|
Battery Equipments
|
|
Color
|
Request
|
|
