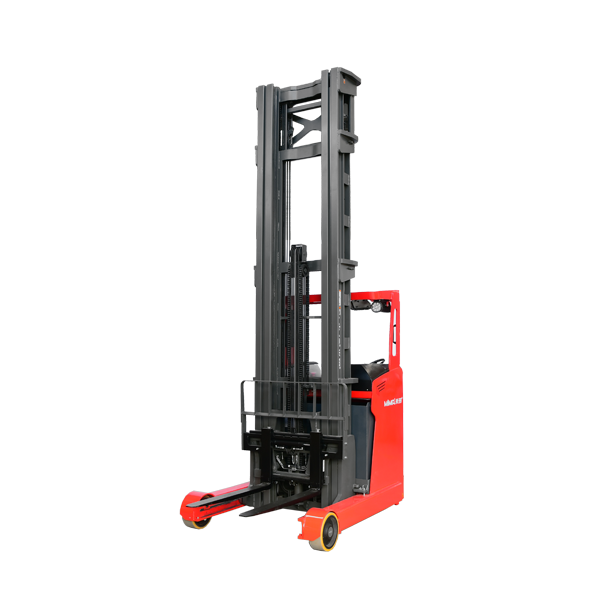

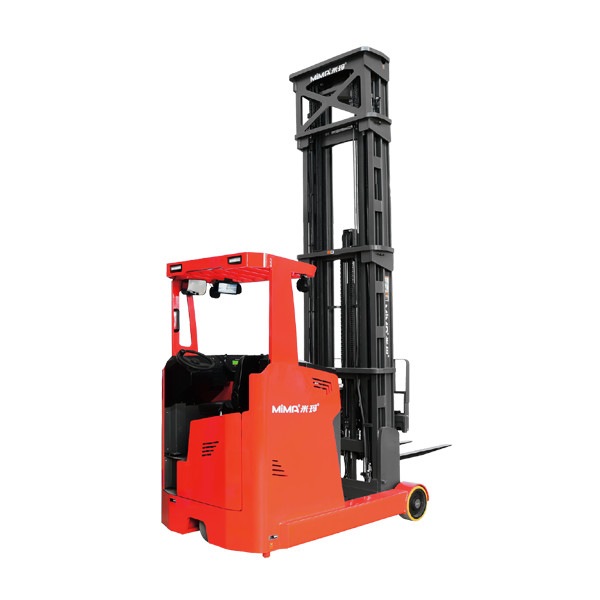

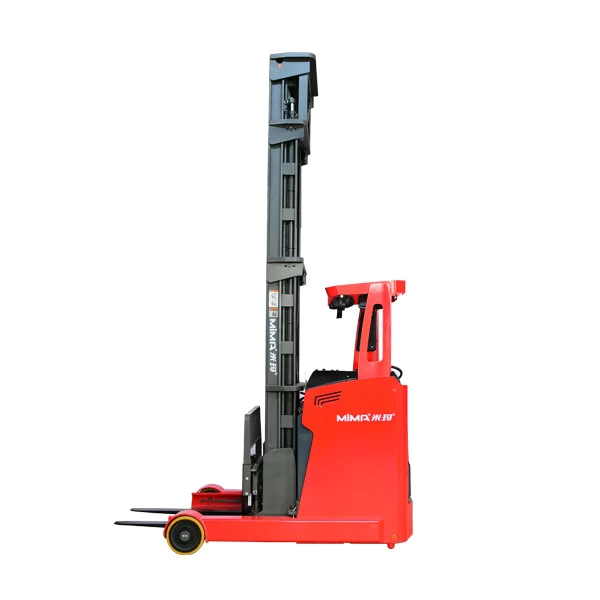

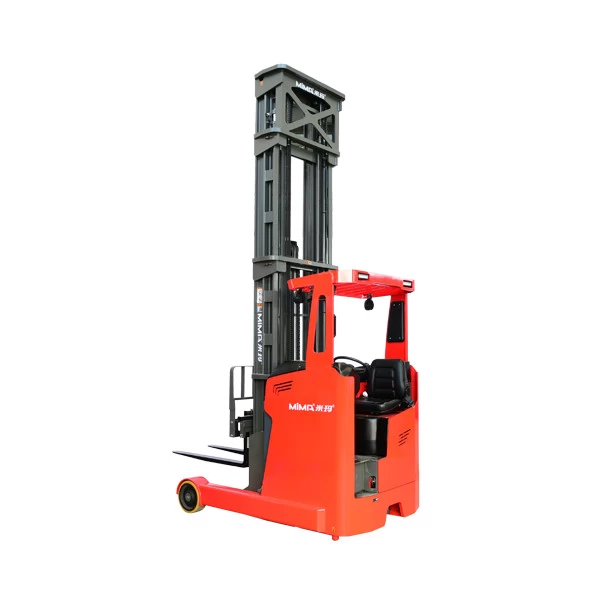

Electric Seated Reach Truck MFZ
Main Features:
1.Four Wheel Braking
Equipped with front and back wheel braking, with a better braking performance, which is suitable for using on the wed and frozen ground. All this can guarantee operator safety;
2.Ergonomics Design
Easy operation joystick design and multi-function display with wheel position, which can makes operation more comfortable and convenient;
Adjustable seat can provide operator with the most comfortable operation environment;
3.Excellent Weight-bearing Mast
No loading capacity loss within 6000mm, and excellent loading performance at super-high position;
4.Strong Endurance
Full AC system design, high-efficiency and energy-saving motors without carbon brush can meet multiple operation requirements under heavy working conditions.
Specifications:
|
Manufacturer
|
|
MiMA
|
MiMA
|
MiMA
|
MiMA
|
|
Model
|
|
MFZ16
|
MFZ16SQH
|
MFZ20
|
MFZ20SQH
|
|
Power type
|
|
Battery
|
Battery
|
Battery
|
Battery
|
|
Operation Type
|
|
Seated
|
Seated
|
Seated
|
Seated
|
|
Service weight（incl. battery）
|
kg
|
3250
|
4350
|
4000
|
4670
|
|
Rated capacity
|
Q(kg)
|
1600
|
1600
|
2000
|
2000
|
|
Load center
|
C(mm)
|
500
|
500
|
500
|
500
|
|
Lift height
|
h3(mm)
|
3000
|
6000
|
3000
|
6000
|
|
Fork dimension
|
l/e/s(mm)
|
1070/100/35
|
1070/100/40
|
1070/100/40
|
1070/100/40
|
|
Front overhang
|
x(mm)
|
220
|
205
|
215
|
205
|
|
Turning radius
|
Wa(mm)
|
1700
|
1872
|
1798
|
1872
|
|
Max. gradeability
|
|
10%
|
10%
|
10%
|
10%
|
10%
|
10%
|
|
Travelling speed ,laden/unladen
|
km/h
|
8.5/10
|
8.5/10
|
8.5/10
|
8.5/10
|
|
Lifting speed ,laden/unladen
|
mm/s
|
210/340
|
200/300
|
210/340
|
260/360
|
|
Lowering speed,laden/unladen
|
mm/s
|
300/250
|
300/250
|
300/250
|
300/250
|
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
FAQ:
Q1: Are you electric reach truck factory?
A1: Yes, we are the professional manufacturer of electric reach truck for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
