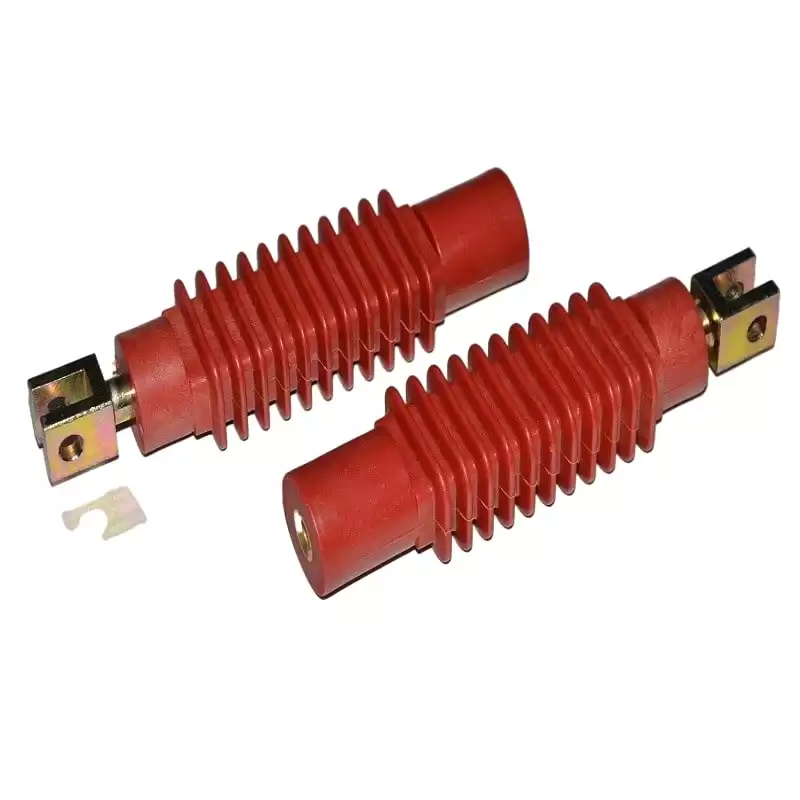

Electric Silicone Rubber Insulator Turn Arm

Silicone Rubber Insulator Turn Arm as insulation gasket and insulation sleeve isolation arm are insulating materials, the arm and ground contact are reliably insulated from each other.  The insulation structure is only simple insulation flat gasket and coaxial insulation bushing, not only very convenient processing, simple installation, can greatly save the purchase cost, improve assembly efficiency, at the same time, there is no insulation arm fracture risk, high reliability.



Electric Silicone Rubber Insulator Turn Arm


Electric silicone rubber insulator parts including drive shaft assembly and install the turn arm, installed moving contact knife in turn arm segment, assemble the shaft section along the or so direction outspread, assembly of the shaft axial ends respectively used for single-phase moving contact with adjacent cutter unit or install the corresponding connection shaft end connection head, left side connecting head and/or the right end connected to the socket structure,  The inner hole wall of the jack structure is provided with an inner spline structure, and the inner spline structure has a spline keyway evenly distributed along the circumferential direction, and the spline keyway is a shrinkage slot structure.


Using the shrinkage groove structure to form the raised lock card positioning, avoid the raised single-phase moving knife unit or installation shaft end appears large shaking, so that the single-phase moving knife unit is firmly connected, so as to effectively avoid the single phase moving knife unit buckle loose problem.

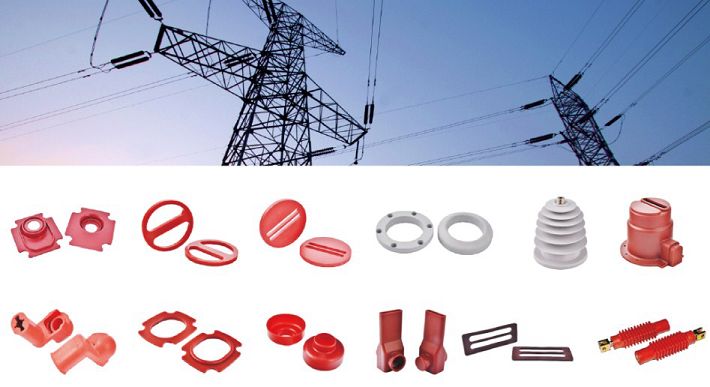

Below is our industrial electric power silicone rubber parts:


Electric silicone rubber parts


Experience: More than 20 years experience in rubber OEM production

Shape: According to customer's drawing

Package: PE bags, Cartons,Pallet

Payment Terms: T/T,L/C and so on.

Sample time: 25-30 days

Shipment Way: Vessel,Air,Express etc.

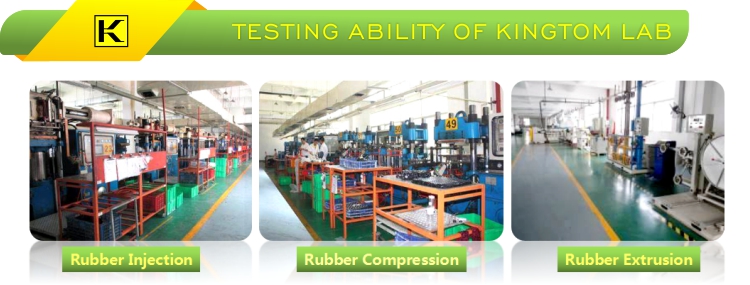

Kingtom Lab

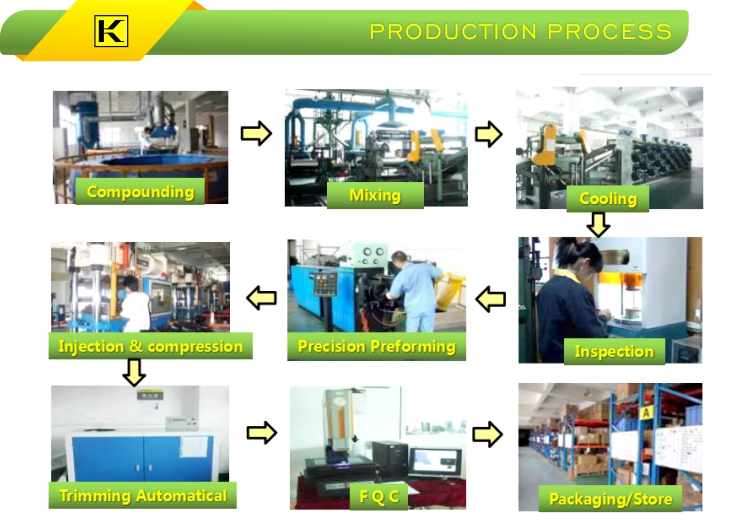

Production Process


Custom Colors

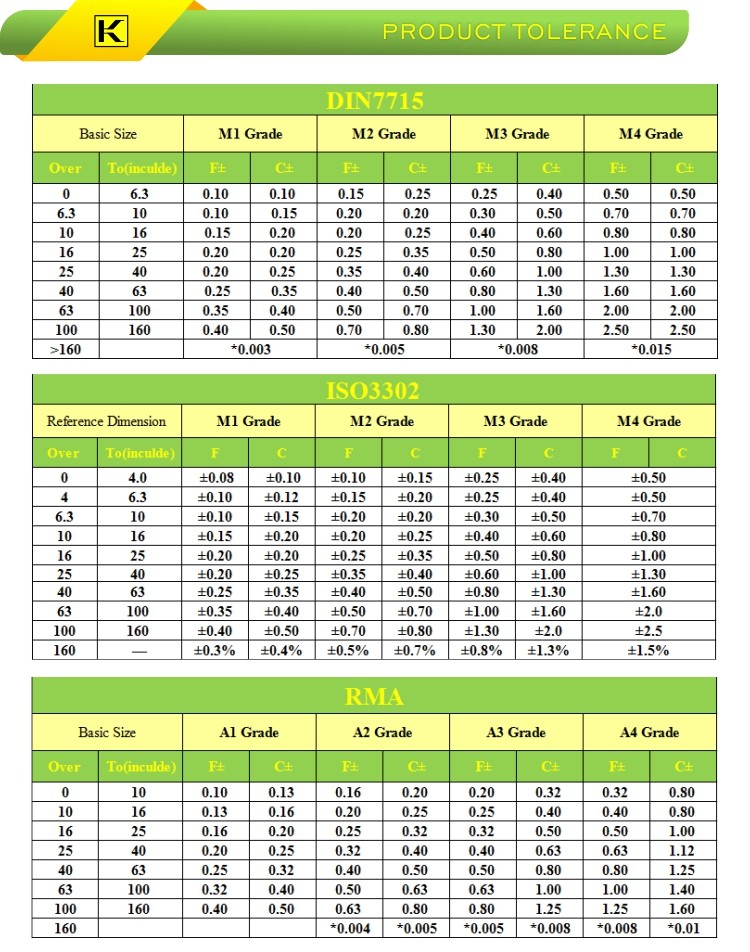

Products Tolerance


Certificates

FAQ


Q1.Which kind of product do you produce?

Kingtom:Rubber injection parts,rubber compression parts and rubber extrusion parts,rubber-metal parts,plastic parts.


Q2.What information do you need for making price?

Kingtom:1.2D/3D drawing,or samples photo with detail size.

2.Material And Material hardness

3.Detail quantity

4.Your other requirements like tolerence,surface treatment.

5.Product usage environment


Q3.I don't have 3D drawing,how should i do ?

Kingtom:You can send one sample to us,then we can produce as your sample.


Q4:How to make sure the quality?

Kingtom:Check the samples before mass production.

There is the detail inspection report and goods photos before shipping.


Q5.Do you provide samples?

Kingtom:Yes,samples is free and you just pay the express cost.


Q6.How is the delivery time?

Kingtom:It usually takes 10-30days.It depends on the orders.
