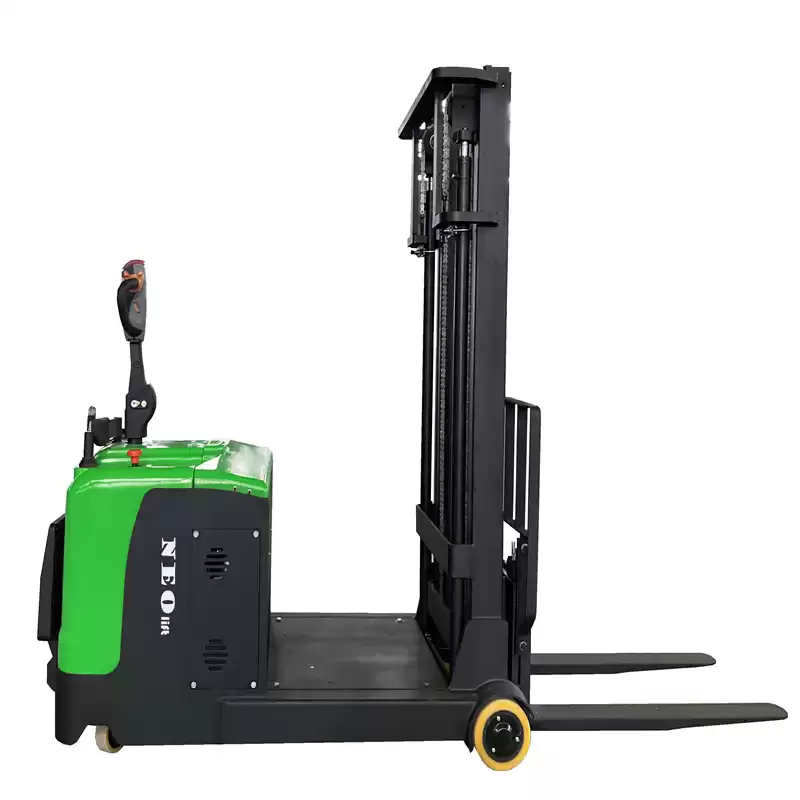

Electric Standing Type Counterbalance Pallet Stacker
Electric Counterbalance Pallet Stacker is a new generation of products developed for warehousing euipment. The range of loading capacity 1000-2000kg with max. lifting height 5000mm.Horizontal handling and stacking of medium cargo;Middle and long distance handling and stacking;It can also play a role in closed trays, low height of the tray from the ground, and no legroom at the bottom of the shelf.

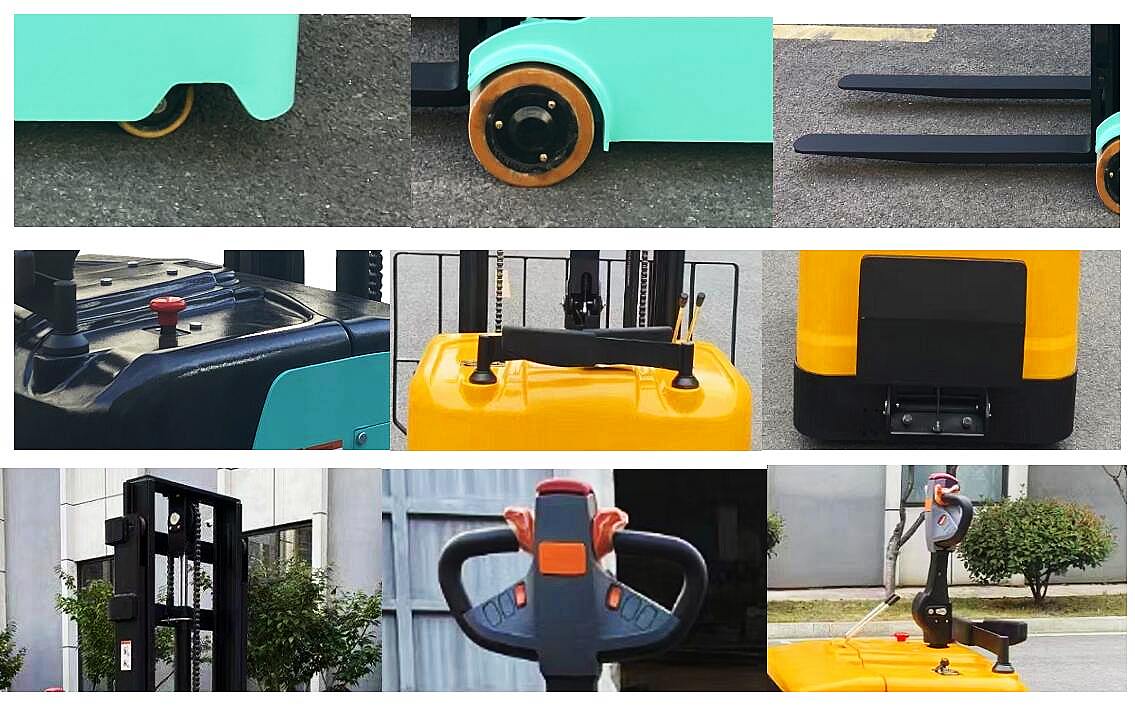

Features:
1. The AC motor is brushless and maintenance-free.
2.5 fulcrum low center of gravity design, good stability.
3. It has the function of anti-slip on the slope, emergency braking to ensure safety.
4. Install wings, when the wings are down, the speed of the vehicle will drop by 30%-40%, which increases the safety.
5. Detachable pedal design makes it easier to replace accessories.
6. The turning speed is limited to prevent the vehicle from turning over too fast.
7. It has the function of descending buffer. When the fork is less than a certain height from the ground, it will automatically decelerate to effectively protect the goods.

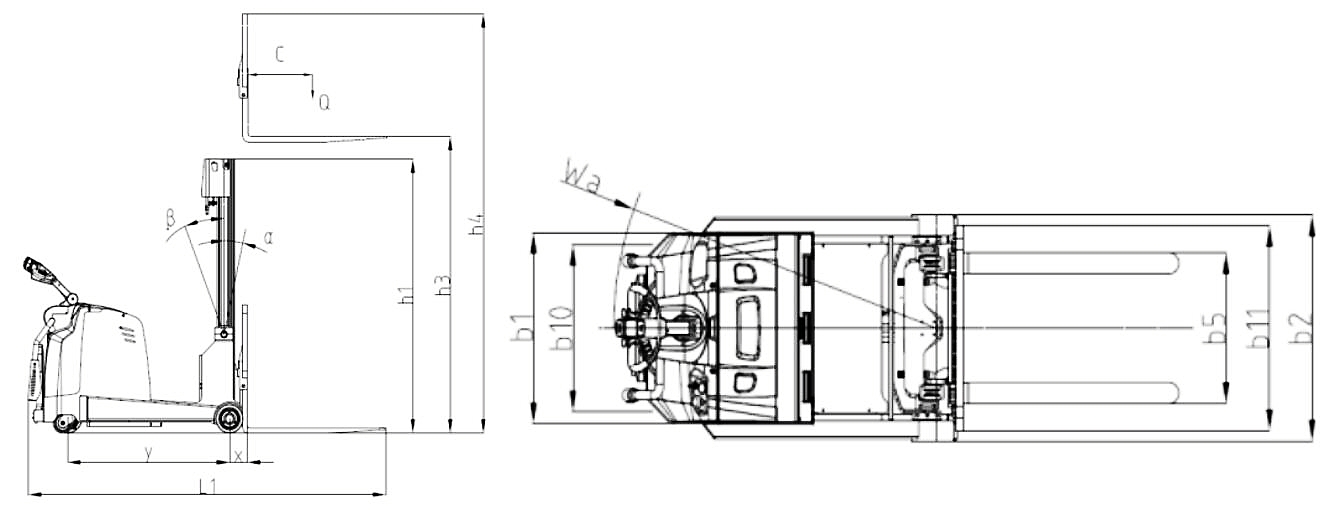

Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NSC16 |
NSC20 |
| Power type |
|
Battery |
Battery |
| Rated load |
kg |
1600 |
2000 |
| Service Weight(incl.battery) |
kg |
2300 |
2550 |
| Lift height |
mm |
3000 |
3000 |
| Fork size |
mm |
1070/100/35 |
1070/122/40 |
| Braking method |
|
Electromagnetic |
Electromagnetic |
| Drive motor power (S2-60min) |
kw |
1.5 |
2.5 |
| Lift motor power, (S3-15%) |
kw |
2 |
3 |
| Battery, voltage/rated capacity |
V/Ah |
24/210 |
24/270 |
| Battery weight |
kg |
185 |
235 |
| steering system |
|
Electric steering |
Electric steering |
| |

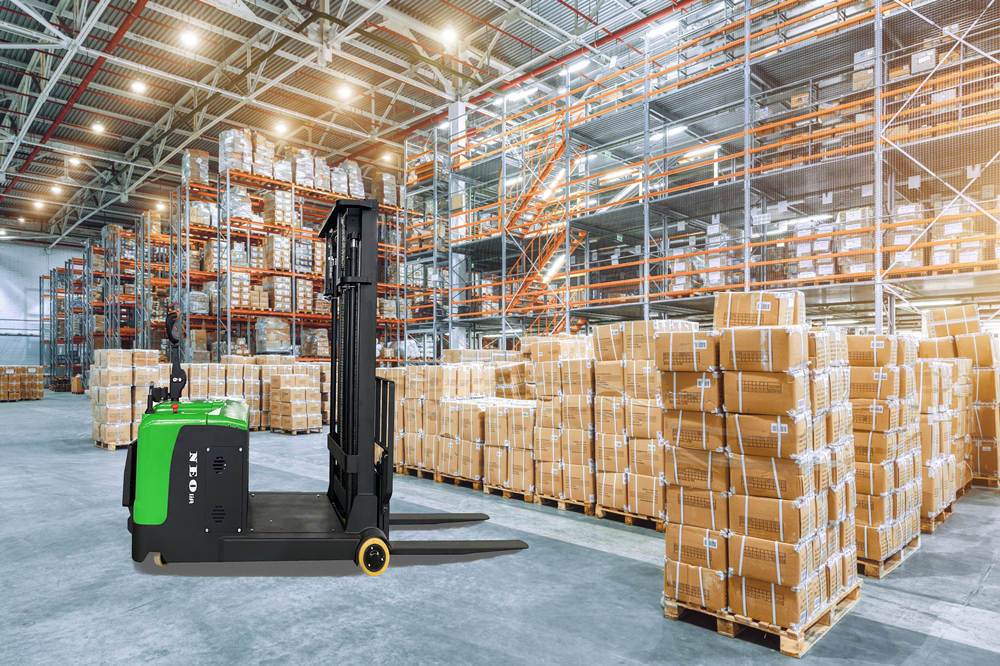

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
