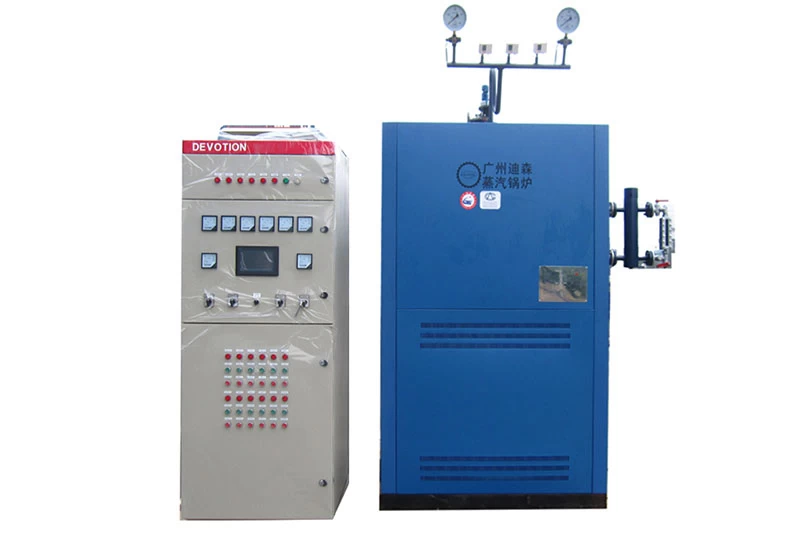

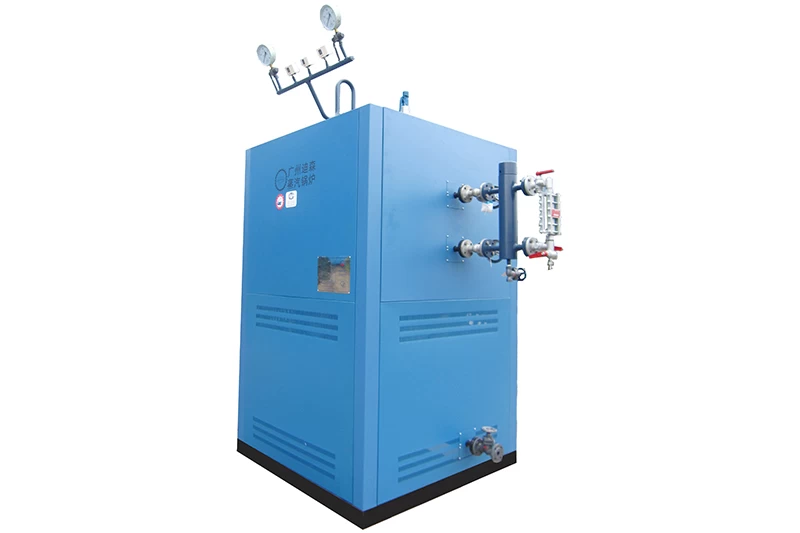

Electric Steam Boiler

For a DEVOTION Electric Steam Boiler, the water inside the boiler is heated as saturated steam via electric heating components.

It can be used together with steam-water heat exchanger to supply hot water for heating.

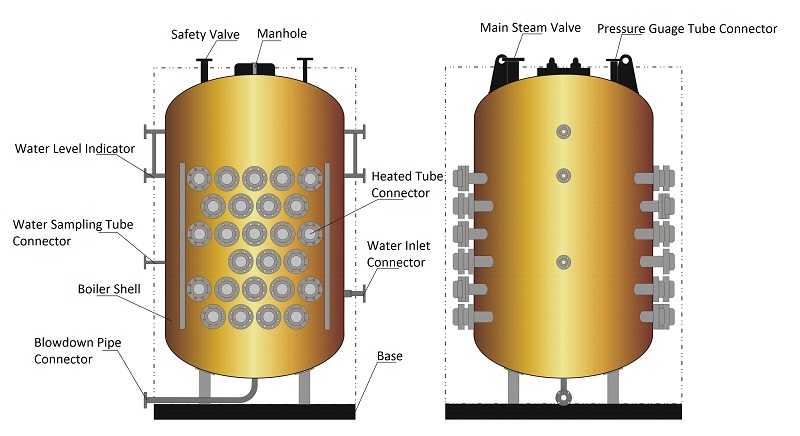

Electric Steam Boiler Structure

Features

• PLC programmable controller is adopted to automatically control the pressure and configurated with multiple safety protections on overload, short circuit, electric leakage, water shortage and default phase;
• High-quality electrical components are selected to ensure electric steam boilers run safely and operate easily.
• Through simple human-computer interface, the full automatic operation is realized. The boiler’s working condition parameters, equipment status and operation parameters are clear at a glance.
• Fuzzy control technology, reduces load fluctuations of heating network at the same time, maximum decrease the consumption of electricity and the heating efficiency is up to 99%

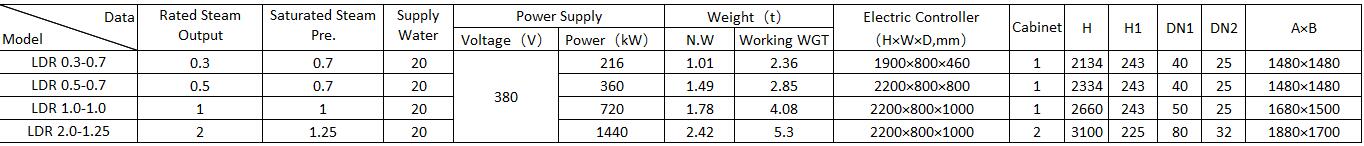

Electric Steam Boilers Technical Data and Installation Dimension

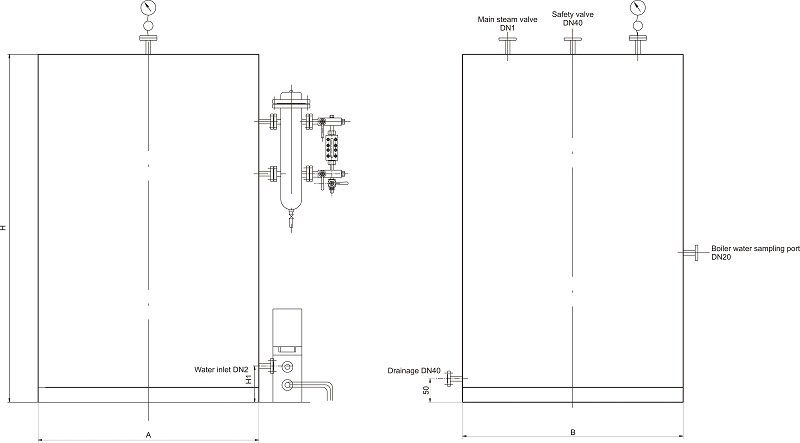

Electric Boilers Installation Diagram
