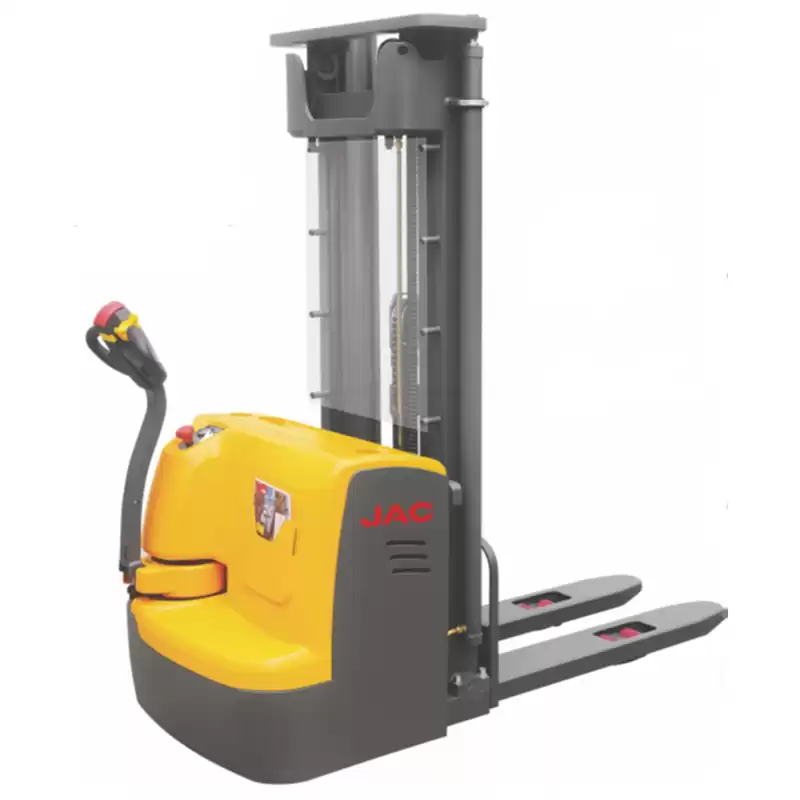

Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
1. Advantages:
• Advanced AC control system Intelligentized regenerative brake system.
• Multi-function display with BDI and fault code etc.
• Emergency reversing device.
• Auto deceleration system utilizes regenerative braking .
• Built-in pressure relief valve protects the trucks from overloads.
• Emergency power disconnect.
• Stepless speed control.
• With lifting limit switch to shut off pump motor at the max. lifting height.
• Standing driving motor system has a small turning radius. The motor structure is water-proof and dust-proof.
• CANbus technology reduces wiring complexity and increase reliability.
• Advanced AC control system with brushless motor .
• Auto deceleration system utilises regenerative braking .
• Side-way battery with roll-out system is very convenient for replacement.
2. Specification
|
Model
|
|
CDDW10-Ⅲ
|
CDDW12-Ⅲ
|
CDDW15-Ⅲ
|
|
Load capacity
|
Q(kg)
|
1000
|
1200
|
1500
|
|
Load centre distance
|
c(mm)
|
500
|
500
|
600
|
|
Load distance, centre of drive axle to fork
|
x(mm)
|
697
|
697
|
697
|
|
Fork height, lowered
|
h13(mm)
|
90
|
90
|
90
|
|
Tyre size, front
|
mm
|
φ250×70
|
φ250×70
|
φ250×70
|
|
Tyre size, rear
|
mm
|
φ80×70
|
φ80×70
|
φ80×70
|
|
Additional wheels(dimensions)
|
mm
|
φ150×60
|
φ150×60
|
φ150×60
|
|
Wheels, number front rear(x=driven wheels)
|
|
1x+1/4
|
1x+1/4
|
1x+1/4
|
|
Height, mast lowered
|
h1(mm)
|
2087/1837/2087/2237
|
2087/1837/2087/2237
|
|
Free lift(option 2500~3500mm)
|
h2(mm)
|
~
|
~
|
|
Max. lift height
|
h3(mm)
|
1600/2500/3000/3300
|
1600/2500/3000/3300
|
|
Height,mast extended
|
h4(mm)
|
2087/3087/3587/3887
|
2087/3087/3587/3887
|
|
Height of tiller in drive position min./max.
|
h14(mm)
|
670/1300
|
670/1300
|
670/1300
|
|
Overall width
|
b1(mm)
|
1965
|
1965
|
2045
|
|
Overall length
|
l1(mm)
|
792
|
792
|
878
|
|
Length to face of forks
|
l2(mm)
|
820
|
820
|
820
|
|
Fork dimensions
|
s/e/l(mm)
|
60/170/1070(1150)
|
60/170/1070(1150)
|
60/170/1070(1150)
|
|
Width overall forks
|
b5(mm)
|
570/695
|
570/695
|
570/695
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
2370
|
2370
|
2450
|
|
Turning radius
|
Wa(mm)
|
1525
|
1525
|
1605
|
|
Travel speed, laden/unladen
|
Km/h
|
5.3/5.6
|
5.3/5.6
|
5.8/6
|
|
Lift speed, laden/unladen
|
m/s
|
0.06/0.13
|
0.06/0.13
|
0.06/0.13
|
|
Lowering speed, laden/unladen
|
m/s
|
0.13/0.10
|
0.13/0.10
|
0.13/0.10
|
|
Battery voltage,nominal capacity K5(Duplex Mast)
|
V/Ah
|
24/120
|
24/120
|
24/200
|
|
Battery voltage,nominal capacity K5(Triplex Mast)
|
V/Ah
|
~
|
~
|
~
|
|
Battery weight
|
kg
|
90
|
90
|
160
|
|
Battery dimensions l/w/h
|
mm
|
753x178x240
|
753x178x240
|
800x254x320
|
|
Service weight(with battery)
|
kg
|
730/750/770/795
|
750/770/790/815
|
760/810/835/860
|
