Feature
1.Electrical wire names
2.PVC Insulated Electric Wire Cable
3.CCC IEC CE Certification
Parameter
1.Voltage Uo/U 450/750V 300/500V
2.Max. Permissible Continuous Operation Temperature of The Conductor: 70°C
(Can be of flame-retardant, 90°C or 105°C),
3.The Ambient Temperature Under Installation Should Not Below 0°C
4.Impedance (ohms): 100±2ohm
Specification
Type: Solid Type, Flexible Type, Stranded Type
Strandard: IEC60332 GB/T5023-2008
Voltage: 300/500v 450/750v
Specification: BV BVV BVR Electric Wire 2.5mm2, 1.5mm2,etc
Length: 100M 200M 300M 500M

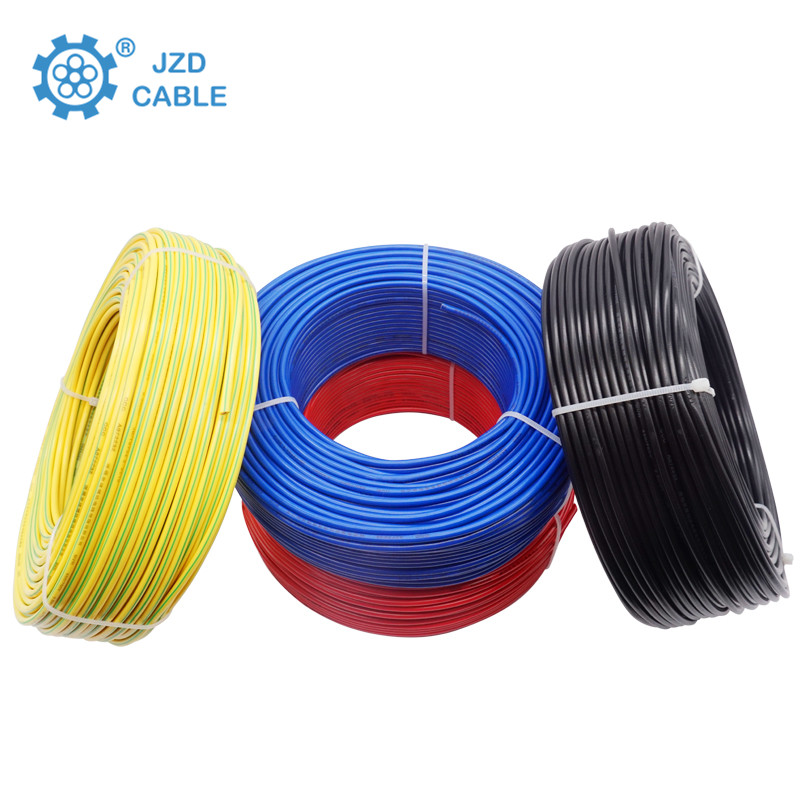

Single Core PVC Insualtion House Electric Wiring ( Can Make as Double insulation Jacket)
|
Standard of some wires(accept customization,more size pls feel free to contact us)
|
|
Type
|
Cross Section(mm²)
|
Conductor Size (No. of Cores/Diameter))
|
Rated Voltage
|
Nominal insulation
Thickness(mm)
|
Reference Weight(kg/km)
|
Application
|
|
Solid type
|
0.5
|
1/0.80
|
300/500V
450/750V
|
0.6
|
8
|
Solid,Hard,Suitable for fixed installation
|
|
0.75
|
1/0.97
|
0.6
|
11.4
|
|
1
|
1/1.13
|
0.6
|
15.2
|
|
1.5
|
1/1.38
|
0.7
|
21
|
|
2.5
|
1/1.78
|
0.7
|
32
|
|
4
|
1/2.25
|
0.8
|
47
|
|
6
|
1/2.76
|
0.8
|
67
|
|

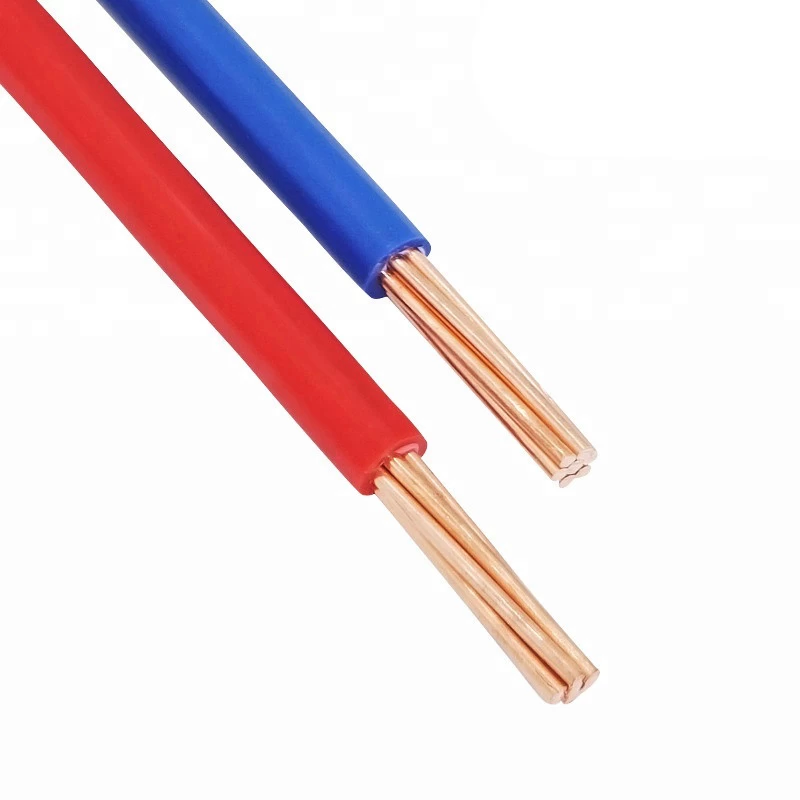

Stranded Type
|
1.5
|
7/0.52
|
0.7
|
22
|
Stranded
Flexible house
Wiring
Suitable for
indoor
applicant
|
|
2.5
|
7/0.68
|
0.7
|
35
|
|
2.5
|
19/0.40
|
0.8
|
34
|
|
4
|
7/0.85
|
0.8
|
50
|
|
4
|
19/0.52
|
0.8
|
51
|
|
6
|
7/1.04
|
0.8
|
71
|
|
6
|
19/0.64
|
0.8
|
72
|
|
10
|
7/1.35
|
1
|
118
|
|
10
|
49/0.52
|
1
|
127
|
|
16
|
7/1.70
|
1
|
177
|
|
16
|
49/0.64
|
1
|
184
|
|
Flexible Type
|
1.5
|
30/0.25
|
0.7
|
22
|
Ultra Flexible
Soft Conductor,
Suitable for small
power equipment
instrument
|
|
2.5
|
49/0.25
|
0.8
|
34
|
|
4
|
56/0.30
|
0.8
|
49
|
|
6
|
84/0.30
|
0.8
|
70
|
|
10
|
77/0.40
|
1
|
117
|
|
16
|
119/0.40
|
1
|
168
|
|
25
|
189/0.40
|
1.2
|
265
|
|
...
|
|
|
|
Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5.贵公司是否接受OEM生产？
是的，可以打印您的公司名称，我们甚至定制质量卡来推广您的公司。
