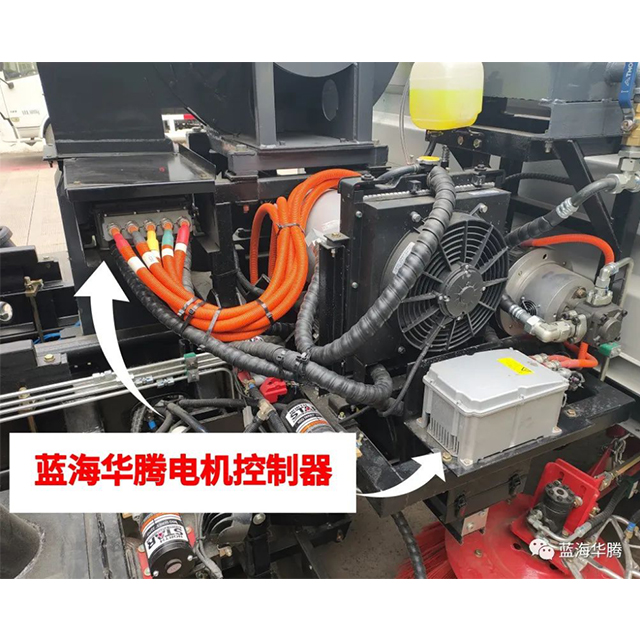

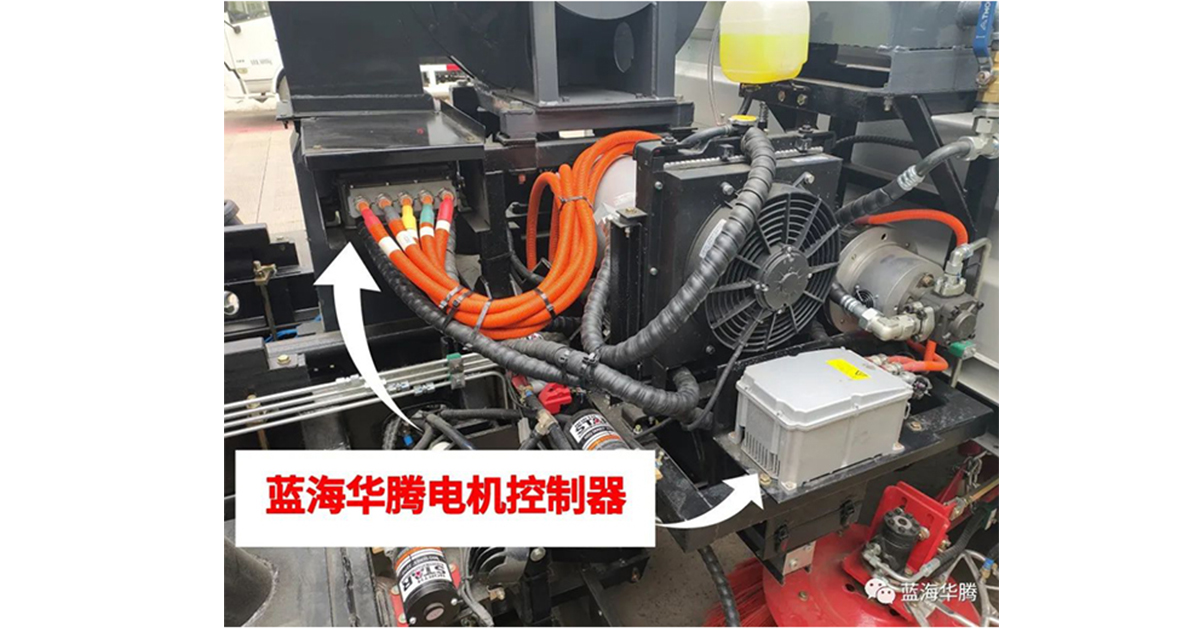

Electrical Bus motor speed controller (9-18m)

Long-term Safe and Reliable Work

From 2009 to 2012, more than 6,000 MCU controllers of electric vehicle were running in nearly 20 cities including Hangzhou, Qingdao, Nanjing, Suzhou, Nantong, Xiamen, Haikou, Urumqi and Tianjin. The new energy bus worked safely and reliably for 6-8 years. The running mileage of each electric vehicle reaches 500,000 -700,000 kilometers.


  • TransportationExpress · Sea freight · Land freight · Air freight
  • Delivery Time14-30 working days for customized EV motor controller
  • Warranty24 Months
  • CustomizedYES
  • Term of paymentT/T, L/C, D/P
  • Sample freight payerBuyer
  • Sample provideYES
  • PackageStandard Export Package Carton/Wood
  • AvailabilityOEM/ODM, Minmum Order Request
  • Place of OriginChina
  • Shipping PortShenzhen
  • CertificationCE, EAC, ISO9001, OHSAS18001, TS16949, SGS

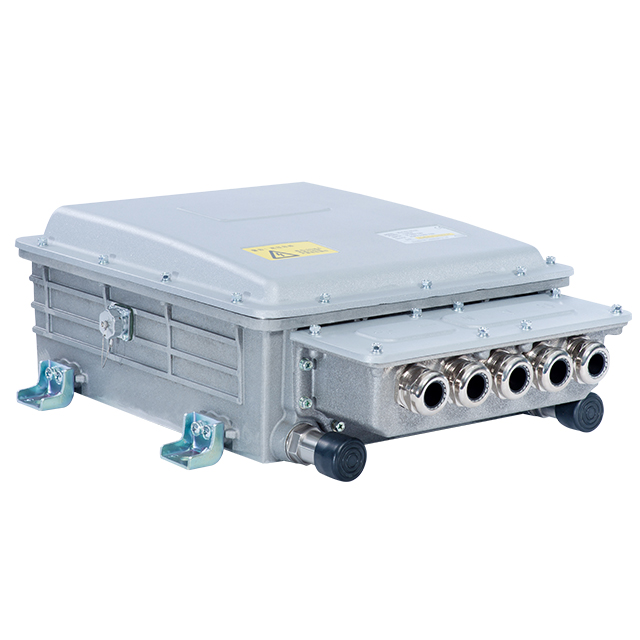

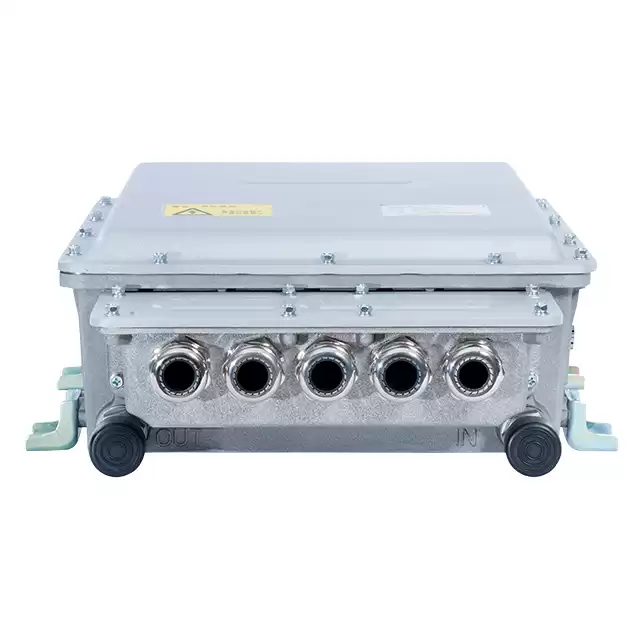

V6-H-4D355G Master drive motor controller


Technical Parameter

Adaptable motor type

Permanent magnet synchronous motor、Three phase asynchronous motor

Applicable vehicle type

9-18m Passenger CarRail Car、Logistics VehicleHeavy Truck

Product type

V6-H-4D355G

Rated input voltage

DC 540V

Rated power

355kW

Input voltage range

DC 350V~750V

Rated output current

541A

Maximum output current

975A

Output frequency range

0~1000Hz

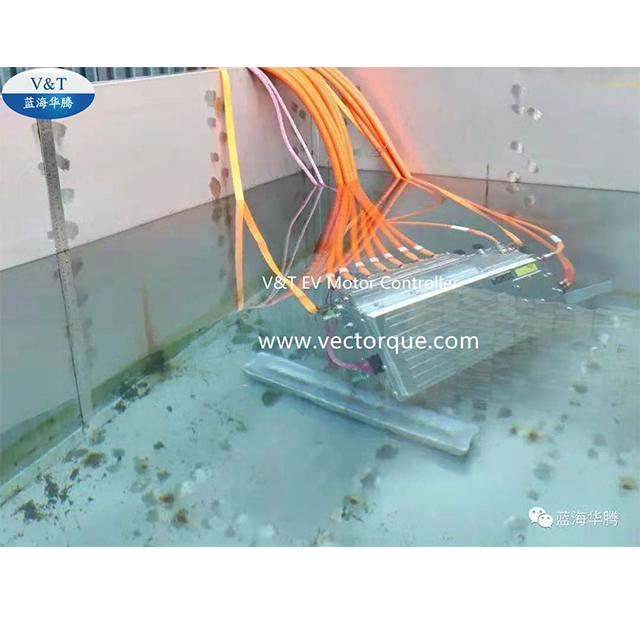

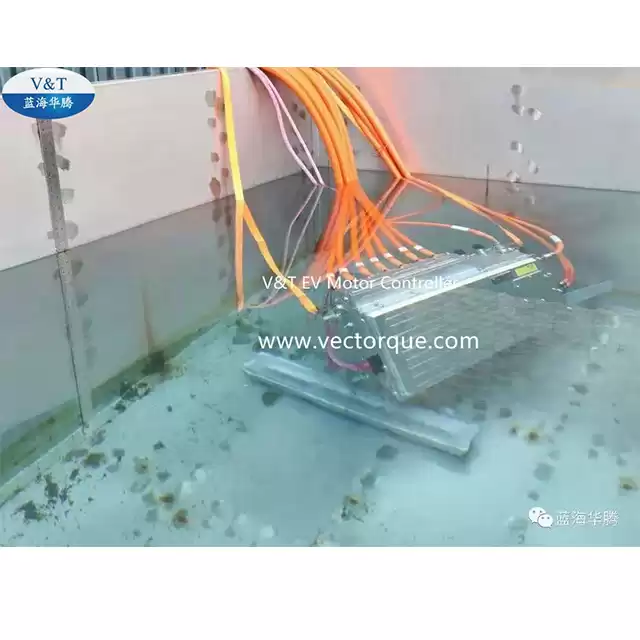

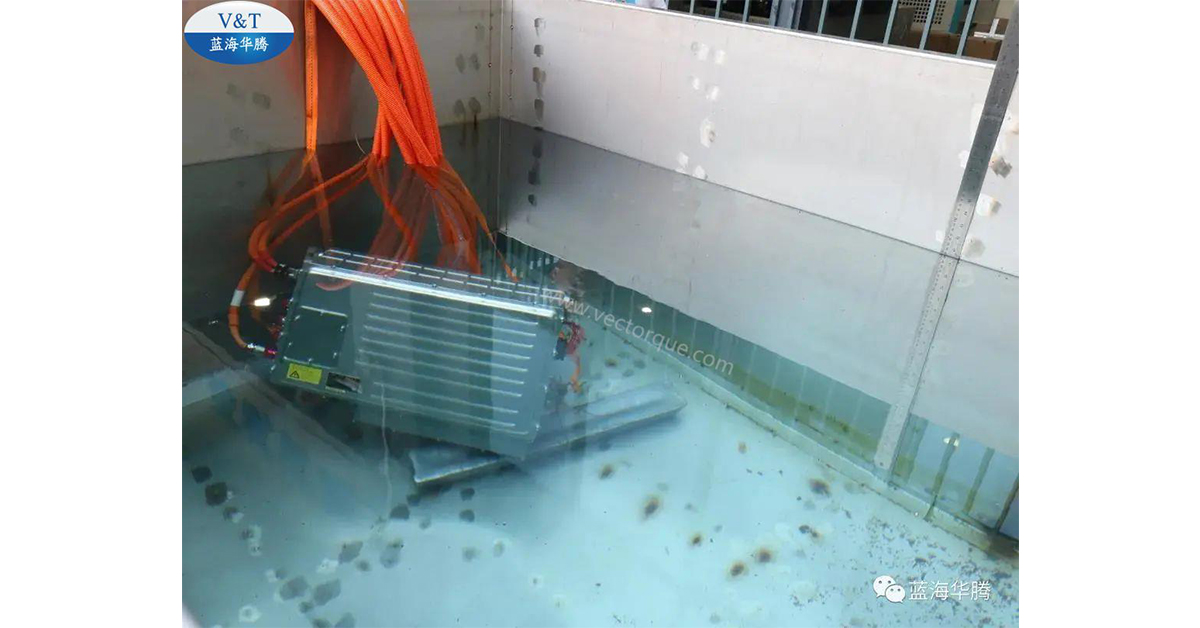

Protection level

IP67

Cooling type

Water cooling

Outline dimension

552*540*177(mm)

Weight

25.5kg

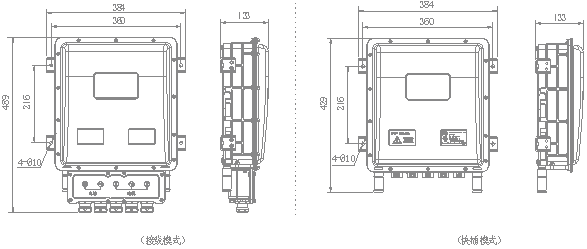

Outline dimension

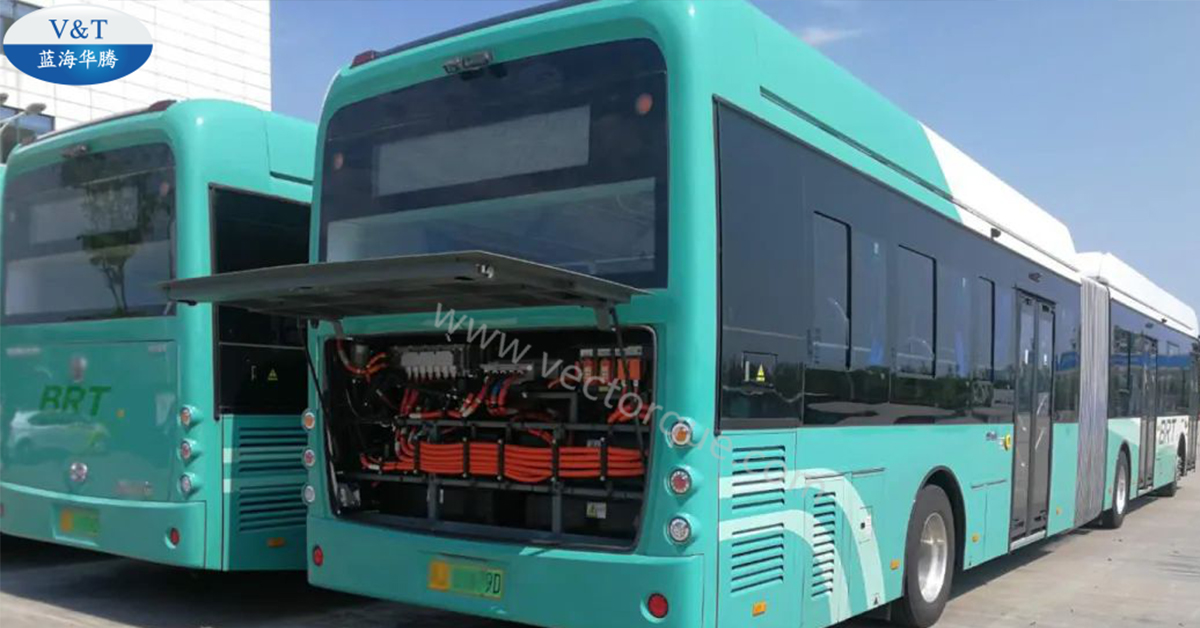

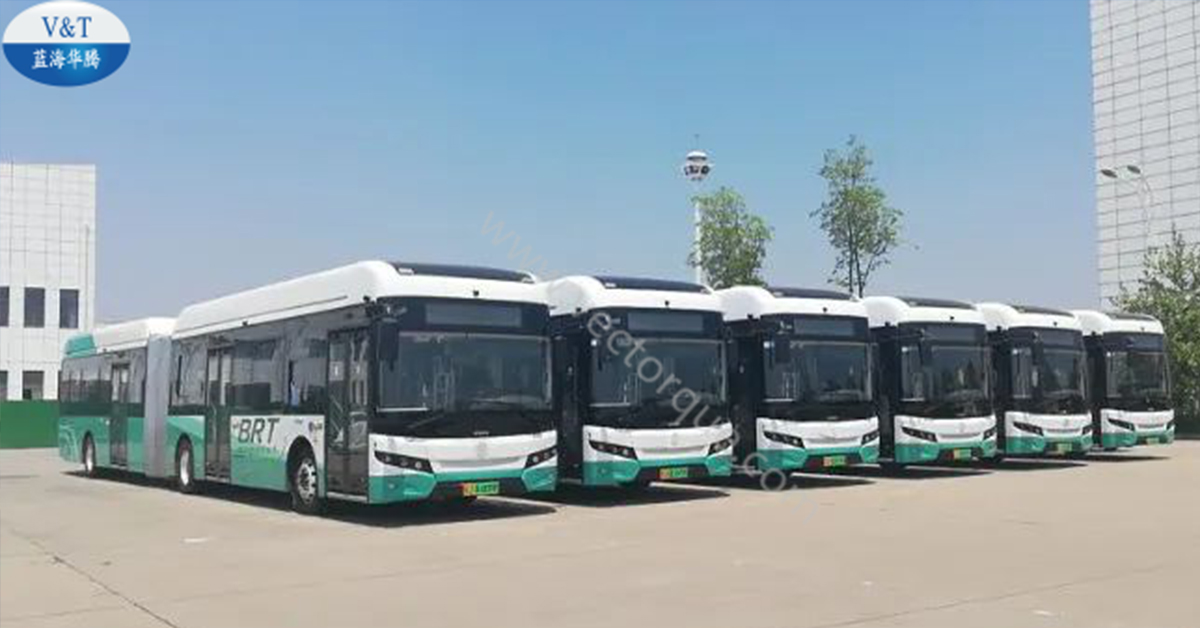

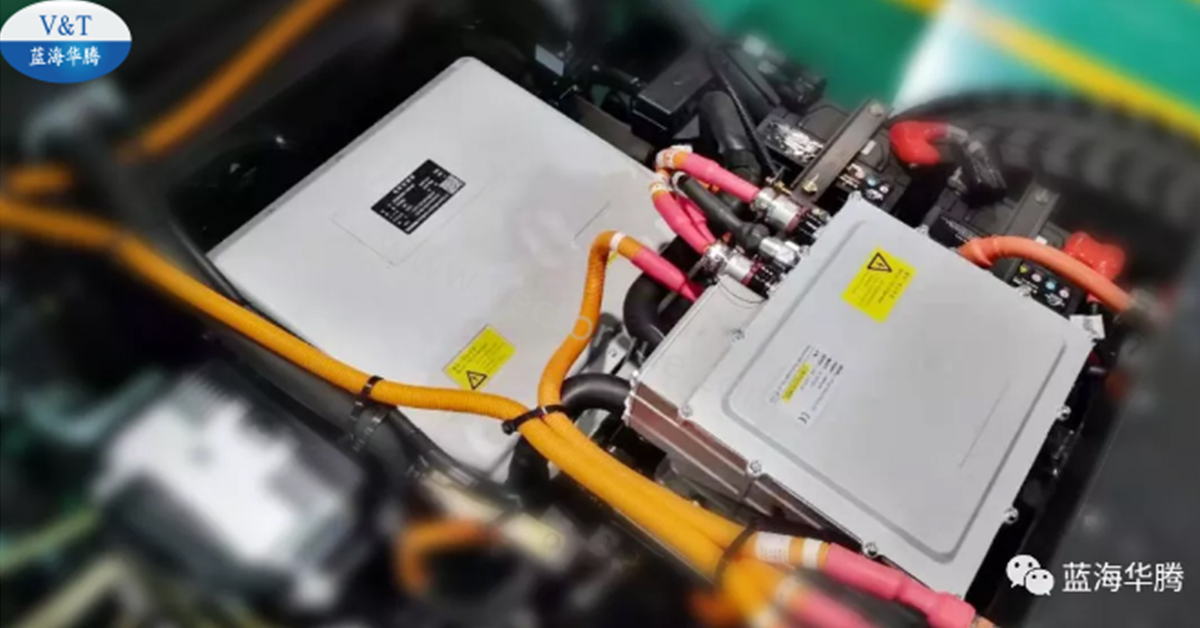

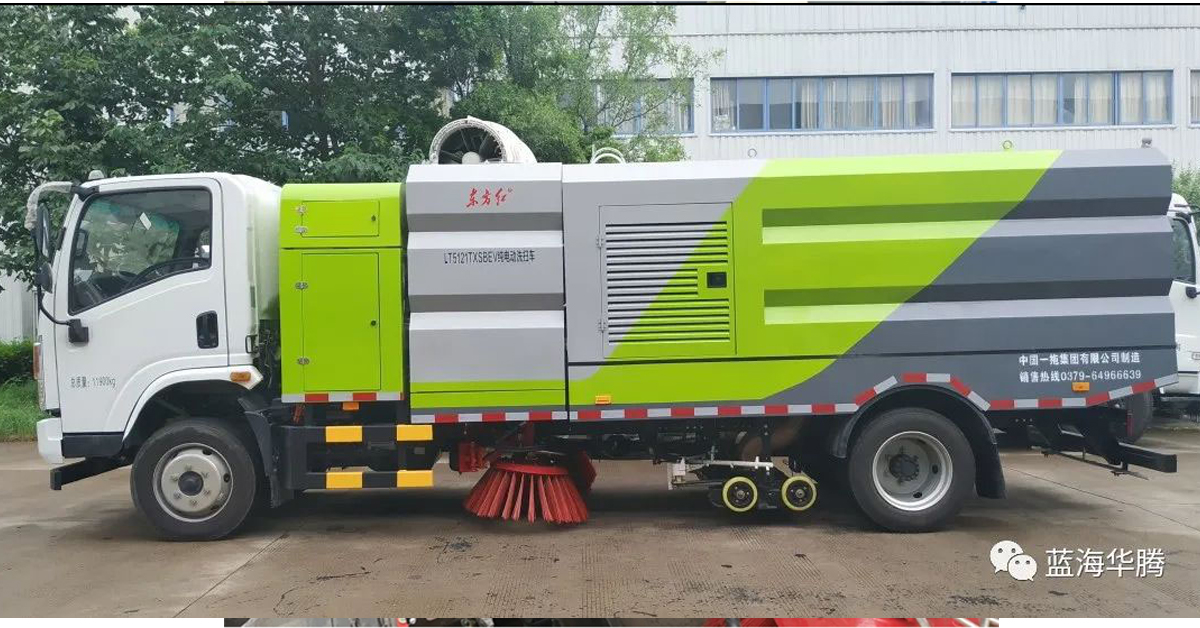

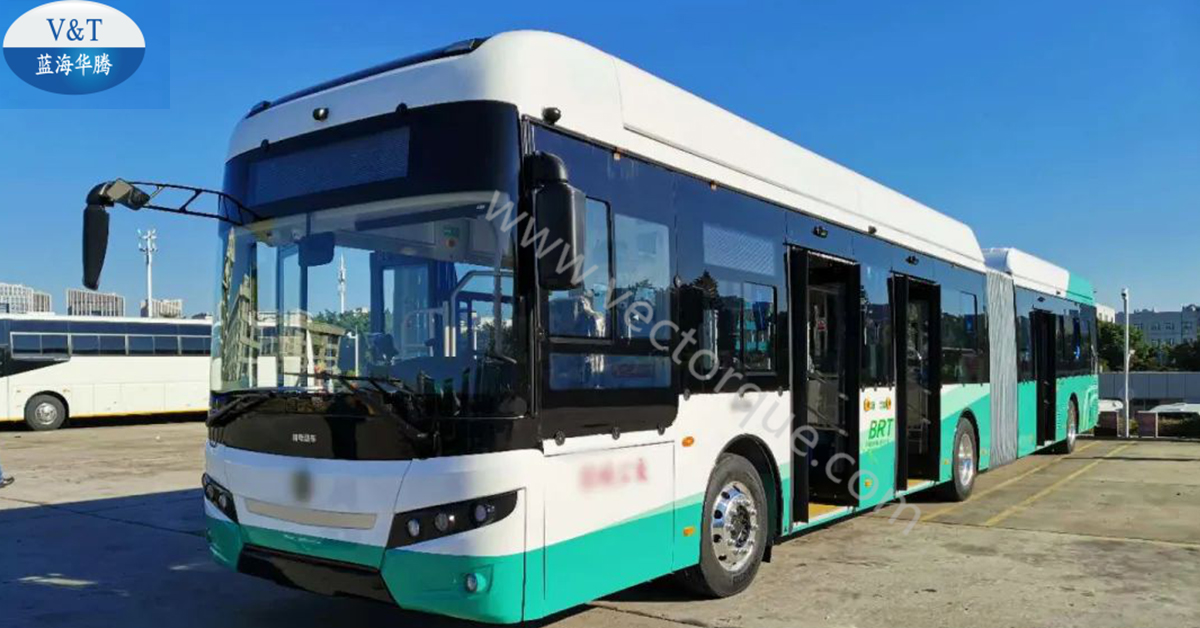

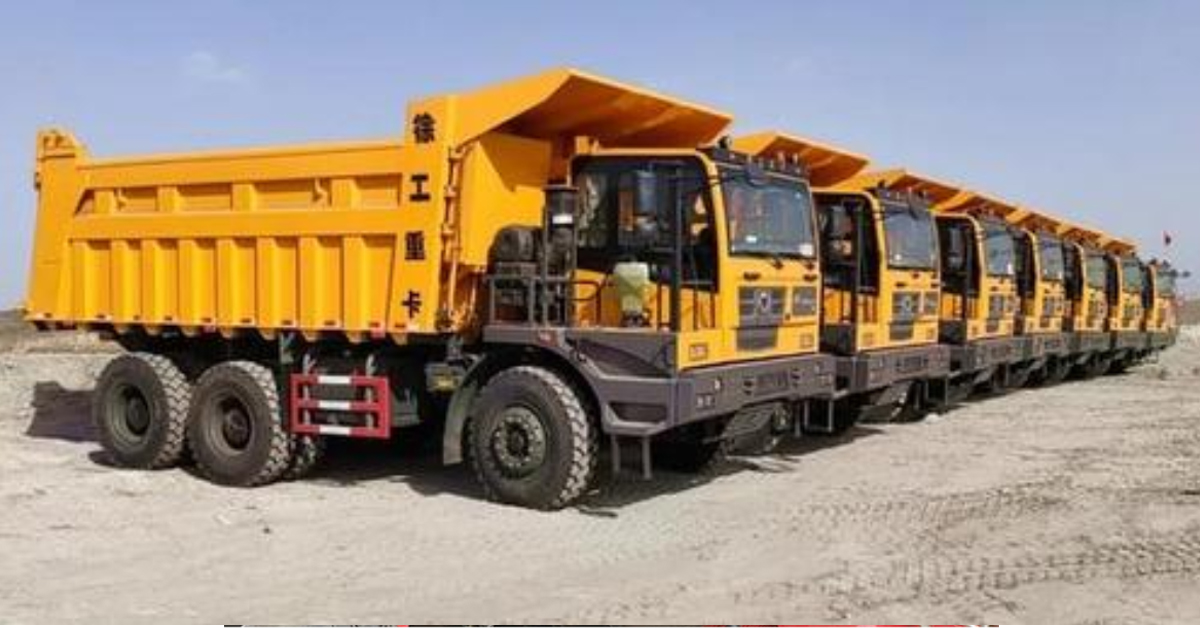

Application












Shenzhen V&T Technologies Co.,Ltd. is committed to R&D and manufacturing of Electrical Bus motor controller. Please browse online now for more parameter information.
