Our Ashare low-voltage equipment covers GGD, GCK, GCS, GGJ, GDF fixed partition, MNST, 8PT Siemens authorization, XL-21 power cabinet, XL distribution box, XM lighting distribution box, XC metering box, JP low-voltage integrated distribution box , XFW low voltage cable branch box, DXW terminal box.

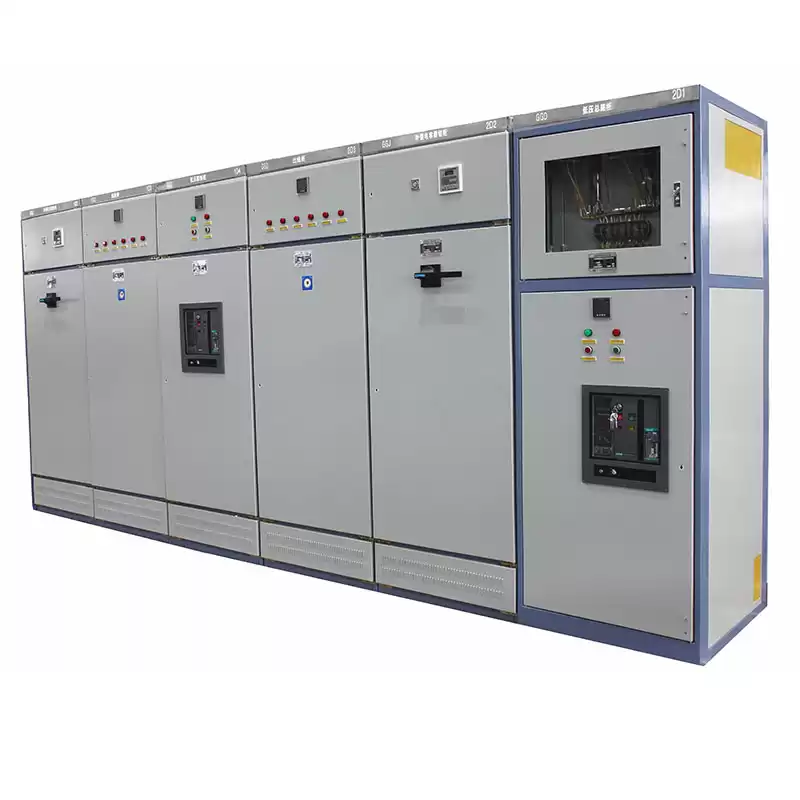

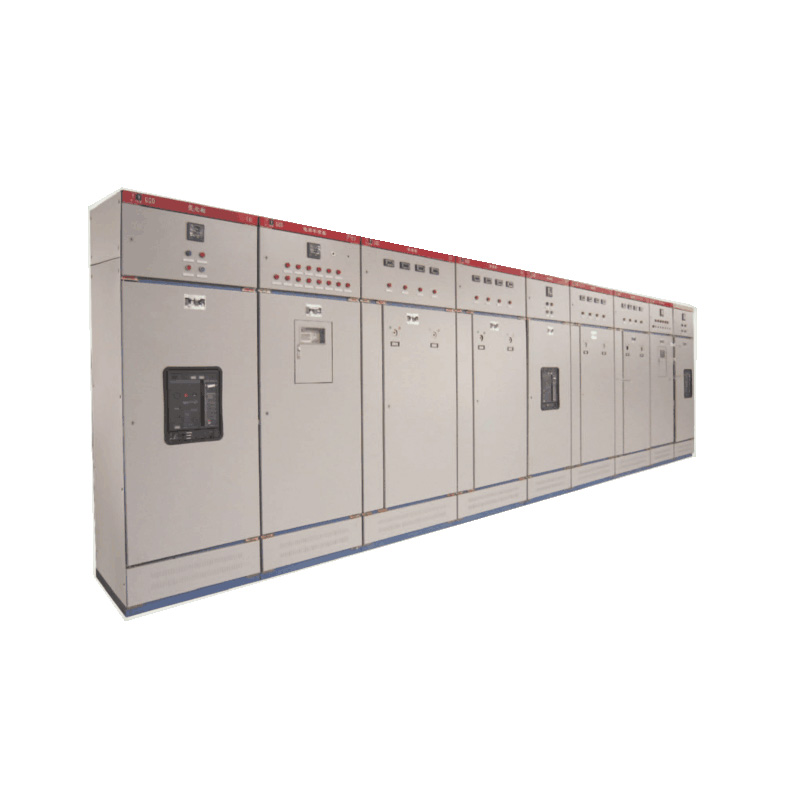

In the design of GGD cabinet, the heat dissipation problem in the running of the cabinet is fully considered. There are different number of heat sink holes at both ends of the cabinet, so that the sealed cabinet form a natural air duct from bottom to top, to achieve the purpose of heat.
GGD cabinet is designed according to the requirement of artistic modelling of modern industrial product, use golden section ratio designs the appearance of cabinet, make the whole cabinet beautiful and elegant.
The cabinet door is connected with the cabinet body by the movable hinge of rotating shaft, which is convenient for installation and disassembly. The folding edge of the door is embedded with a rubber, which can prevent the door from direct collision with the cabinet body and improve the protection grade of the door.
The GGD cabinet selects HD13BX and HS13BX rotary operation knife switch, which makes the cabinet operation door can be opened, easy to manufacture and maintenance.
The top cover of the cabinet can be removed when needed, Easy to assemble and adjust the main bus line on site. The four corners on the top of the cabinet are equipped with lifting rings for lifting and installation
|
Item
|
Data
|
|
Rated operational voltage(V)
|
AC 380 (400)、660 (690)
|
|
Rated voltage of auxiliary circuit（V）
|
AC 220、380 (400)
DC 110、220
|
|
Rated frequency（Hz）
|
50/60
|
|
Rated insulation voltage（V）
|
660 (690)
|
|
Horizontal bus rated current（A)
|
≤3150A
|
|
Main bus rated short-time withstand current（kA/1s)
|
15、 30、 50
|
|
Bus rated peak withstand current（kA)
|
30、 63、 105
|
|
Dielectric test voltage（V/1 min)
|
2500
|
|
Bus
|
Three-phase four-wire system
|
A、 B、 C、 PEN
|
|
Three-phase five-wire system
|
A、B、C、PE、N
|
|
IP grade
|
Protect against solid foreign matter with a
diameter of no less than 2.5mm
|
IP30
|
1. Normal working environment:
Switchgear should be installed in a clean, non-corrosive, non-strong vibration or impact, dry and well ventilated room.The altitude ≤ 2000m.If altitude more than 2000m, the equipment should be operated with corresponding capacity reduction.
Atmospheric conditions: the air is clean, the relative humidity does not exceed 50% at the highest temperature, and higher phase humidity is allowed at lower temperatures (e.g., 90% at +20°C), but it should be considered that temperature changes may occasionally produce condensation, so the device should increase ventilation or heating measures.
Installation inclination shall not exceed 5 degrees;
2. Environment temperature:
Maximum air temperature +40°C;
24 h maximum mean temperature +35°C;
Minimum temperature -5°C.
When the equipment is used above the ambient temperature, capacity reduction operation shall be considered.
Q: Are you the electrical power distribution system manufacturer or trader?
A: We are both manufacturer & trader. We have our own manufacturer named TIANYI TONGYI ELECTRIC CO.,LTD, who have 27 years experience in electric industry. It covers an totally area of 117,000 m2 with 300 employees, also is a qualified supplier of China National Nuclear Corporation(CNNC) and main supplier for State Grid & China Southern Power Grid.
Q: What is your after-sales service?
A: We always provide free online service and technical support within 24 hours. 18 months warranty for customers.
Q: What is your delivery time?
A: Normally 25~35days. It depends on the order quantity and season. We have very strong capacity to produce top quality products, please inquiry us if you have any questions.
Q: What is the quality warranty time?
A: We have quality certificate CCC, CQC, ISO9001, CE ... Meanwhile, we can provide 18 months warranty for our products. Free online service and technical support within 24 hours is always provided to our customers.
Q: Do you accept ODM and OEM electrical power distribution system?
A: Yes. We have professional R & D teams to update and develop the latest technology. We also can support ODM or OEM, please send us details drawing to discuss.
Q: What is your payment terms?
A: Generally there are two payment terms:
a) 30% advance payment via T/T as a deposit, balance 70% against the shipping documents
b) Irrevocable L/C at sight
Q: If I want to visit you, how to go?
A: Our factory is located in Luoyuan County, Fuzhou City. Details address is Songshan Area, Taiwan Investment Zone, Luoyuan County, Fuzhou City, Fujian Province,China.
a) The nearest airport is Fuzhou Airport, if you come by air, please arrive in Fuzhou Airport, it takes 1 hour from the airport to our factory
b) The nearest train station is Luoyuan Station, if you come by train, please arrive in Luoyuan Station, it takes only 5 minutes to our factory.
Anyway, please contact us in advance, we will send the car to the airport or train station to pick you up.Sincerely welcome you to come and visit us.
Q: Do you need electrical power distribution system agents?
A: Yes, we welcome you to be a partner. Welcome to contact us for more information.
