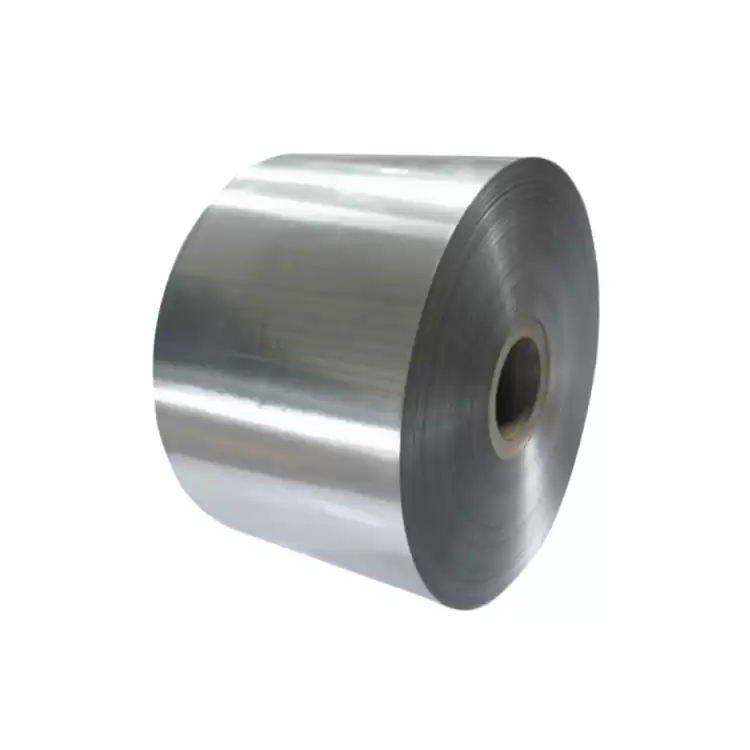

Electrical Steel Coil

Electrical steel is mainly divided into two categories: grain oriented electrical steel and grain non-oriented electrical steel. We supply high quality, various grades of non-oriented and oriented electrical steel sheets, coils. Mainly used as the iron core of various motors, generators and transformers.



CRNGO/Cold-Rolled Electrical Non-Oriented Steel Strip/Silicon Steel



Non Oriented Electrical Steel Sheet Details:

Standard: GBT2521, IEC404-8-4, JISC2552, ASTMA677M, EN10106
Grade: B50A470, 50WW800, 35WW270, 50AW800, 50SW800, 350-50-A5, 35A440, 47F370M, M290-50A5, etc.
P1.5/50: 2.3-10w/kg
J2500: 1.49-1.62 (50HZ or 60HZ)
Thickness: 0.35mm/0.5mm/0.65mm
Width: 20mm-1250mm
Coils weight: 0.5-8tons
Coils inner diameter: 508mm/610mm
Packing: waterproof paper and steel strip, or according to request

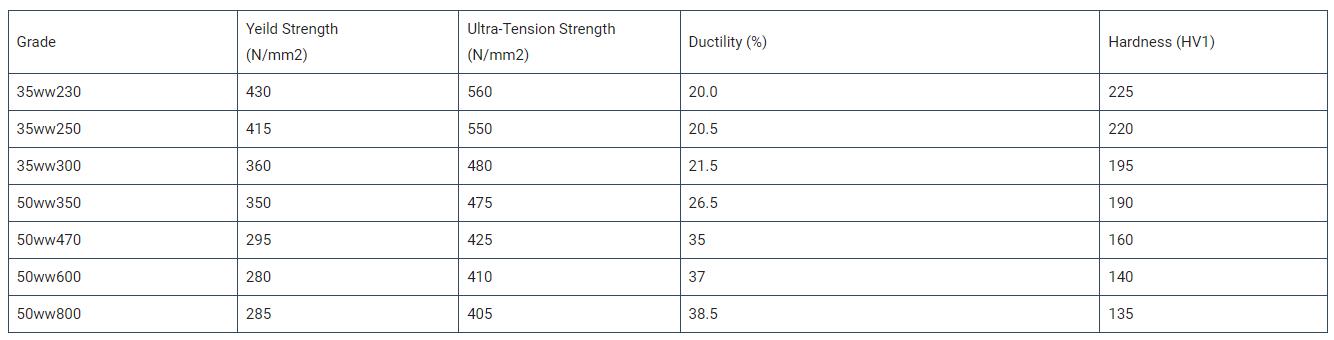

Typical Mechanical Properties:

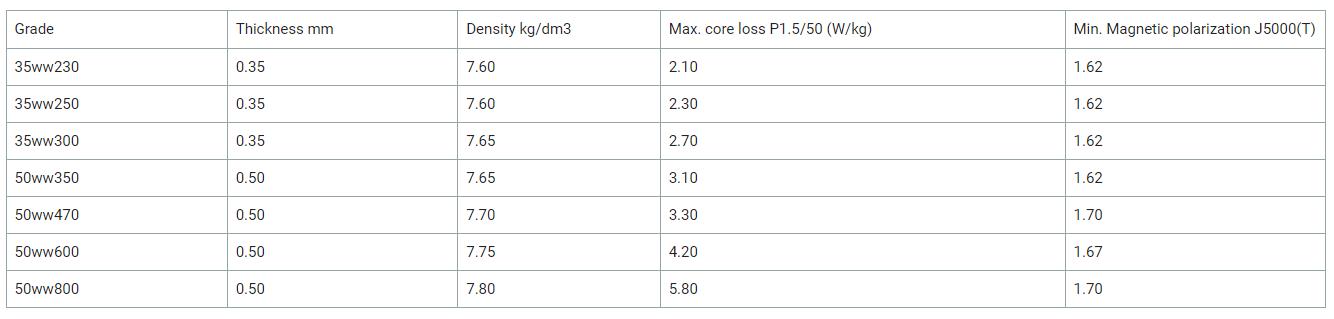

Standard Magnetic Properties:


Grain-oriented electrical steel coil and sheet

Grain-oriented Electrical Steel Coil Details:

Thickness mm: 0.18,0.20,0.23,0.27,0.30,0.35

Width: 20mm-1200mm

Coils weight: 0.5-8tons

Coils inner diameter: 508mm

Packing: waterproof paper and steel strip, or according to request

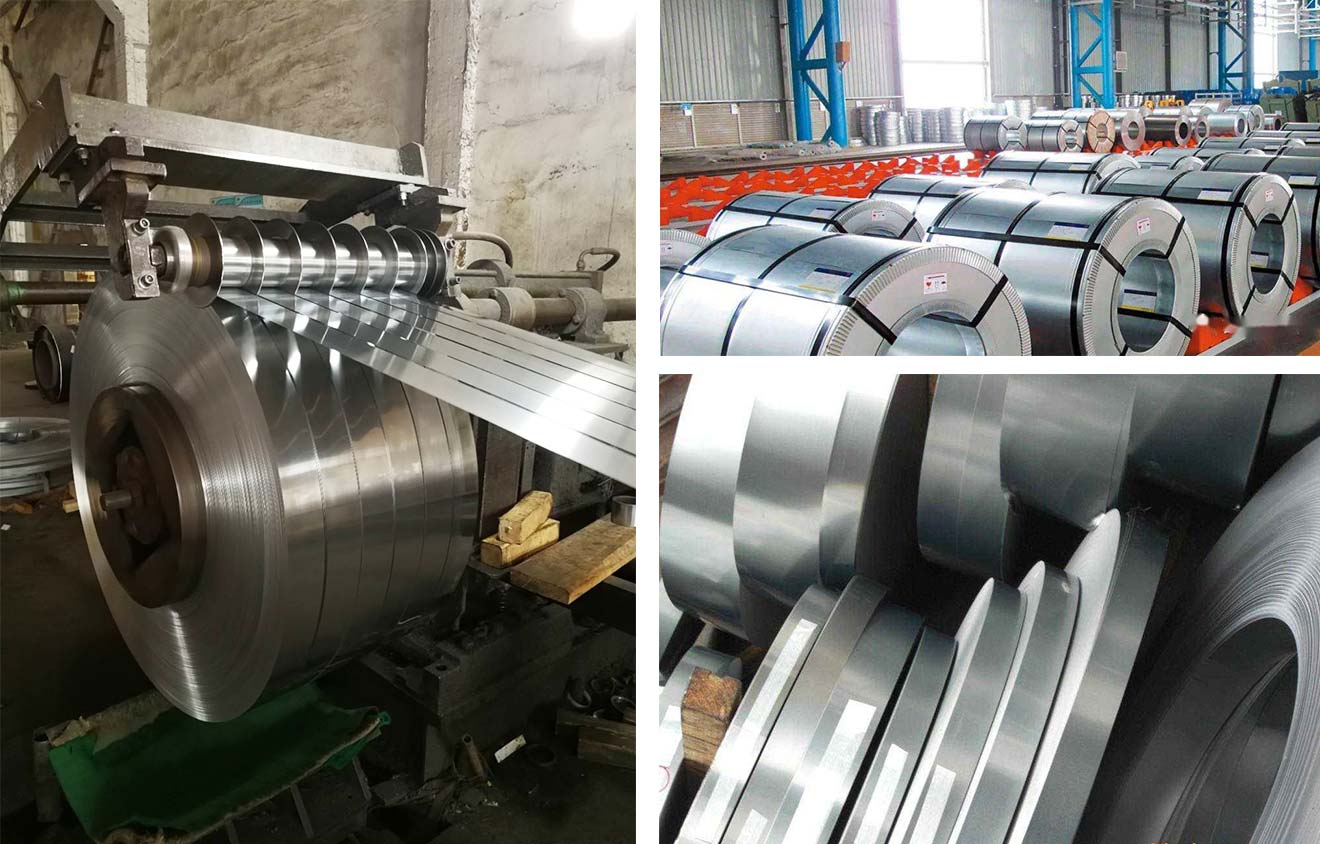

Electrical Steel Coil Display:



Advantage:

Product quality: quality assurance, strictly control the production process, our business philosophy is quality first

Price: Competitive price, attractive price

Service: Steel coil product models are complete, products can be provided according to your requirements, and the delivery time is fast

Quick response: reply in time within 12 hours, welcome email consultation. Good after-sales service, let buyers have no worries
