For use in power and control circuits, installed in conduit or duct.
For wiring of machine tools(stranded conductors).
Suitable for use in dry(75°C - 90°C) or wet( 75°C - 90°C) loaction and in presence of oil or gasoline.
Maximum voltage continuous rating: 600V
It is fit for ac rated voltage 450/750 and below of domestic electrical appliances of smaller size motorcade tools of instruments of various meters and motorized lighting installations.
Standard GB 5023, IEC 60227, BS 6004

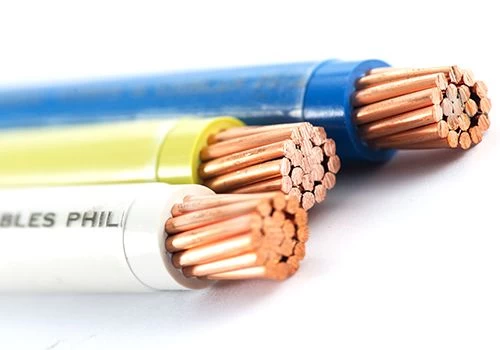

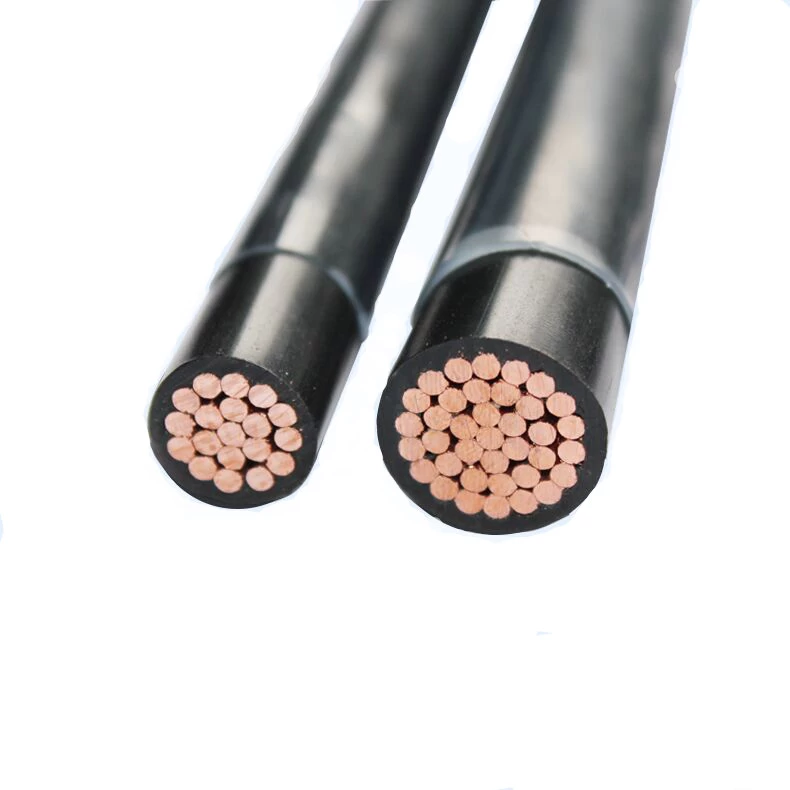

Electrical Cables And Wires PVC Insulated Type Thhn Ul Vde Power Cable
Application of power cable :
Nylon sheathed wire and cable has better electrical and physical properties than ordinary PVC insulated wire and cable: nylon sheathed wire and cable has better heat resistance, and has low weight loss at high temperature, which can improve the instantaneous thermal overload of the wire. Ability to slow or reduce the escape or migration of PVC components.
Characteristics of power cable :
-
Nominal Voltage:300/500V
-
Conductor: Copper (Solid/stranded/flexible)
-
Insulation: PVC (75℃ - 90 ℃ ), flame retardant
-
Jacket: Nylon
-
Packing: 100m/roll
