Electrode Die Cutter For Pouch Cell Electrode Sheet
1.Speedy,efficiently
2.for current collector tabs
3.One stop serives,full solutions

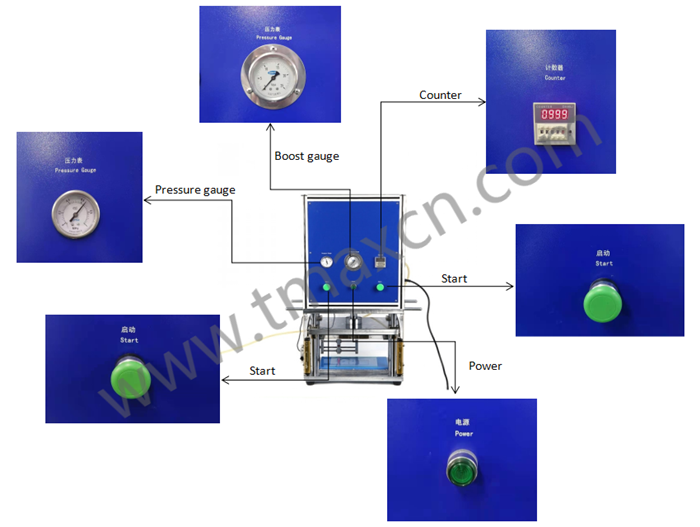

TMAX-MQ300 is a CE Certified semi-automatic electrode die cutter. It is a necessary tool in the production
line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.
|
Model
|
Battery Electrode Die Cutter Machine TMAX-MQ300
|
|
Work voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
100W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Cutting Die
|
Customized according to customer's request
|
|

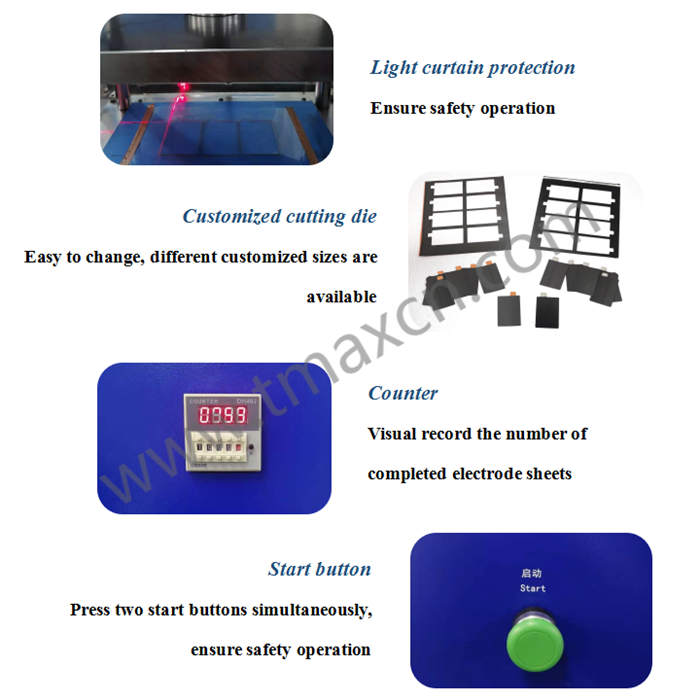

Safety Protection
|

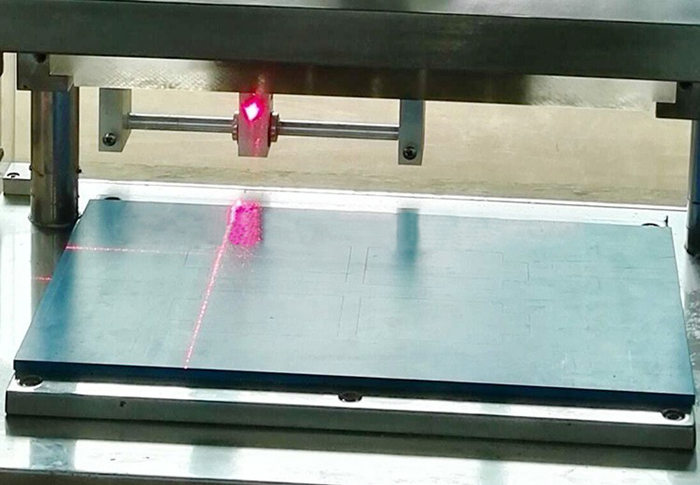

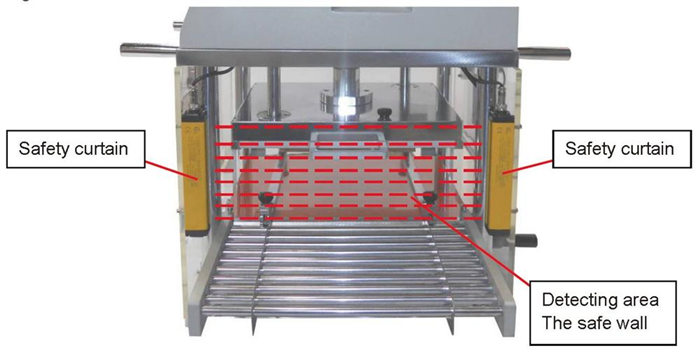

Built in Safety Curtain to protect against hand injuires during electrode feeding
Double start press button
|
|
Cutting Accuracy
|
±0.1mm
|
|
Air Cylinder
|
5 tons Max. pressure
|
|
Tensile Cylinder
|
0.15 tons pressure
|
|
Cutting stroke
|
250mm
|
|

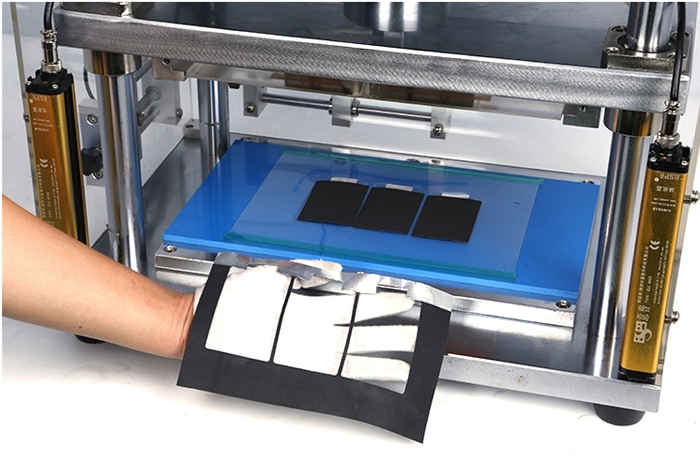

Feeding
|
Manually
|
|
Yield
|
800 - 2000 pieces of electrodes per hour
|
|
Air Pressure
|
0.5-0.8Mpa
|
|
Dimension
(L*W*H)
|
580*455* 900mm
|
|
Net Weight
|
120kg (265 lbs)
|
|
Shipping Dimensions
|
47*75*109cm
|
|
Recommendation
|
For the pouch cell assembly, we also recommend you the following items:

Forming machine Hot sealer with tab Vacuuming sealer

Ultrasonic tab welder Stacking machine Aluminum Laminated Film
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
