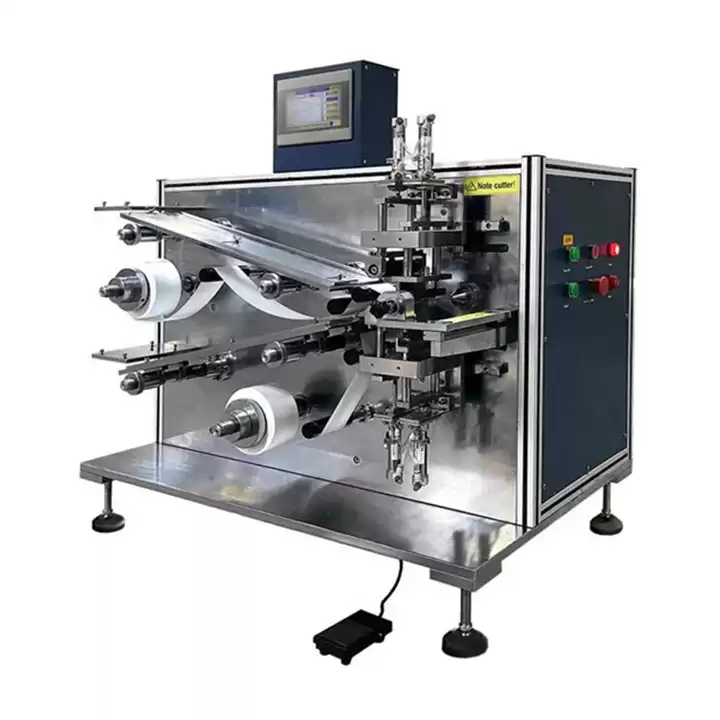

TMAX-YS-B a new semi-automatic winding machine for accurate assembly of flat pouch cell electrode core. The separator film is sandwiched between the cathode and anode materials and then rolled up into a Prismatic pouch cell core at constant tension force. This is an ideal tool provides the reliability and precision to produce high-quality winding of electrode cores.

Outstanding Features:

·        PLC Touch Screen Control

·        Unreeling rotors for separator film feeding

·        Passive tension control; tension is adjustable

·        Automatic finish cut after the completion of jelly roll winding

Model	YS-BLY80	YS-BFX130	YS-BFX180
Cathode / Anode Winding	·         Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on... ·         Anode: Copper foil coated with graphite ·         Thickness Range: 0.1-0.2mm ·         Suggested Overall Length: <250～2500mm ·         Maximum Width: 18-80mm	·         Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on... ·         Anode: Copper foil coated with graphite ·         Thickness Range: 100~300um ·         Suggested Overall Length: <1500mm    ·         Maximum Width: 128mm	·         Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on... ·         Anode: Copper foil coated with graphite ·         Thickness Range: 100~300um ·         Suggested Overall Length: <1500mm    ·         Maximum Width: 178mm
Separator Winding	·         PP or PE ·         Thickness Range: < 0.016-0.045mm ·         Separator roll diameter:300mm ·         Width:       20-80mm	·         PP or PE ·         Thickness Range: <100um ·         Max. adaptable size: ·         Thickness: < 10 mm  ·         Width:       60 - 130 mm	·         PP or PE ·         Thickness Range: <100um ·         Max. adaptable size: ·         Thickness: < 10 mm  ·         Width:       60 - 180 mm
Winding Blade Width	30 - 100mm	30 - 100mm	30 - 100mm
Working Voltage	Single-phase 110-240VAC, 50/60Hz
Max. Power Consumption	1.5KW
Winding Accuracy	Edge Evenness: <0.5mm
Tension Control	<150g adjustable
Winding Speed	0 - 400 RPM adjustable
Feeder Bed	1500mm Long
Compressed Air Requirement	0.7MPa (Please note that an air compressor is needed for the operation of this machine. Air Compressor is NOT included.)
Warranty	Two Years Limited Warranty With Lifetime Support
Compliance	CE certified
