Electrolyte Diffusion Machine For Polymer Battery Production Line before Vacuum Pre-sealing
Product Specification
Electrolyte diffusion chamber is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyte after it's been injected into the polymer Li-ion cell/cylinder cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries (especially pouch cell battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.
|
Model
|
Electrolyte Diffusion Chamber TOB-JD-JZ300
|
|
Power Supply
|
110-240 V, Single Phase 50/60Hz
|
|
Max. Power
|
2500W
|
|
Warranty
|
One year limited with life time support
|
|
Compress Air
|
0.5-0.8Mpa
|
|
Inner Chamber Size
(L*W*H)
|
470*370*300mm, Can customize the size according to glove box size
|
|
Product Dimensions
(L*W*H)
|
700*410*730mm
|
|
Application Notes
|
Please choose the vacuum pre-sealing machine and vacuum pump together for immediately use
|
|
Net Weight
|
90 kg
|

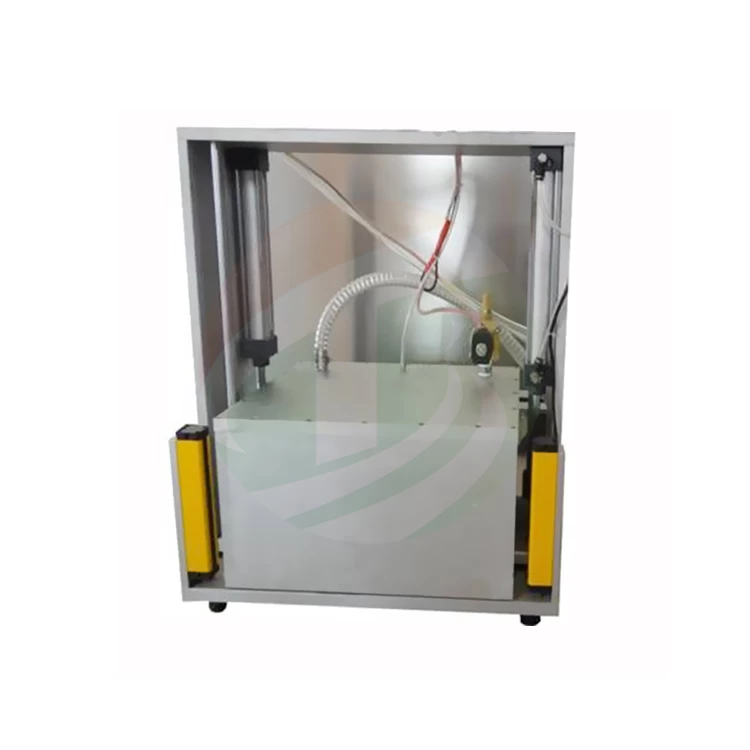

Product Images
Product Packing
