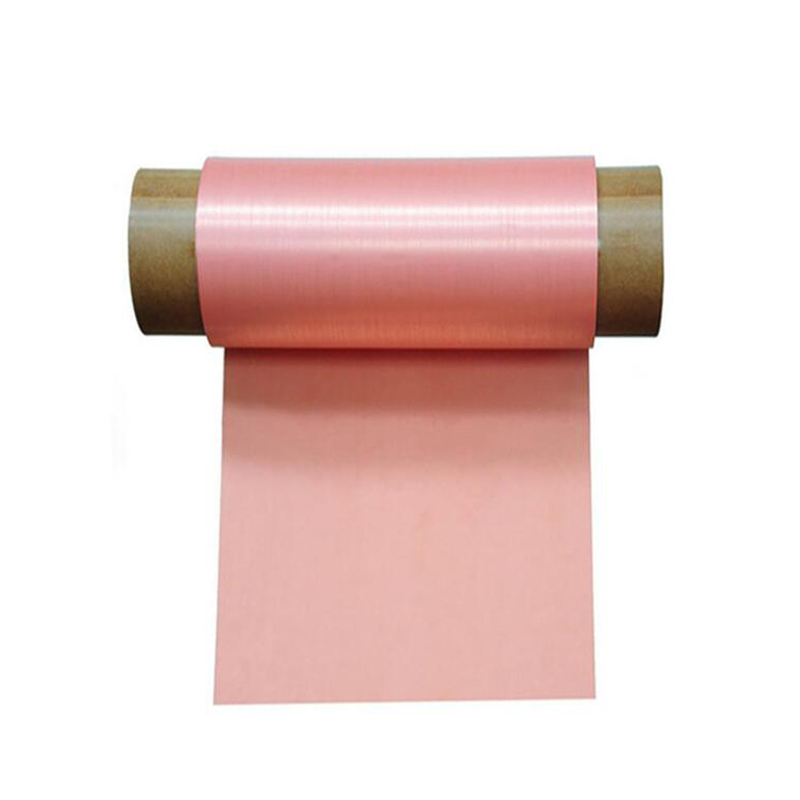

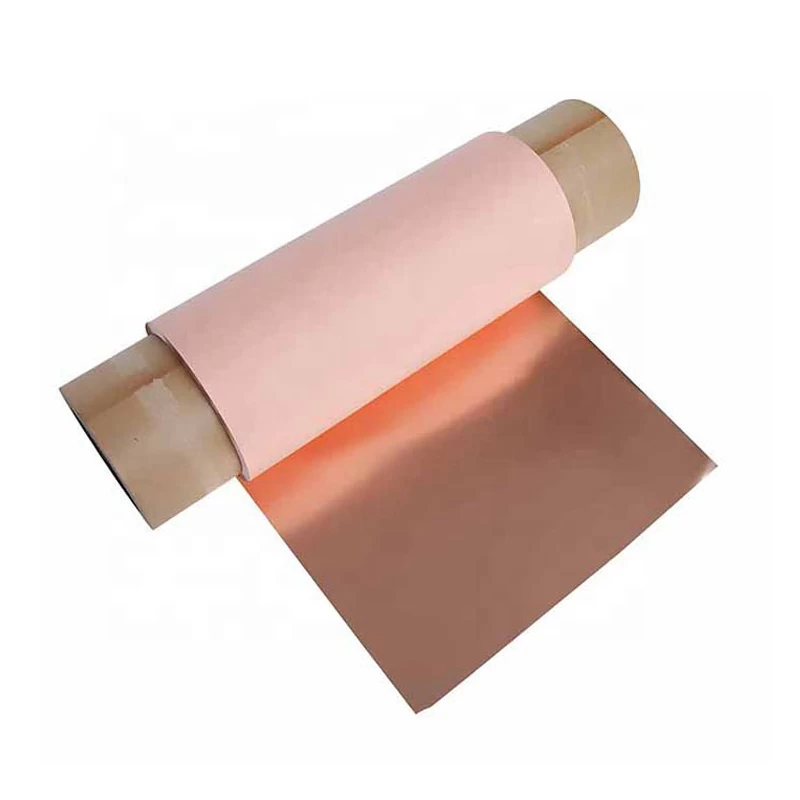

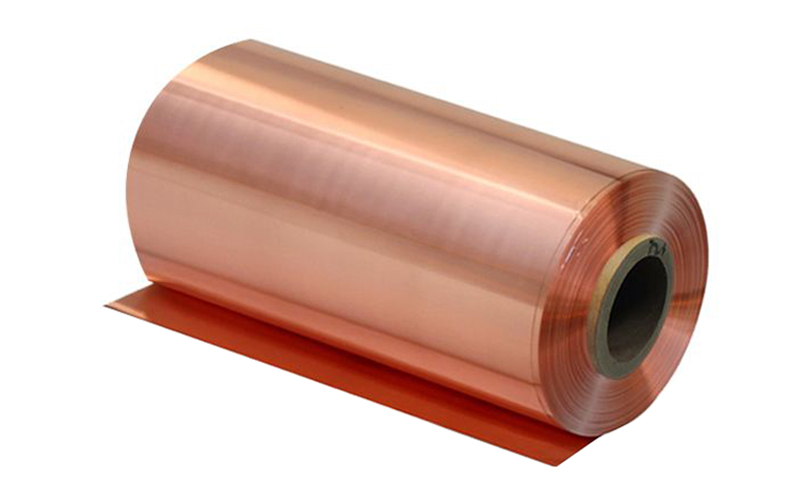

Electrolytic Copper Foil Used for Li Ion Battery Anode Current Collector
DESCRIPTION:
Width:100-300mm, can be customized
Thickness: 8um , 9um , 12um, 15um, 20um optional
Minimum Order Quantity: 2KG/Roll
|
High Purity Copper Foil for Battery Anode Substrate
|
|
Item
|
Data
|
|
width (mm)
|
280mm
|
|
Thickness (um)
|
9
|
|
areal density (g/m2)
|
85-90
|
|
Purity(%) More than 99.9%
|
Cu ≥99.9%
|
|
Fe < 0.0010%
|
|
Bi < 0.00020%
|
|
Pb < 0.0005%
|
|
Tensile strength (MPa)
|
≥294
|
|
Normal elongation(%)
|
2.5
|
|
High temperature Tensile strength180℃(MPa)
|
≥147
|
|
High temperature elongation180℃(%)
|
2
|
|
Anti oxidization(180℃ Heating 1h)
|
No oxidation of points on the surface,The color does not
change,Copper foil without fracture
|
|
Surface roughness(um)Rz
|
Drum side(um)
|
Less than 0.3
|
|
Matte side(um)
|
Less than 3.0
|
|
Surface tension(dyne/cm)
|
Drum side
|
62
|
|
Matte side
|
62
|
|
Coating performance
|
Cu foil with uniform tension on both sides, slurry coating unifor
|
