Introduction to electromagnetic water meter

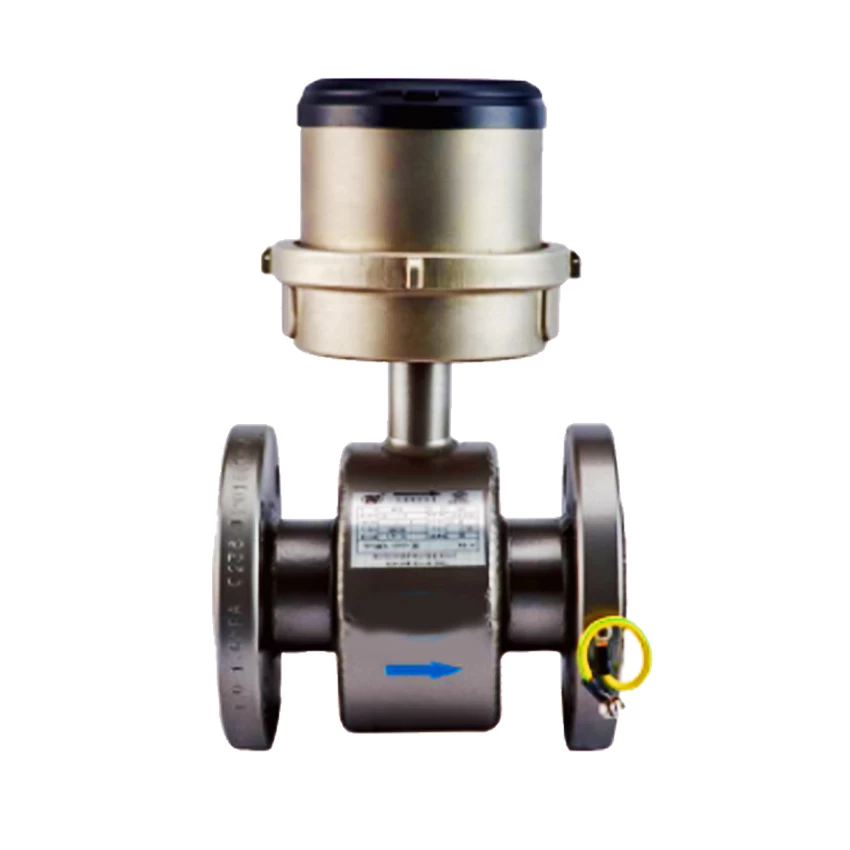

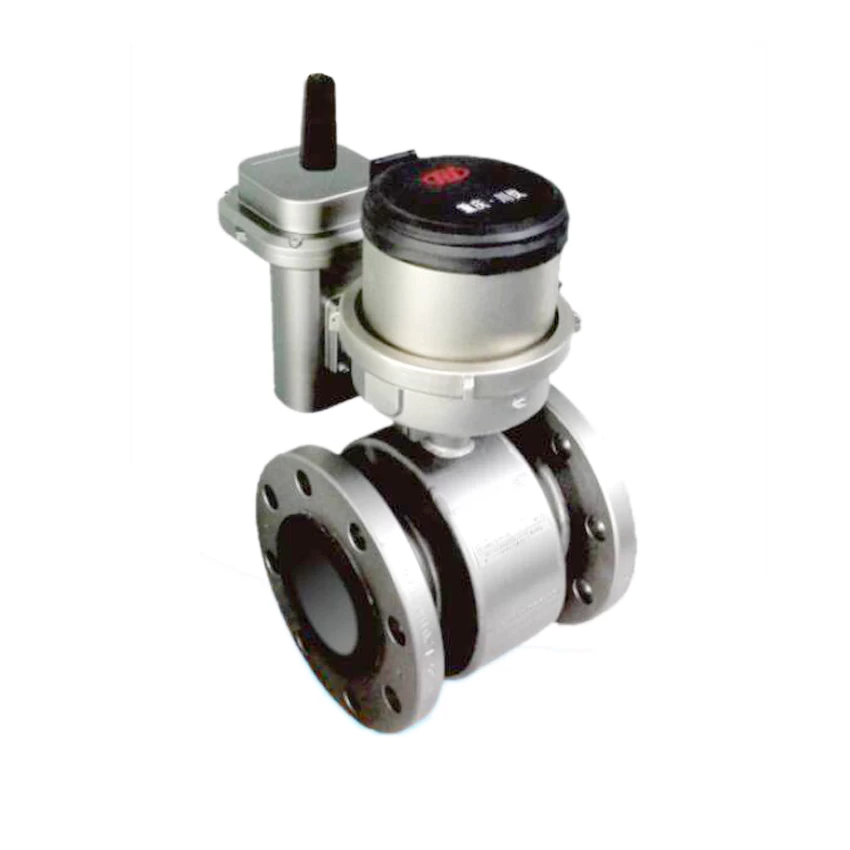

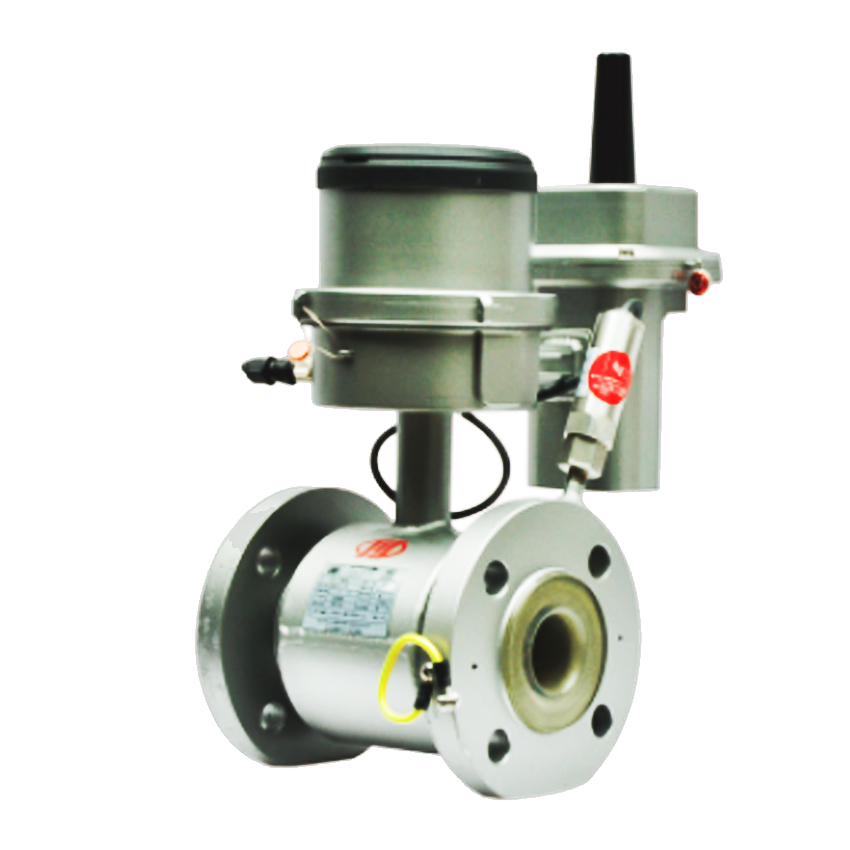

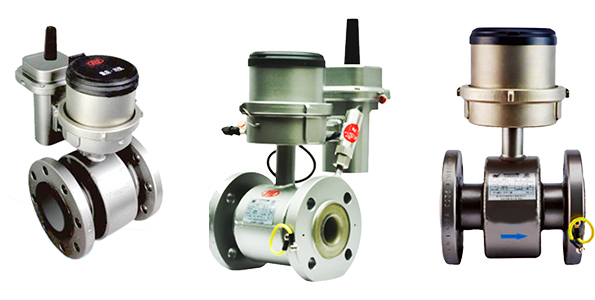

MFB-S series electromagnetic water meter
Electromagnetic water meter
OUTSTANDING CHARACTERISTICS:
-
Easy installation, overall protection class IP68
-
Battery life: up to 6 years of service life
-
Range ratio: R=160, R=250
-
Ultra low speed initial flow rate
-
Measurement accuracy, long-term measurement performance, maintenance-free
-
Can measure flow in both positive and negative directions
-
The battery water sensor can be equipped with a pressure sensor to detect the pipeline pressure at the installation point, which can be transmitted to the system.
-
The internal power supply is powered by a 3.6V high-energy lithium battery. It requires no external power supply and external settings. It is easy to use and has a wide range of applications.
-
Electromagnetic flowmeter or electromagnetic water meter housing is made of stainless steel (carbon steel optional)
-
A variety of communication solutions are available: RS485 communication, wireless remote transmission (GPRS\NB-IoT): remotely collect and detect electromagnetic water meter measurement information and alarm information to maximize customer convenience
-
The converter has a series of word diagnosis functions, electrode scaling, sensor leakage, empty tube alarm, low battery alarm light function, the user can detect the status of the water meter in real time.
-
Data protection: Magnetic flowmeters flowmeter parameters and measurement data are registered in non-volatile memory (can be stored for more than 10 years). The instrument has mechanical seal and electronic seal, which can effectively prevent parameters from being modified by unauthorized persons.
Electromagnetic water meter technical data
|
MFB-S
series
electromagnetic
water meter
|
|
Carliber
|
DN40~DN300
|
Installation standard
|
Pipeline type(flanged connection)
|
Flange standard
|
GB/T9119
|
Pressure grade
|
1.0MPA\or others
|
Lining matgerial
|
PU
|
Electrode material
|
316L
|
Electroconductibility
|
≧20μs/cm
|
Protection grade
|
IP68,IP67(split type)
|
Temperature grade
|
T50
|
Medium temperature
|
0℃~50℃
|
Climate and mechanical environmental class
|
class c
|
Electromagnetic enviroment grade
|
E2
|
Embeddability
|
Embedding depth ≤5m (only for IP68)
|
Electrical connection
|
high-protection
aviation plug
|
Split cable
|
≤10m
|
Power supply
|
3.6v lithium battery,220v ac+3.6v lithium battery,24v dc+3.6v lithium
battery
|
Output interface
|
Pulse(standard ),RS485(standard),GPRS,NB-IoT
|
MFB-S R160 type Electromagnetic water meter Flow rate Parameter
|
Carliber
|
Q4(m³/h)
|
Q3(m³/h)
|
Q2(m³/h)
|
Q1(m³/h)
|
R(Q3/Q1)
|
|
40
|
50
|
40
|
0.4
|
0.25
|
160
|
|
50
|
78.75
|
63
|
0.63
|
0.4
|
|
65
|
125
|
100
|
1
|
0.63
|
|
80
|
200
|
160
|
1.6
|
1
|
|
100
|
312.5
|
250
|
2.5
|
1.6
|
|
125
|
500
|
400
|
4
|
2.5
|
|
150
|
787.5
|
630
|
6.3
|
4
|
|
200
|
1250
|
1000
|
10
|
6.3
|
|
250
|
2000
|
1600
|
16
|
10
|
|
300
|
2000
|
1600
|
16
|
10
|
Class C :Q1-Q2:Erro range ≦3%R Q2-Q4 Erro range ≦1%; Class B :Q1-Q2:Erro range ≦5%R Q2-Q4 Erro range ≦2%R
MFB-S R250 type Electromagnetic water meter Flow rate Parameter
|
Carliber
|
Q4(m³/h)
|
Q3(m³/h)
|
Q2(m³/h)
|
Q1(m³/h)
|
R(Q3/Q1)
|
|
40
|
50
|
40
|
0.25
|
0.16
|
250
|
|
50
|
78.75
|
63
|
0.4
|
0.25
|
|
65
|
125
|
100
|
0.63
|
0.4
|
|
80
|
200
|
160
|
1
|
0.63
|
|
100
|
312.5
|
250
|
1.6
|
1
|
|
125
|
500
|
400
|
2.5
|
1.6
|
|
150
|
787.5
|
630
|
4
|
2.5
|
|
200
|
1250
|
1000
|
6.3
|
4
|
|
250
|
2000
|
1600
|
10
|
6.3
|
|
300
|
2000
|
1600
|
10
|
6.3
|
Class C :Q1-Q2:Erro range ≦3%R Q2-Q4 Erro range ≦1%; Class B :Q1-Q2:Erro range ≦5%R Q2-Q4 Erro range ≦2%R
