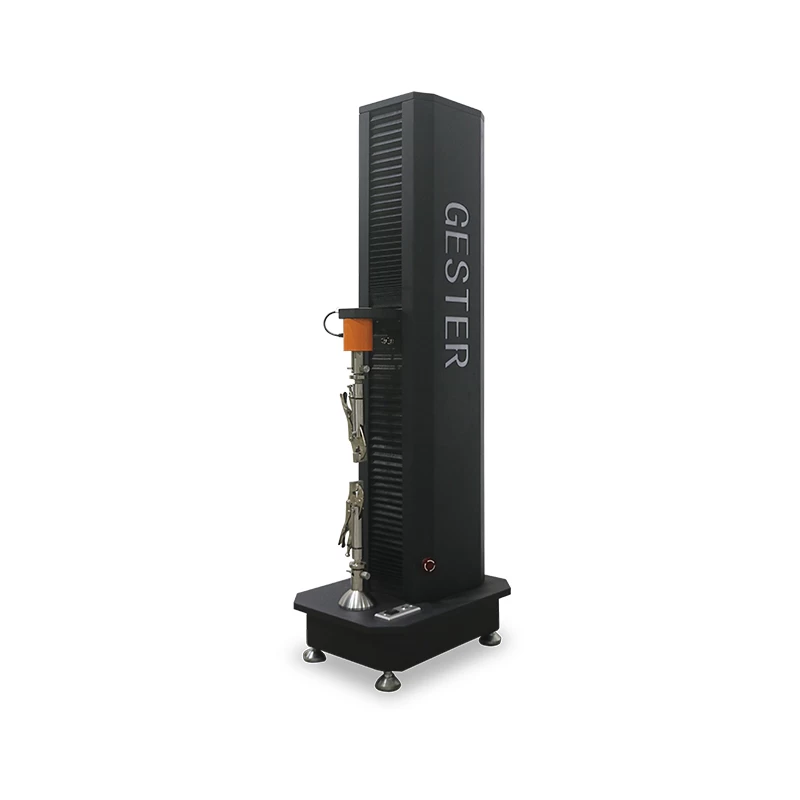

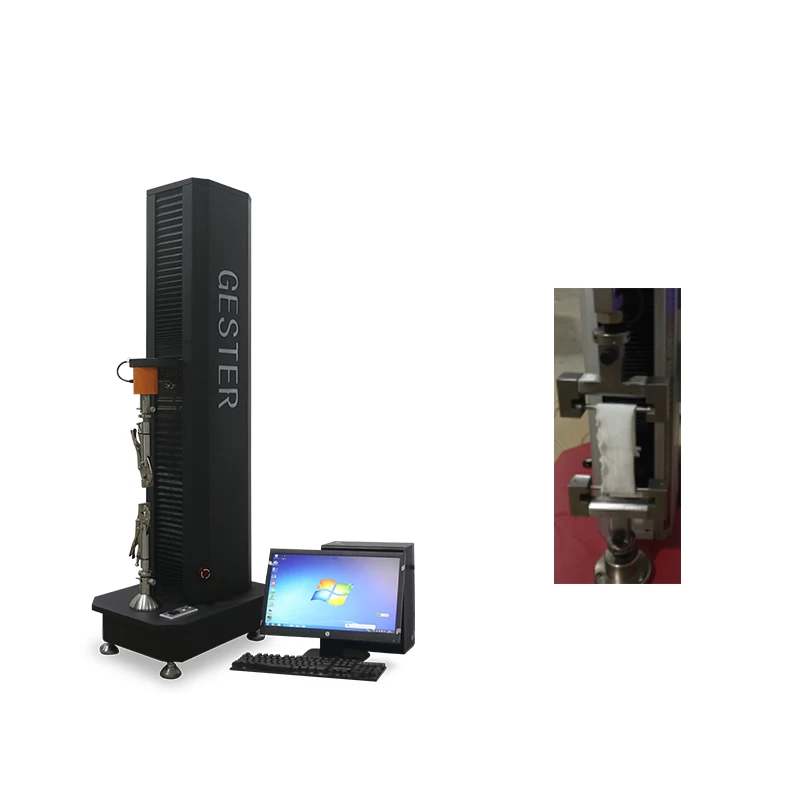

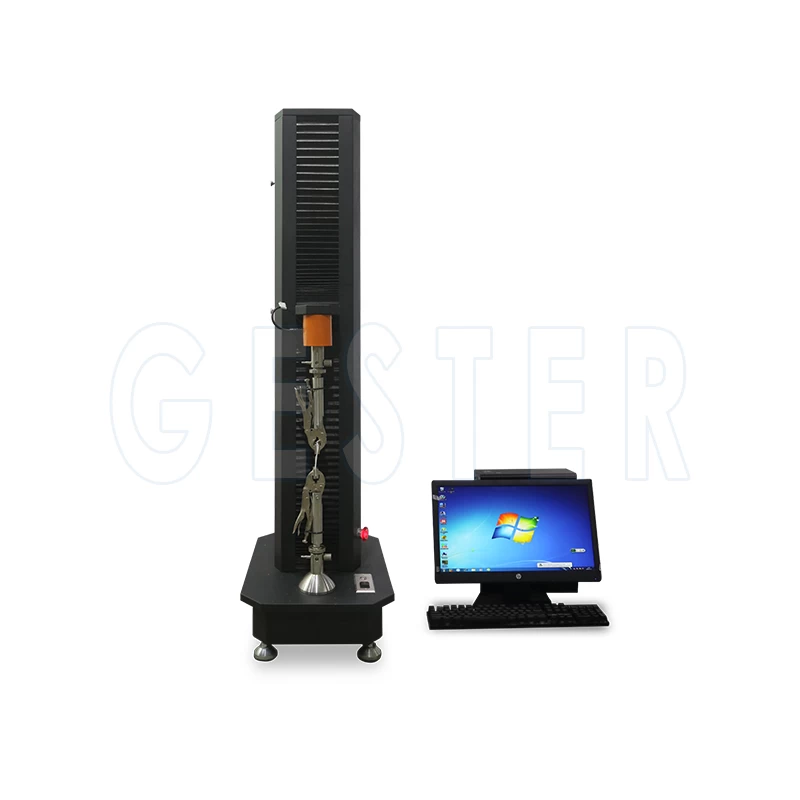

Electronic Elastic Strength Tester GT-C04-1
Product Introduction
|
Application:

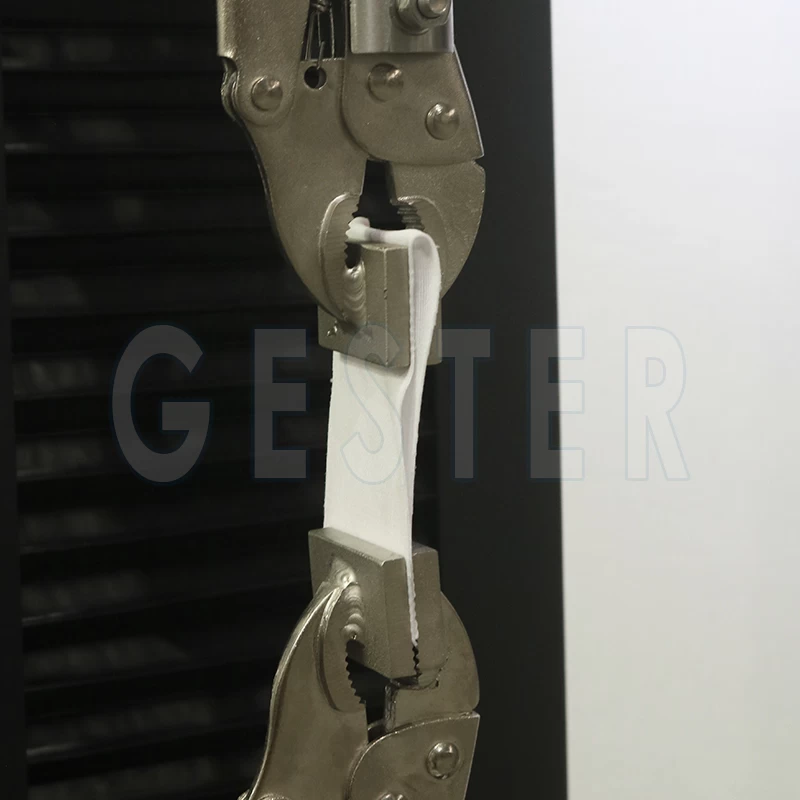

This Electronic Elastic Strength Tester designed for elasticity testing of all kinds of elastic materials such as socks, knitted underwear, woven fabric, spandex, spandex core, hammock and elastic cord.
Standards:
FZ/T 01034, FZ/T 01062, ASTM D4964, BS 4592
|
Feature
1. Powerful data search function, can search each group of statistical data and data & curve at any time directly.
2. Internal can setting multiple-unit test measuring parameter, suit for different sample test.

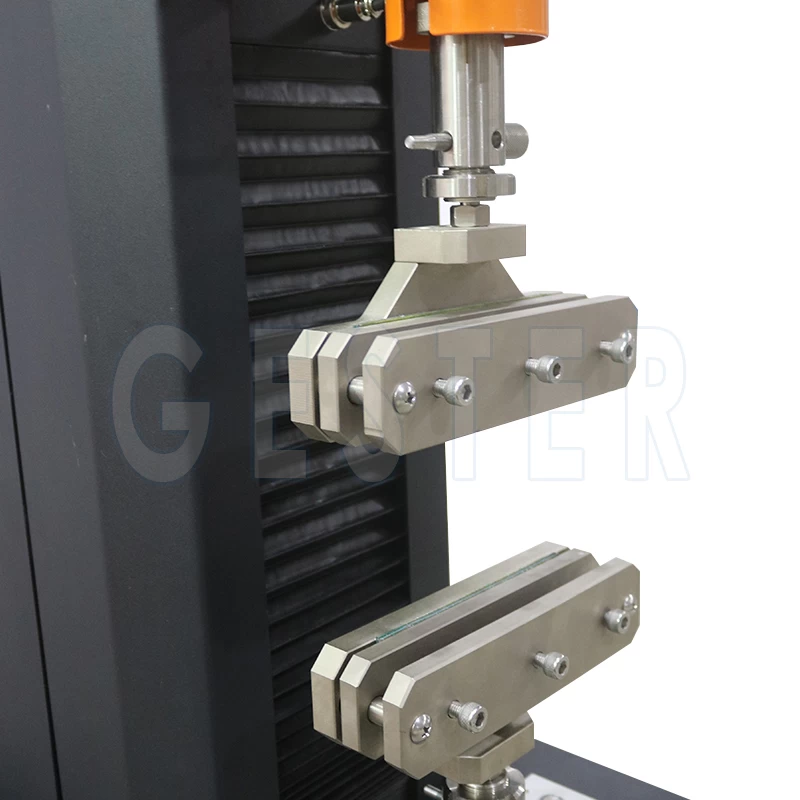

3. Clamp can auto locate.
4. Measuring can auto error correction.
5. Support online operation with specialist analysis system.
Key Specifications
Model
|
5
|
50
|
Range
|
50N
|
500N
|
Test Accuracy
|
≤0.2%F·S
|
Stretch Speed
|
0.01～1000mm/min
|
Max. Elongation
|
800mm
|
Clamp Width
|
60mm
|
Stroke Resolution
|
0.01mm
|
Power Supply
|
AC220V 50/60HZ 200W
|
Dimensions ( W x D x H )
|
47x38x186 cm
|
Weight
|
85kgs
|

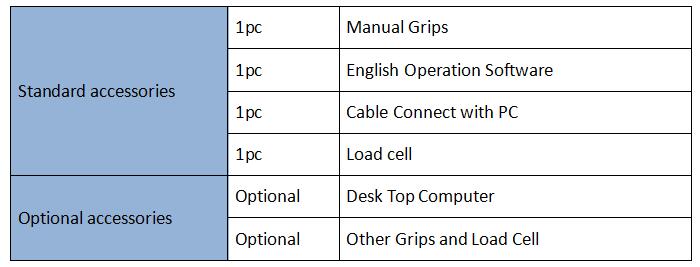

Accessories
Application Industry
All kinds of materials can be tested by the Electronic Elastic Strength Tester.
