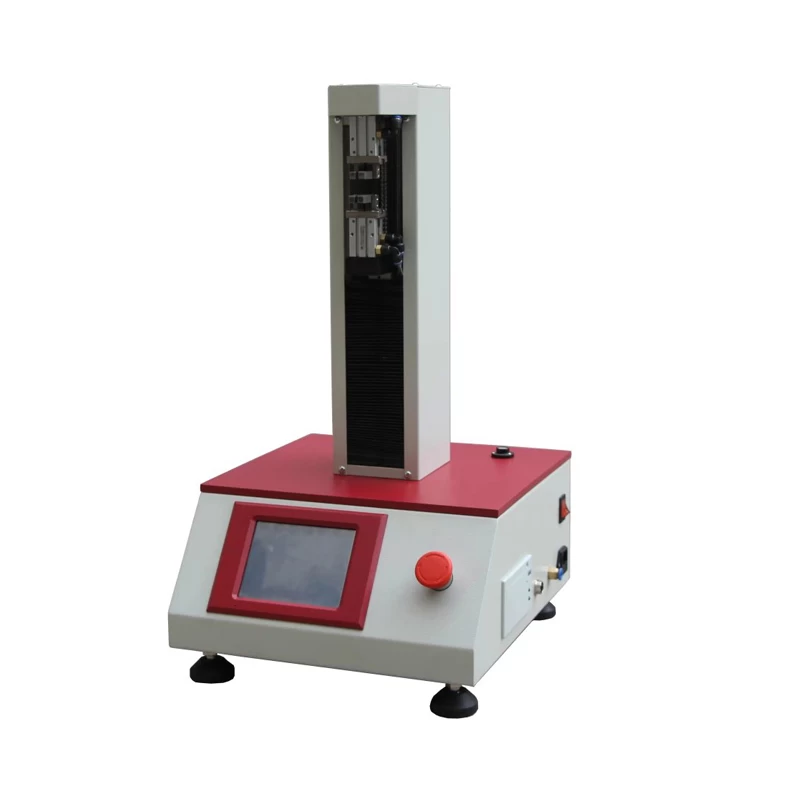

Electronic Fiber Tensile Strength Test Machine (Single Column) GT-B02-2
Product Introduction
|
Application:
Electronic Fiber Tensile Strength Testing Machine (Single Column) can be applied to test lots of materials in breaking tenacity, elongation at break, load at specified elongation, elongation at specified load and creep test, such as natural fiber, chemical fiber, metal wire, hair, carbon fiber and other materials.
Standards:
GB/T14337, 14344, 9997, 13835.5, ISO 5079, 11566, ASTM D 3822, BS 4029
|
Dimensions
Feature
1.LCD display, can operate Chinese & English menu display, more convenient and clear, avoid faulty operation.
2.Using 32-bit cortex-m3 microprocessor, strong anti-jamming performance, fast data transmission.
3.Using high-speed AD converter, high sampling rate and test accuracy.
4.Tester can display, analysis, and store the testing data automatically. Tester configurates thermal printer, can print report directly.
5.Pneumatic clamping, evenly and can be calibrate pressure for avoiding sample slide or destroy.
6.Transmission is the ball screw group, timing belt and synchronous wheel. More stable, high accurate and lower noise.
7.Support online working with professional computer software.

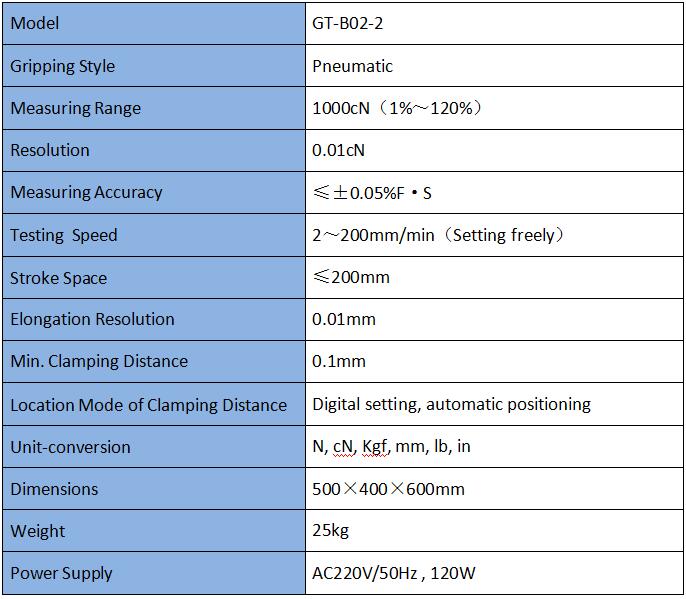

Key Specifications
