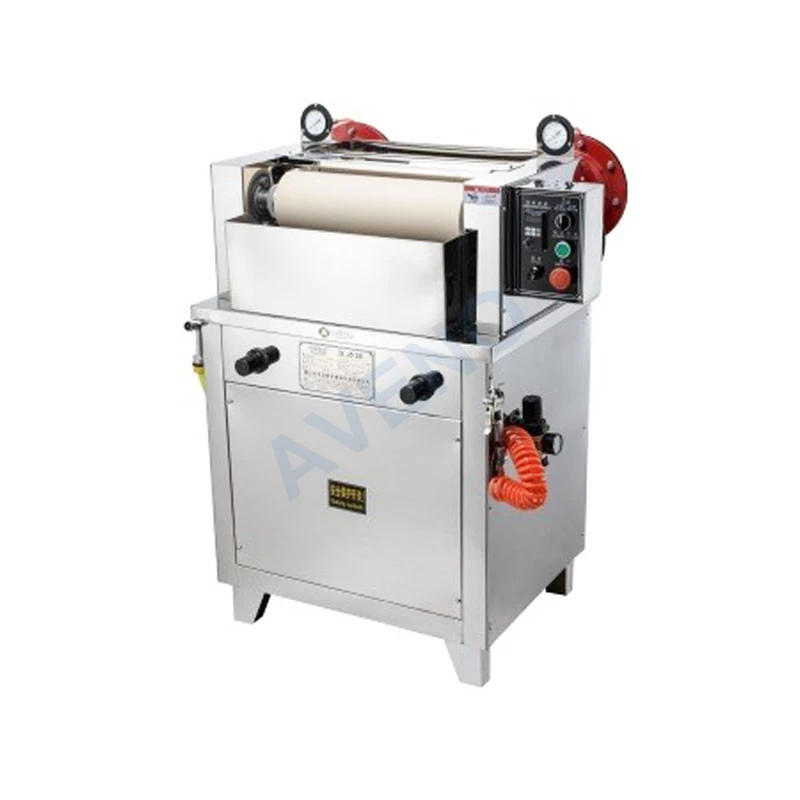

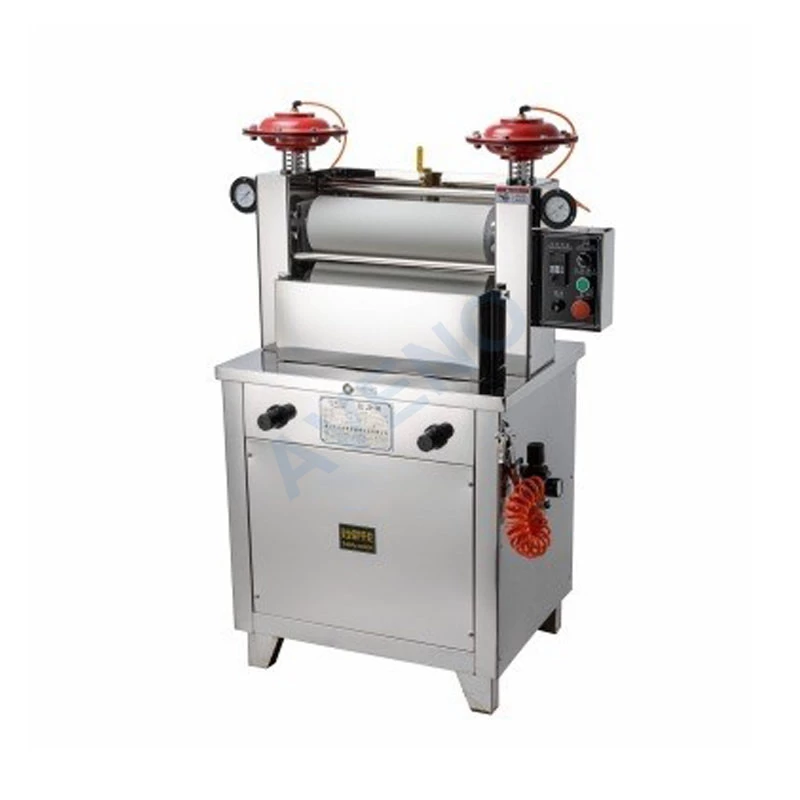

AC24-Electronic Laboratory Padder
Application Of Electronic Laboratory Padder
Electronic Laboratory Padder is suitable for small batch and multi-variety dyed fabrics. Test the pressure absorption rate or fabric dyeing, post-treatment effect and quality of fabrics.
Feature Of Electronic Laboratory Padder
-
Compressed air to provide power, pressure regulating valve control pressure, roll driven by large section film cylinder, the pressure on both sides are same, can effectively imitate the production process.
-
Equipped with safety protection system, two emergency switch, power off automatic reset, comprehensive protection and use of safety.
-
Hand-held air gun, flexible use, comfortable handle.
-
Equipped with air filters.
Key Specification Of Electronic Laboratory Padder
|
Model
|
AC24-A
|
AC24-B
|
|
Roller direction
|
Vertical
|
Horizontal
|
|
Body material
|
SUS304 stainless steel
|
|
Roller material
|
Nitrile-butadiene rubber
|
|
Roller Shaw hardness
|
Shaw 70°
|
|
Roller dimension
|
Length: 420mm
Dimension: 130mm
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
89*63*130cm
|
85*68*110cm
|
|
Weight
|
90kg
|
90kg
|
