We are professional transformer manufacture, skilled at designing electronic transformers, coil inductors, other electronic components. We are located in Anhui Province, where the labor cost is much lower, if you are looking electronic precision current transformers so we can give you very competitive price.
Quick Details
|

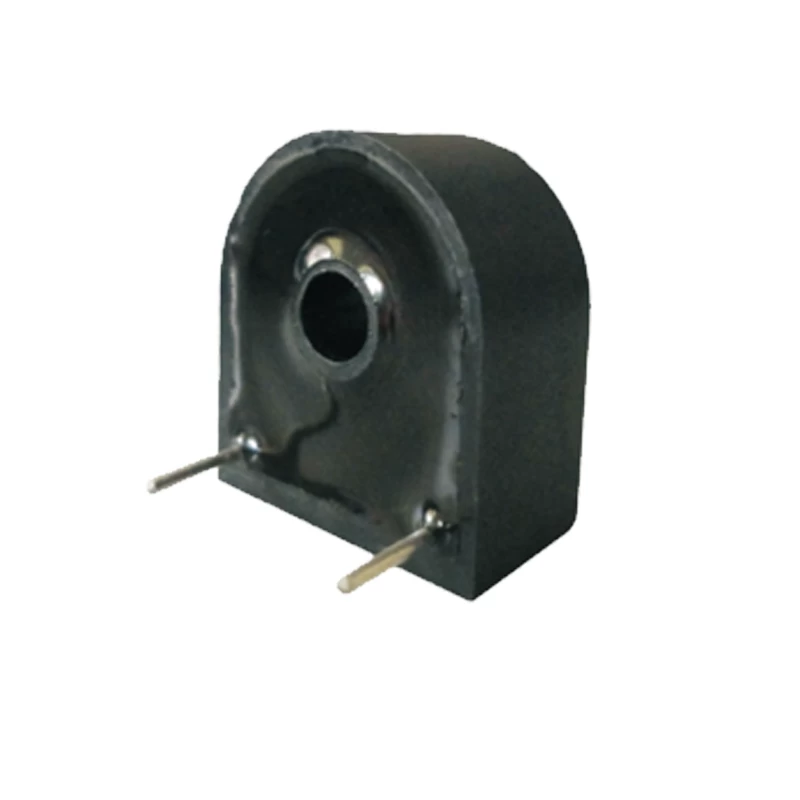

Part No: MCT04A05H Precision Current Transformer
|
|
Brand name: MCT
|
|
Operating temperature：-40°C~50°C
|
|
Custom made: Available
|
|
Storage temperature:-40°C~70°C
|
|
Logo: Can be customized
|
|
Relative humidity:10~95%
|
|
Packing: Carton, can custom
|
|
Rated input current:5A
|
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
|
OEM: Available
|
|
Lead time: 25 days after payment
|
|
Shipping: Air, Ship, etc
|
Part Information
Product Name: Electronic Precision Current Transformer Horizontal Transformer Bobbin
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
|
MCT PN
|
Rated IN/OUT
|
Accuracy
|
Linearity Range
|
Phase shift
|
Load resistance
|
Isolated withstand voltage
|
Threading aperture,
Unit:mm
|
|
MCT04A05AH
|
5A/2mA
|
0.5
|
0~15A
|
≤15’
|
≤200Ω
|
3000V
|
Φ4.70
|
|
MCT04A05BH
|
5A/2.5mA
|
0.5
|
0~15A
|
≤15’
|
≤200Ω
|
3000V
|
Φ4.70
|
|
MCT04A05CH
|
5A/5mA
|
0.5
|
0~10A
|
≤15’
|
≤50Ω
|
3000V
|
Φ4.70
|

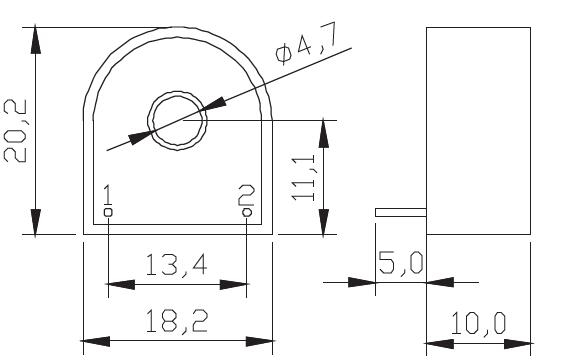

Dimension：mm
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome customized type requirements.
