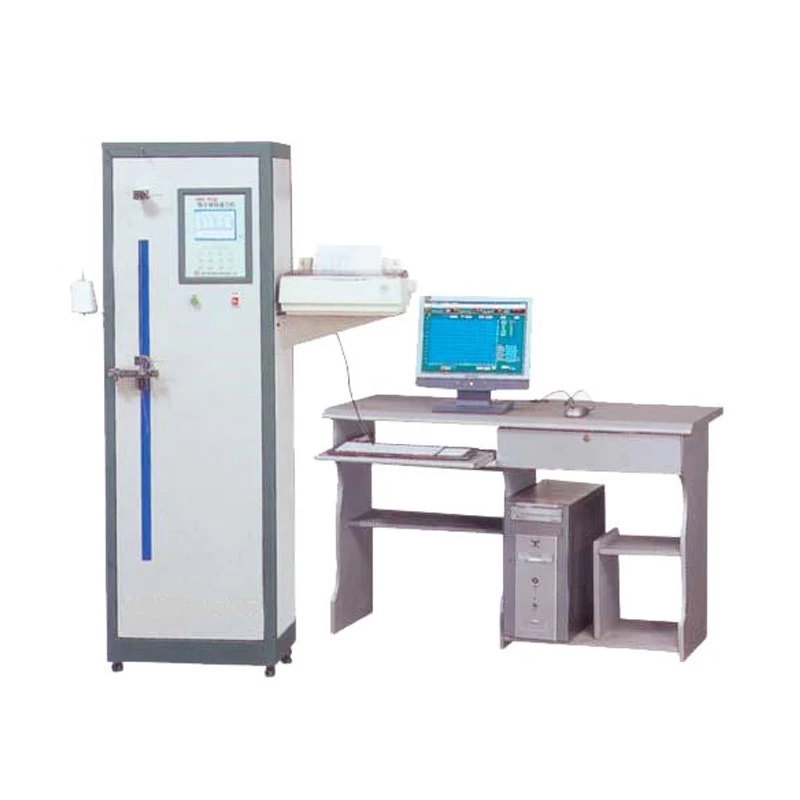

AY06-Electronic Single Yarn Strength Tester
Application Of Electronic Single Yarn Strength Tester
Electronic Single Yarn Strength Tester is used for testing the breaking strength and elongation of a single yarn and fiber pure yarn or blended yarn of cotton, wool, hemp, silk, chemical fiber and core yarn.
Features Of Electronic Single Yarn Strength Tester
-
With the functions of abnormal data automatic rejection, time stretching, data saving and query.
-
Can be connected to the computer for fully automatic analysis, and automatic statistics, analysis, printer print data and charts.
-
No need to add pre-tension weights, the computer will automatically controls the pre-tension.
-
Fast automatic powerful correction button, just press once to fully automatic zero correction.
-
The internal circuit design adopts an independent functional system circuit board to reduce the time for maintenance and repair.
-
According to the needs of different yarns, set the percentage of elongation (%).
-
The upper and lower limit of strength and elongation can be set, if there's ultralimit action, it will automatically stop the test, or follow the set instructions.
-
The reference intensity and elongation point can be set, then the date will be automatically printed out.
Standards Of Electronic Single Yarn Strength Tester
ISO2062, ASTM D2256, GB/T14344, GB/T3916
Key Specification Of Electronic Single Yarn Strength Tester
|
Model
|
AY06 Electronic Single Yarn Strength Tester
|
|
Mechanism type
|
Constant rate of elongation (CRE)
|
|
Force range
|
20 to 5000 cN
|
|
Force value accuracy
|
± 1%
|
|
Elongation range
|
300mm (when clamping distance is 500mm)
|
|
Stretching speed
|
20 ~ 3500mm/min
|
|
Tensile speed accuracy
|
± 2%
|
|
Clamping distance
|
200,250,500mm, adjustable
|
|
Clamping method
|
Pneumatic (0.5 ~ 0.8Mpa)
|
|
Test timesof each batch
|
≤ 300 (times × tube)
|
|
Test data output mode
|
a) LCD interface display;
|
|
b)printer printing
|
|
Printer configuration
|
Pin printer
|
|
Compressed air
|
Pressure 0.5 ~ 0.8Mpa
|
|
Air consumption 0.01 cubic meters / hour
|
|
Test environment
|
Temperature 20 ± 5 °C
|
|
Relative humidity <80%
|
|
Power supply
|
AC220V 50/60Hz
|
|
Dimensions
|
70×67×147cm
|
|
Weight
|
65kg
|
