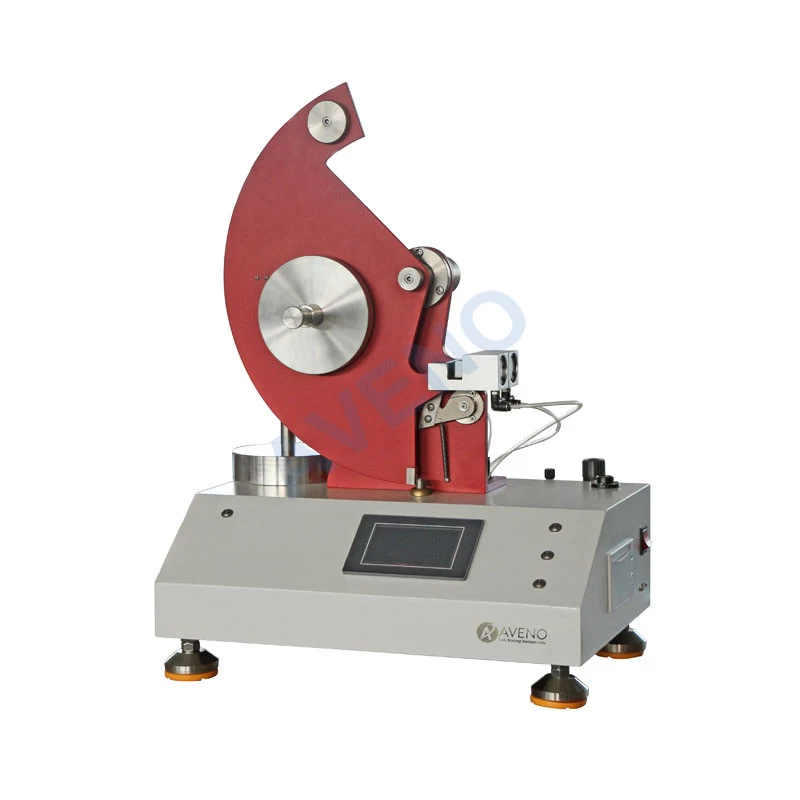

AG11-2-Electro nicTearing Tester
Application Of Electronic Tearing Tester
Electronic Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
Standards Of Electronic Tearing Tester
-
Textile:GB/T 3917.1, ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149
-
Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974,
-
ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNI 6444
-
Plastic:GB/T 11999, ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141
-
Non-woven:ASTM D5734, WSP 100.1.
Key Specification Of Electronic Tearing Tester
|
Model
|
AG11-2 Electronic Elmendorf Tearing Tester
|
|
Range of Tearing Force
|
A: 16N
B: 32N
C: 64N
|
|
Accuracy
|
≤±0.2％ F·S
|
|
Cut Length
|
20±0.1mm
|
|
Rip Length
|
43mm
|
|
Sample clamping method
|
Pneumatic
|
|
Sample size
|
100 x 63mm (LxW)
|
|
Power supply
|
AC 220V, 50/60HZ
|
|
Dimensions (LxWxH)
|
400 x 210 x 395mm
|
|
Weight
|
30Kg
|
Series products：AG11-1 Elmendorf Tearing Tester (Falling-Pendulum Type)
