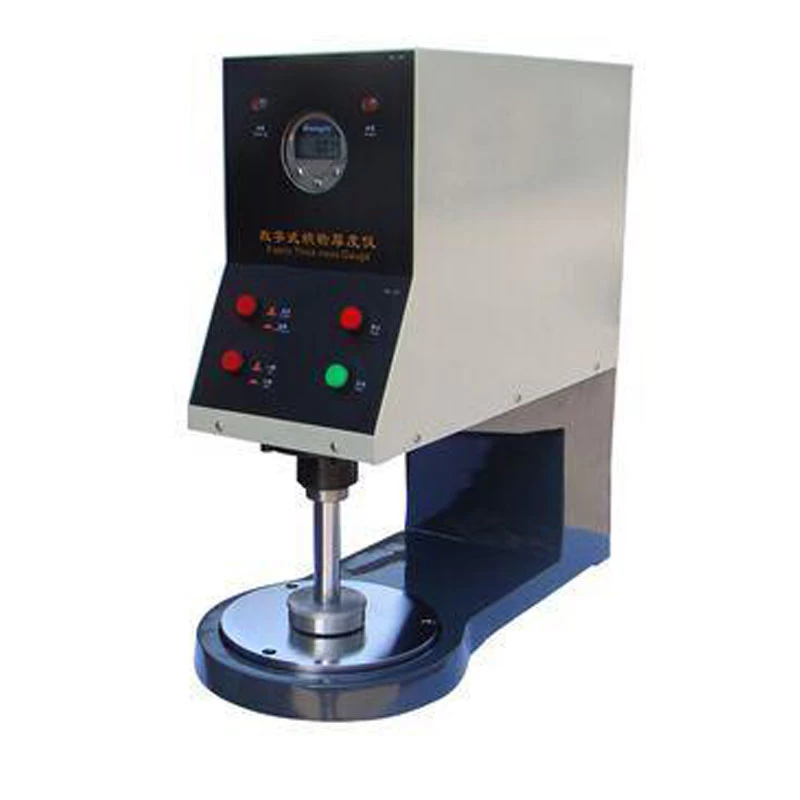

AG24-ELectronic Thickness Tester
Application Of ELectronic
Thickness Tester
ELectronic Thickness Tester is used for measure the thickness of fabric, woven
fabrics, knitted fabrics and other uniform thin material.
Standards Of ELectronic Thickness Tester
ISO 5084, ISO 9073, ISO
9863, GB 3820, FZ/T 01003, ASTM D1777.
Key Specification Of ELectronic Thickness Tester
|
Model
|
AG24-1
|
AG24-2
|
|
Thickness measure range
|
0.01～10mm
|
0.01～20mm
|
|
Division value
|
0.01mm
|
|
Pressure foot diameter
|
Φ11.28mm, Φ50.48mm, Φ56.42mm, Φ112.84mm
|
|
Pressure weight
|
20cN, 100cN, 200cN, 500cN, 2000cN
|
|
Pressing time
|
10s, 30s
|
|
Power supply
|
AC 220V, 50/60HZ
|
|
Dimension
|
40×17×30(L×W×H)
|
|
Weight
|
20KG
|
