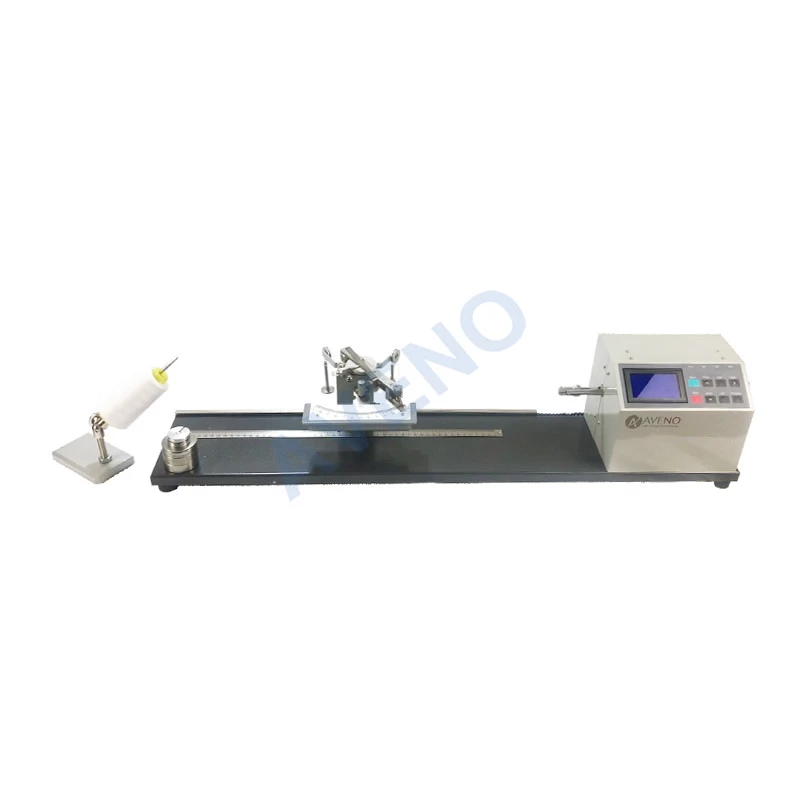

AY04-Electronic Twist Tester
Application Of Electronic Twist Tester
Electronic Twist Tester is used to measure the twist, degree of inhomogeneity of yarns in certain lengths of cotton, wool, linen, and silk, and the twisting and shrinkage of strands, as a basis for assessing product quality and improving the production process.
Features Of Electronic Twist Tester

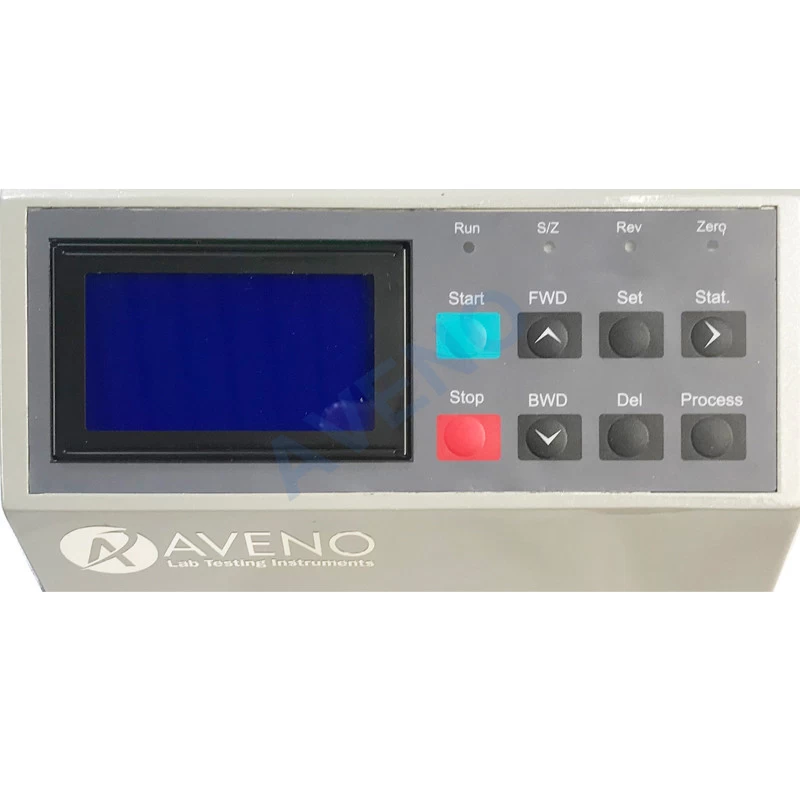

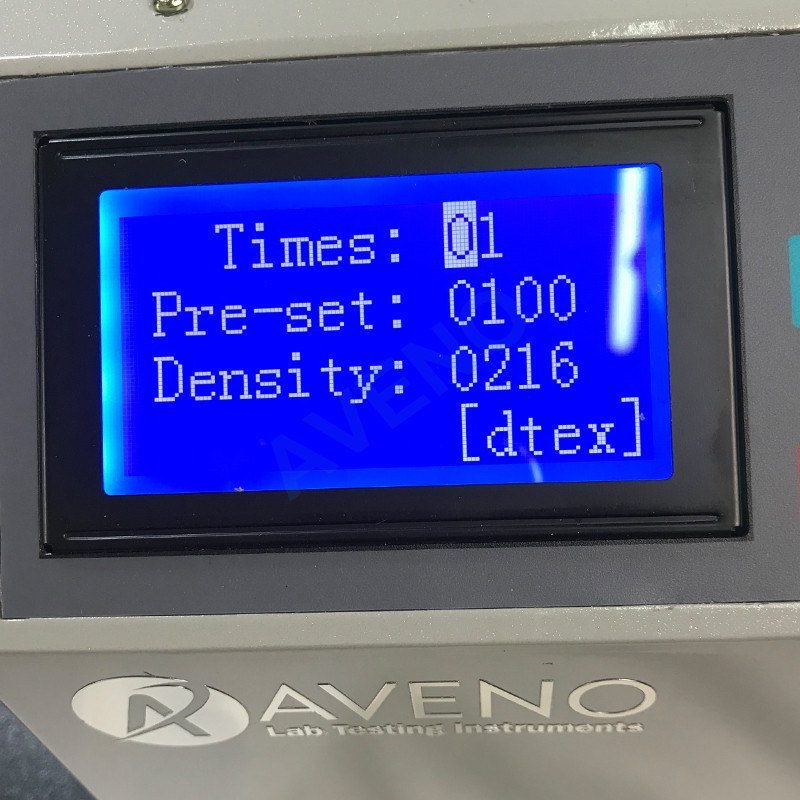

Working mode: microcomputer program control, data processing, print output the result.
Test methods Of Electronic Twist Tester
a. Average untwisting slip elongation
b. Average untwisting maximum elongation;
c. Direct counting method;
Untwist-retwist method A;
Untwist-retwist method B;
d. Triple twisting method.
Standards Of Electronic Twist Tester
ISO2061, BS2085, ASTM D1422,1423, JISL1095, GB/T2543.1.2, 14345
Key Specification Of Electronic Twist Tester
|
Model
|
AY04
Electronic Twist Tester
|
|
Length
of the sample
|
10,25,50,100,200,250,500
mm
|
|
Test
range
|
1～6000.0t/10cm, 1～6000.0t/m
|
|
Untwisting
elongation range
|
Max.60mm
|
|
Max.contraction
|
20mm
|
|
Rotation
speed
|
200 ~
2000r/min
|
|
Pre-tension
|
0.5 ~ 171.5cN
|
|
Power
supply
|
Ac220V 50Hz
25W
|
|
Dimension
|
92×17×22cm
|
|
Weight
|
16kg
|
Related products

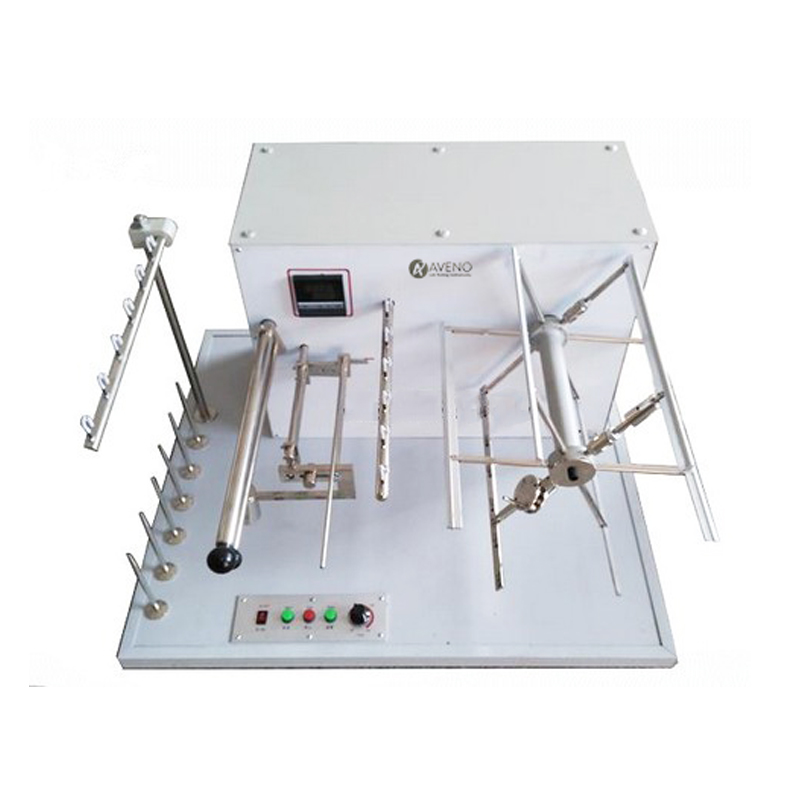

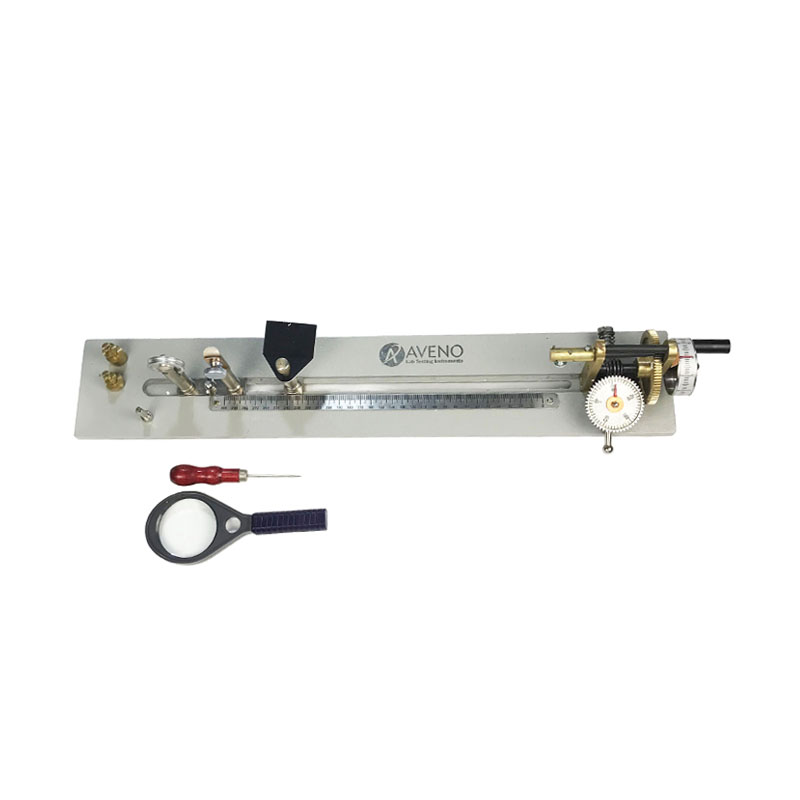

Manual Twist Tester Yarn Examining Machine Electronic Wrap Reel Tester
