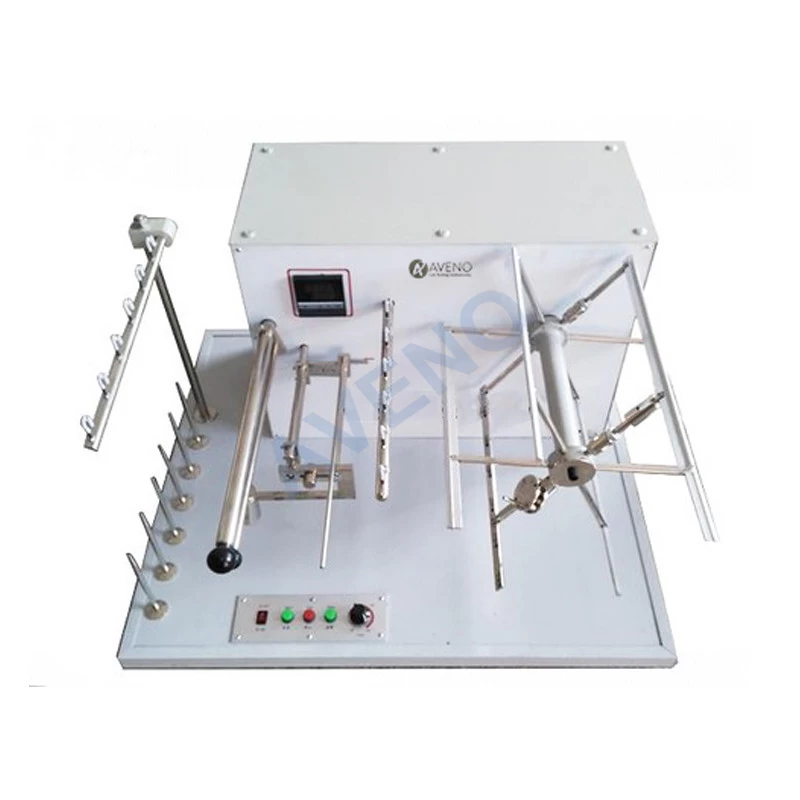

AY01 Electronic Wrap Reel Tester
Application Of Electronic Wrap Reel Tester
Electronic Wrap Reel Tester Used in the textile, knitting, printing and dyeing, clothing and other industries to accurately determine the length of the yarn for the determination of the linear density or count of textile yarn.
Feature Of Electronic Wrap Reel Tester
● SCM control, start and stop stably, accurate, low noise operation, no punch circle phenomenon.
● Electronic counter.
● with real-time speed detecting function.
● Digital display tension.
● Continuous stepless speed regulation.
Standards Of Electronic Wrap Reel Tester
ASTM D1907, ISO 2060, GB/T 4743, GB/T 6838
Key Specification Of Electronic Wrap Reel Tester
|
Model
|
AY01-1
|
AY02-2
|
|
Reel Circumference
|
1000mm± 1mm
|
54in± 1/16in
|
|
Bobbin
No. of yarns tested at a time
|
6 position
|
|
Spacing
of spindles
|
60mm
|
|
Yarn
frame speed
|
20 ~ 250rpm
(stepless speed regulation)
|
|
Number
of wrap
|
1 ~ 9999
|
|
Traveling
reciprocating distance
|
35±0.5mm
|
|
Single
shake yarn tension range
|
0 ~ 100 ± 1cN
|
|
Power
|
AC220V 50Hz
100W
|
|
Dimensions
|
780×660×480mm
|
|
weight
|
53Kg
|
