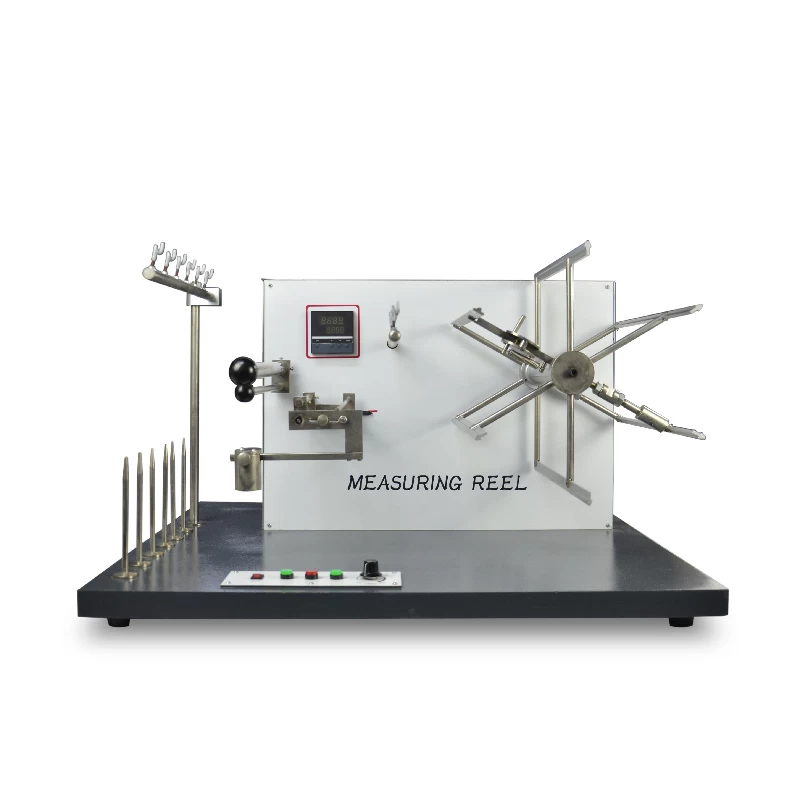

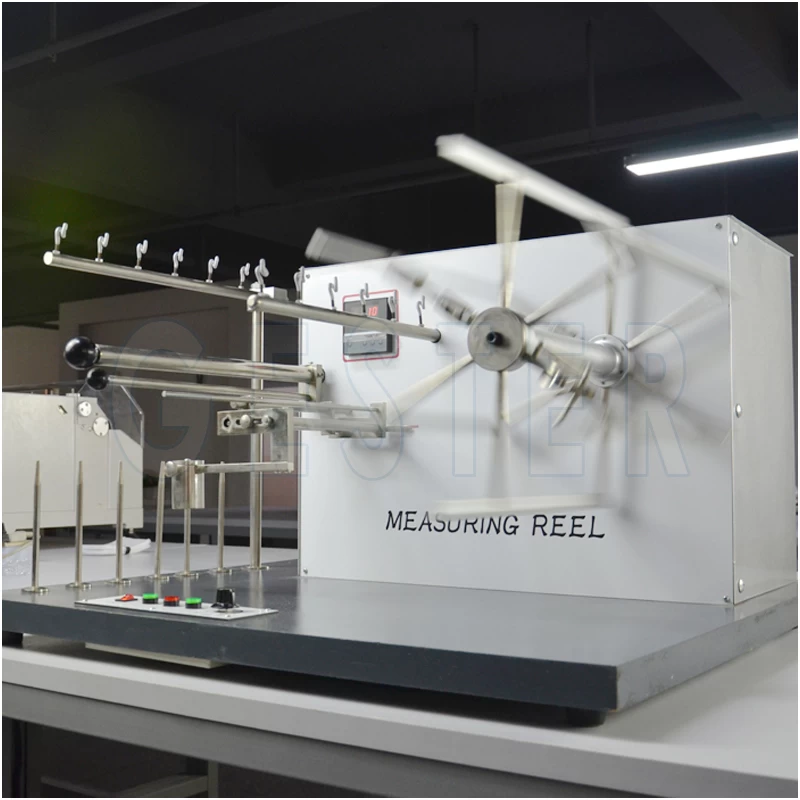

Electronic Yarn Wrap Reel Machine GT-A06
Product Introduction of yarn wrap reel
|
Application of Yarn Reel:
Electronic Yarn Wrap Reel Machine; To produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.
Features of Yarn Reel:
- Use MCU to control unit, allow numeric programming parameter (such as speed, bobbin number, reel presetting parameters are pre-settable).
- Precision DC speed regulating motor with synchromesh belt makes precisely positioning.
- Numeric speed controlling panel, make unit work consistently and stably.
- Two optional startup mode (hard startup, soft startup), do not break yarn when startup.
- Electronic limit trips, total rev number and user programmable stops.
- Closed-loop controlled and speed tracking system, Ensure to keep even speed when Voltage is variable.
Standards of Yarn Reel:
ISO 2060 ASTM D1907, GB/T4743, GB/T6838
|

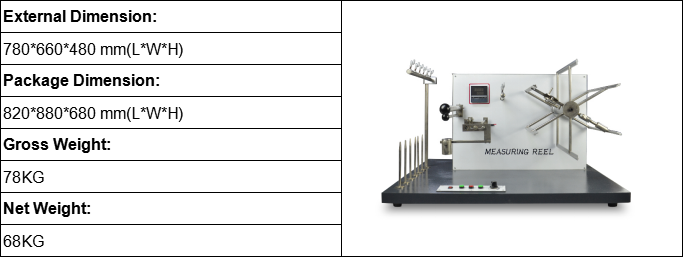

Dimensions of yarn wrap weel machine
Key Specifications of yarn wrap reel machine
Model
|
GT-A06
|
Reel circumference
|
1000mm (metric system), 54 (English system)
|
Rev of reel
|
25-300 RPM (numeric pre-settable)
|
Interval of spindle
|
65cm
|
Number of wrap
|
2-9999 Rev(pre-settable)
|
Programmable stop
|
1-9 rev(pre-settable)
|
Traveling reciprocating distance
|
35mm+/-1mm
|
Reeling pre-tension
|
0-100cN (pre-settable)
|
Dimensions
|
780 x 660 x 480mm ( L x W x H )
|
Weight
|
50kg
|
Standards
|
ISO 2060 ASTM D1907 GB/T4743 GB/T6838
|
Application Industry of yarn wrap reel machine
All kinds of yarn materials can be tested on the Electronic Yarn Wrap Reel GTA06.
