Product Name:Elevator Intelligent LCD Screen Touch Voice Control HD 1080P Temperature Measuring Alarm
Feature
●HD 1080P, Multiple formats video decoding, resolution 1920 * R.G.B * 1080.
● Support Wi-Fi 2.4G/5G dual frequency, Bluetooth 4.0.
●Android 8.1/Go system, support Linux system.
●Cloud storage for PTZ AI human shape detection, supporting face recognition and intelligent voice interaction center.
●Supports two or more points of touch, the future of wisdom is within reach, and can be triggered at the touch of a button.
● Used in residential, hotel and public spaces: intelligent control center, information display center, road condition query, weather forecast, video call, real-time news information, health service.
● Equipped with "intelligent voice control", it can realize full voice control from music, video and news on demand.
●Thermometer 32*32 thermal imaging, using high-precision infrared temperature collector, non-contact automatic body temperature detection, accurate and efficient temperature monitoring range of 30-45 degrees, accuracy HKUST+0.3 degrees.
● Adopt multiple point, multiple temperature collection, correction algorithm and other technologies to measure the temperature of the testees in real time. In the case of exceeding the set threshold, the screen displays, a warning voice is issued, and the warning can also be pushed to the user's mobile phone APP.
Parameter
|
Model
|
ANSDEN EAP-MAP333-01
|
|

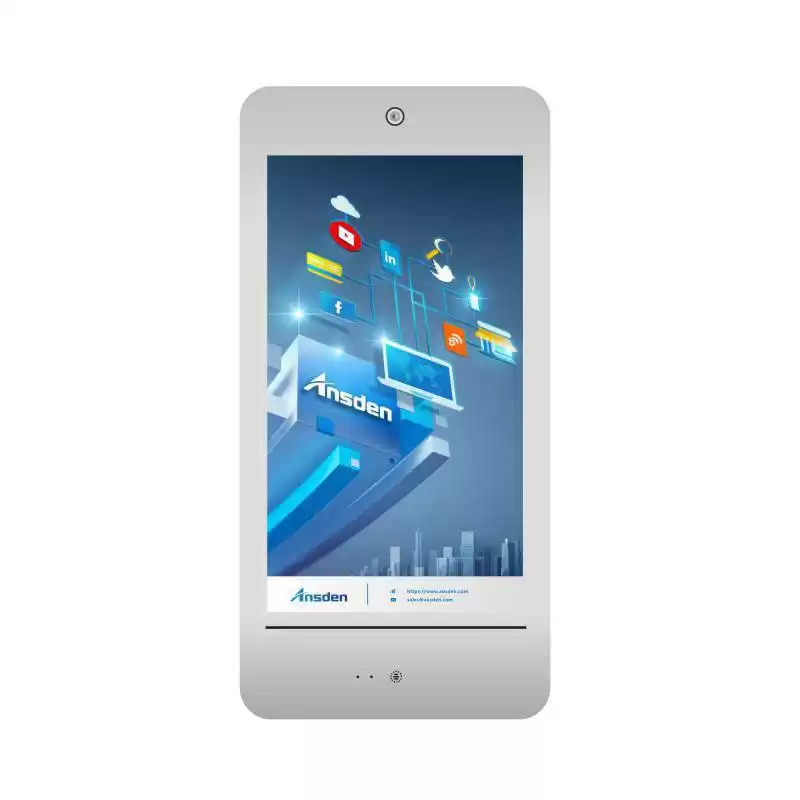

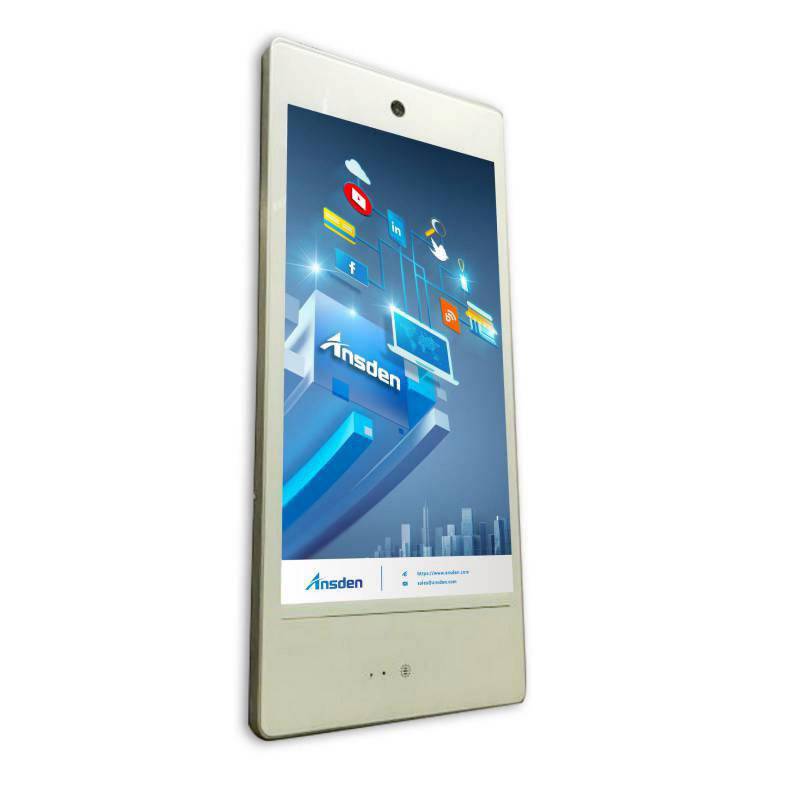

Elevator Intelligent LCD Screen
|
|
Software and hardware configuration
|
|
CPU
|
Rockchip 3288
|
|
Frequency
|
Quad-core Cortex-A17,frequency up to 1.8GHz
|
|
GPU
|
GPU Mali-T764 GPU, support AFBC (frame buffer compression)
|
|
Image processing
|
1080P Multiple formats video decoding (VC-1, MPEG-1/2/4, VP8)
|
|
Embedded high-performance 2D acceleration hardware
|
|
Support 4K 10bits H265/H264 video decoding
|
|
Support RGB, Dual LVDS, Dual MIPI-DSI, eDP display interface, resolution up to 3840*2160
|
|
RAM
|
2GB
|
|
Flash memory
|
8GB (64G optional)
|
|
Wifi
|
2.4G/5G dual-band 802.11a/b/g/n
|
|
Bluetooth
|
Bluetooth 4.0
|
|
Operating system
|
Android 8.1/Go system, support Linux system
|
|
Capacitive touch screen
|
Supports two or more points of touch
|
|
Camera
|
800W (optional)
|
|
Thermometer
|
32*32 thermal imaging (optional)
|
|
Speaker
|
2*2W
|
|
Power switch (touch)
|
Yes (optional)
|
|
Distance sensing
|
Yes
|
|
ZigBee module
|
optional
|
|
Interface
|
USB 1
|
|
USB(OTG) 1
|
|
Power/power consumption
|
|
Power input (built-in switching power supply)
|
AC 100-240V 2A Max 50/60Hz
|
|
Power consumption
|
≤25W
|
|
LCD panel
|
|
Display size
|
21.5"
|
|
Display type
|
IPS
|
|
Aspect ratio
|
16:9
|
|
Resolution
|
1920*R.G.B*1080
|
|
Brightness
|
700cd/m2 (original screen brightness)
|
|
Contrast ratio
|
1000:1 (according to screen specifications)
|
|
Viewing angle
|
178°(H) * 178°(V) (according to screen specifications)
|
|
Display color
|
16.7M
|
|
Response time
|
5ms
|
|
Working life
|
≥2500 Hour
|
|
Working storage temperature and humidity
|
|
Operating temperature and humidity range
|
0-50℃/20-90%RH
|
|
Storage temperature and humidity range
|
-20-60℃/5-90%RH
|
|
Multimedia support format
|
|
Music
|
MP3,WMA,AAC
|
|
Movie
|
MPEG-1,MPEG-2,MPEG-4,DivX,Xvid
|
|
MJPEG,H.263,H.264,H.265,HEVC,AVS
|
|
AVS+,RM,RMVB
|
|
|
JPG,BMP,JPEG,PNG
|
|
Appearance/Material/Craft
|
|
Host appearance
|
310mm*660mm
|
|
Body thickness
|
20mm
|
|
Panel glass
|
Imported (non-conductive) diamond grade nano-coated glass
|
|
Material/Process
|
Aluminum frame, plastic back shell, etc.
|
|
Dustproof and waterproof rating
|
IP65
|
|
*Product characteristics and specifications may change, and each country or region may have different product performance requirements. For the latest information, please refer to the actual product.
|

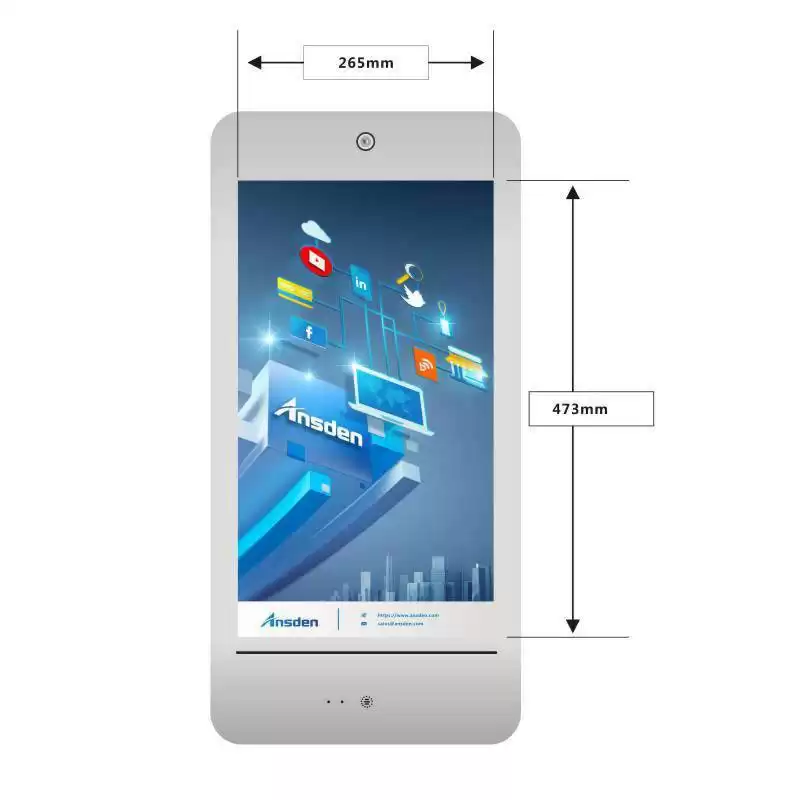

Dimension
Elevator safety solutions, elevator Internet of Things media, elevator 5G owner sharing, and after-elevator market services.

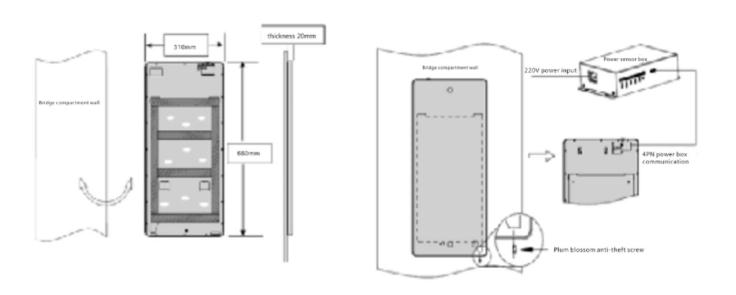

Note: This is a schematic diagram of installation.

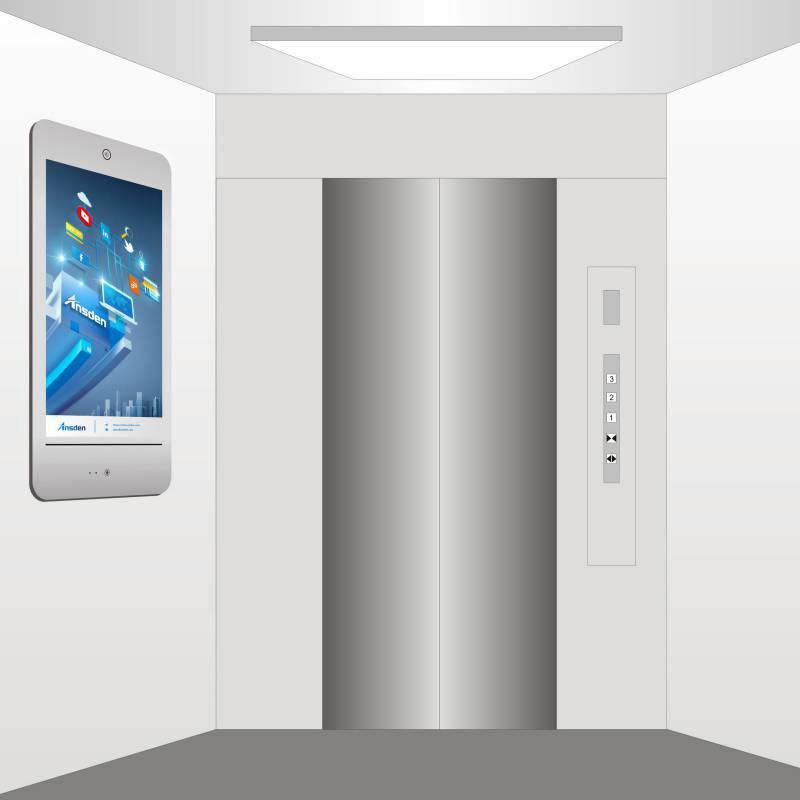

Application
Use in airports, stations, subway stations, high-speed rail stations, shopping malls, high-end properties, high-end office buildings, all elevator use units.
