Elevator Inverter Encoder PG Card
|
|
Dimensions (mm)
|
Installation size (mm)
|
Installation aperture (mm)
|
|
83*55
|
75*42
|
Φ3
|
Feature:
● Support encoder signal: open collector, push-pull, SIN/COS
● Support OA, OB quadrature signal frequency dividing output
● Automatically learn encoder direction without manual setting
PG card Description
|
Encoder Type
|
Applicable PG Card
|
Appearance
|
|

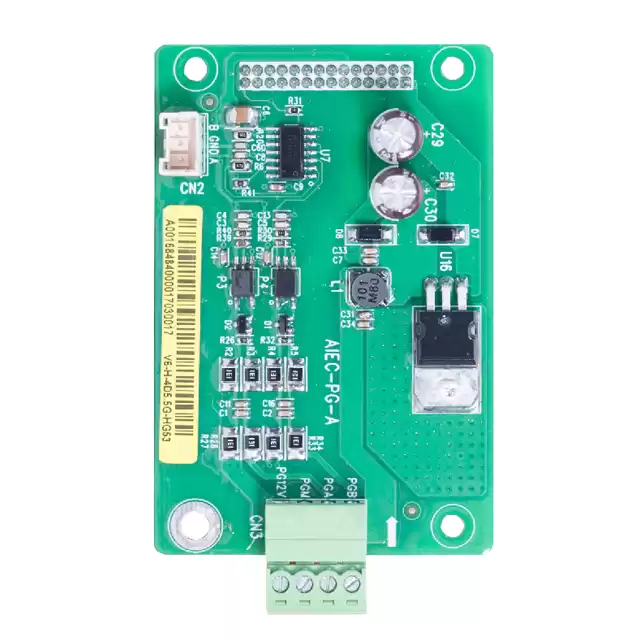

Open collector output encoder, push pull output encoder
|
AIEC−PG−A
|
|
|

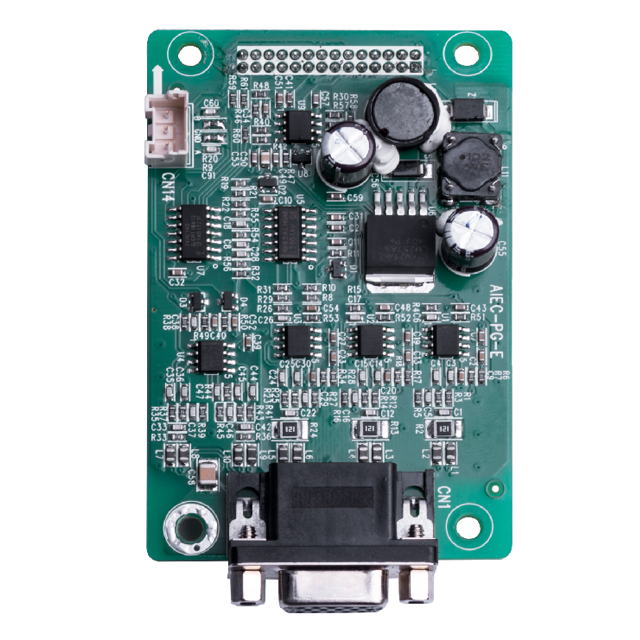

SIN/COS encoder
|
AIEC−PG−E
|
|
Definitions of the CN1 terminals of AIEC−PG−A card
|
Terminal
|
PGB
|
PGA
|
PGM
|
PG12
|
|
Definition
|
B−
|
A−
|
GND
|
12V
|

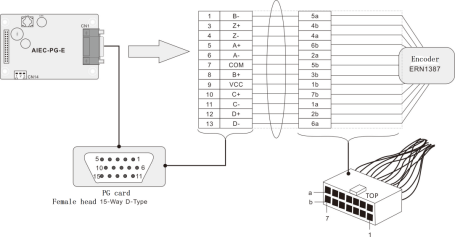

Wiring diagram of PG−E and encoder ERN1387:
Definitions of the CN1 terminals of AIEC−PG−E card
|
Terminal
|
B−
|
Z+
|
Z−
|
A+
|
A−
|
COM
|
B+
|
VCC
|
C+
|
C−
|
D+
|
D−
|
|
Definition
|
5a
|
4b
|
4a
|
6b
|
2a
|
5b
|
3b
|
1b
|
7b
|
1a
|
2b
|
6a
|
