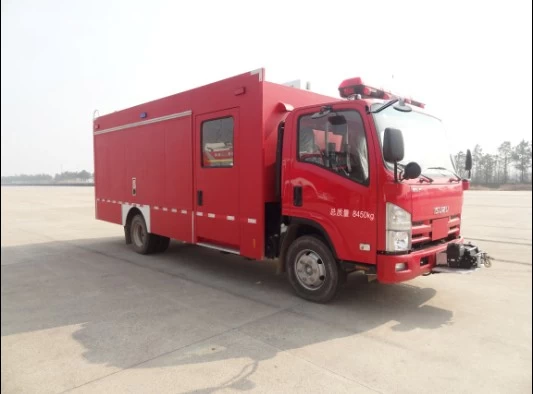

ELF fire equipments vehicle emergency fire truck
| ISUZU： |
ELF，Single Cab，139kW，Wheelbase：Two shaft 4175 mm |
| Light Mast System： |
Ground height≥8m，Work cycle time≤500S，Level rotary time≤180S，Level rotation angle:-150°to +150°，Angle of elevation≥+30°，Depression Angle≤-15°，Elevation and Depression Time≤120S. |
| Lighting lamp： |
Main Lighting lamp:4×1000 W ，Mobile lighting:2×400 W |
| Traction winch： |
Max. tension：28kN，traction:3630kgs，Max. towing speed:2.44m/min，Wire rope length:30m |
| Generator： |
HONDA Generator Set，Power:5kW，Rated voltage:220V |
| Overall Dimension： |
7130×1980×2830mm |
