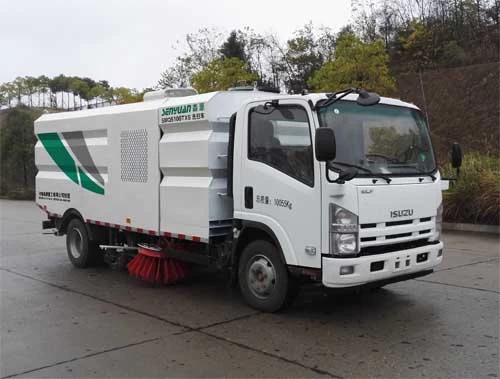

ELF Isuzu Truck Mounted Sweeper Sweeping Truck
Features:
â—† Easy operation and easy maintenance!
â—† Combined suction and sweeping, wet methods of
dust elimination, make sure swept clean and also prevent dust from spread
â—† The dustbin is made of stainless steel,
corrosion resistance and large capacity, which can last for a long time without
stop
â—† With imported PLC (programmable logic
controller) for integrated control
â—† Sub-engine drive blower and working equipment
which ensure that power can meet the work demands in any case
â—† Rotating speed of sweeping tray can be
adjusted according to working condition
â—† The sweeping broom has the protection
function and automatic reset function, which can avoid obstacles automatically
and return automatically
â—† The whole reasonable distribution structure,
nice look, complete functions and sound stability
â—† The cab with air-conditioner creates a
comfortable operating condition, and centralized electric Control box has a
human-oriented design for convenient operation
â—† Imported hydraulic-driving broom provides
powerful sweeping performance with three-step adjustable brush.
â—† Multi-level spray system can effectively
limit a second dust pollution
Main specifications:
|
Model
|
PT5100TSL
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
4175
mm
|
|
Overall Dimension
|
6925X2200X2550 mm
|
|
Cab
|
Forward control over
engine, all-steel-welded construction
|
|
Sweeping System
|
Auxiliary
engine
|
Isuzu
tech engine
|
|
Stainless
Steel Hopper Effective Volume
|
6~8
CBM
|
|
Stainless
Steel Water Tank Volume (L)
|
2000
|
|
Sweeping
Width (mm)
|
3200
|
|
Sweeping
speed (km/h)
|
3~25
|
|
Sweeping
Capacity (m2/h)
|
16500~82500
|
|
Blower
rated rotation speed (rpm)
|
1800
|
|
Blower
air capacity (m3/h)
|
8000
|
|
Blower
air pressure (Pa)
|
7000
|
|
Side
Brush Sweeping Brush Drive and Control
|
Electric
control lever and switch control, Hydraulic driving
|
|
Engine
|
Model
|
4HK1-TCG40
|
|
Type
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power
|
139
KW (195 HP)
|
|
Gearbox
|
MLD
6-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
8.25-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
100
km/h
|
|
