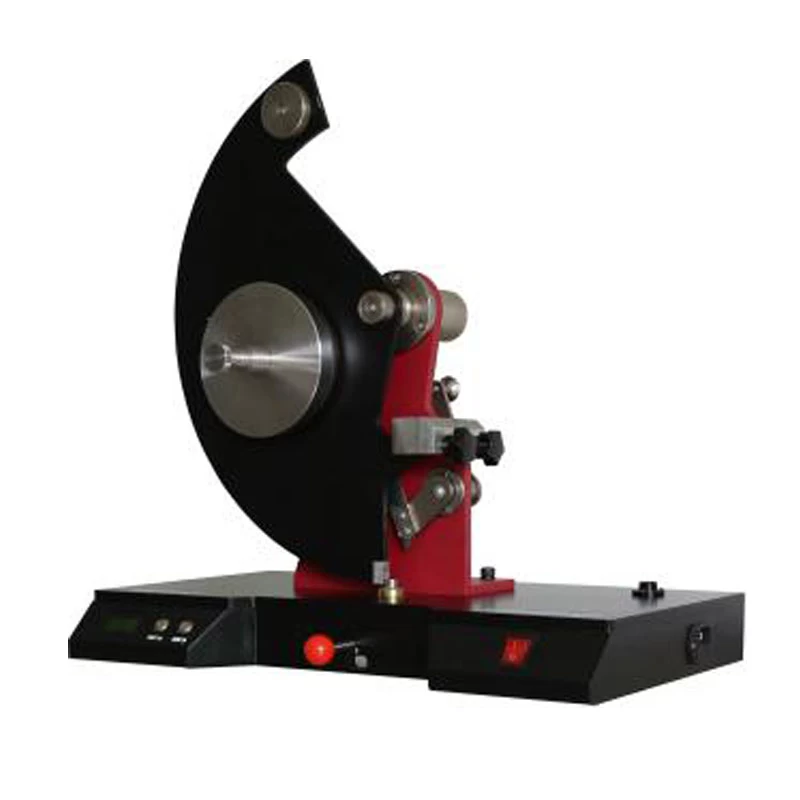

AG11-1-Elmendorf Tearing Tester (Falling-Pendulum Type)
Application Of Elmendorf
Tearing Tester (Falling-Pendulum Type)
Elmendorf Tearing Tester (Falling-Pendulum Type) is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
-
LCD display, easy to operate, high accuracy and reliable performance.
-
This instruments use MPU, automatic detection, calculation and show test result.
Standards Of Elmendorf Tearing Tester (Falling-Pendulum Type)
GB/T 3917.1, FZ/T60006, FZ/T75001, ISO1974/9290, ASTM D1424/5734 ect.
Key Specification Of Elmendorf
Tearing Tester (Falling-Pendulum Type)
|
Model
|
AG11-1 Elmendorf Tearing Tester
(Falling-Pendulum
Type)
|
|
Range of Tearing Force
|
A: 16N
B: 32N
C: 64N
|
|
Accuracy
|
≤±1
Full scale
|
|
Cut Length
|
20±0.2mm
|
|
Rip Length
|
43mm± 0.15mm
|
|
Sample size
|
100 x 63mm (LxW)
|
|
Power supply
|
AC 220V, 50/60HZ
|
|
Dimensions (LxWxH)
|
400 x 210 x 395mm
|
|
Weight
|
30Kg
|
Series products：AG11-2 Electronic Tearing Tester
