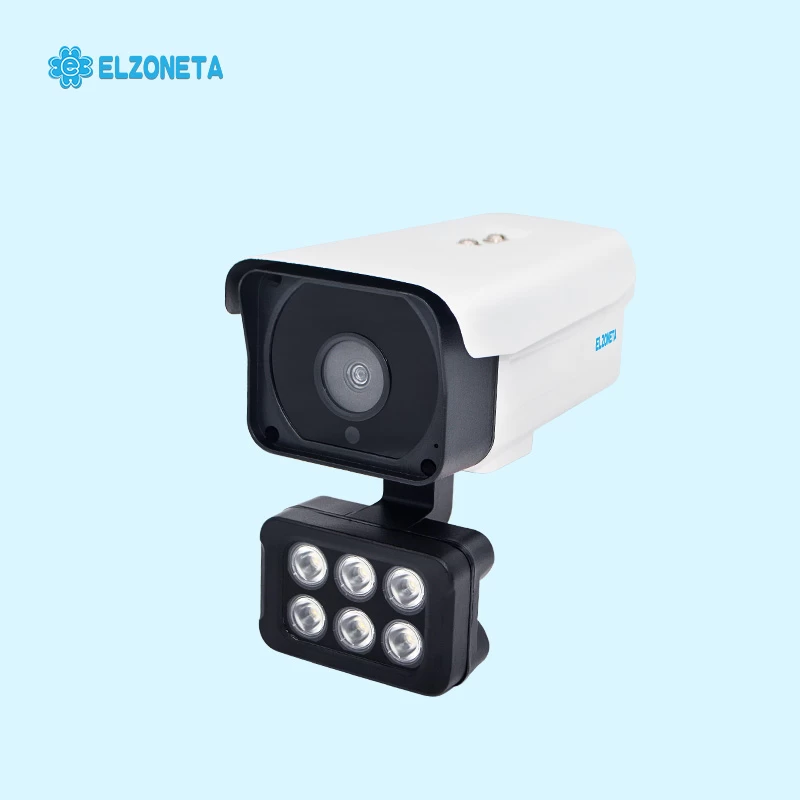

EC-G09S5-BL Black Light Bullet Camera
Dark Conqueror Colorful Night Vision CCTV Bullet Camera is a camera with new technology developed by Elzoneta. It is also the upgraded version of Star Light Security Bullet Camera.
When the night vision camera detects that there is insufficient light in the working area, it will automatically adjust warm light brightness according to the needs of the environment, so it can display a clear colorful night vision just like in the daytime even there is a darkness area.
In addition to the excellent night vision effect, this Dark Conqueror security bullet camera only needs 4-8G storage space for 24-hour recording with H.265 video compression. And the IP66 waterproof protection grade housing is suitable to install both outdoors and indoors.
Features:
1.Black Light Camera,Colorful Vision even lilttle light
2.SONY STARVIS 1/2.8"(IMX307) ,colorful 0.001Lux@ F1.2（AGC ON),black & white 0Lux(IR ON)
3.30fps lens:4mm/6mm/8mm optional
4.IR light /IR CUT /IR distance: 10-30M
5.Support color vision at night
6.Support motion detect
7.H.265+/H.265/H.264, 24 hours video recording just need 4-8G
8.Support IOS/Android remote
9.Support ONVIF
10.POE Optional
11.IP66
Specifications:
|
Camera
|
|
Model No.
|
EC-G19S5-BL
|
|
Image Sensor
|
SONY STARVIS 1/2.8"(IMX307) 2.0MP 30fps Black Light
|
|
Effective Pixels (HxV)
|
1920*1080
|
|
Signal System
|
PAL / NTSC
|
|
Mini Illumination
|
colorful 0.001Lux@ F1.2（AGC ON),black & white 0Lux(IR ON)
|
|
Lens
|
4mm/6mm/8mm optional
|
|
IR range
|
up to 30 meter
|
|
DNR
|
3D DNR
|
|
WDR
|
D-WDR
|
|
AES
|
PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec
|
|
S/N Ratio
|
> 48dB（Auto Gain Off）
|
|
Video Compression
|
H.265+ (24 hours video recording just need 4-8G)/H.265/H.264
|
|
Network
|
|
LAN
|
RJ45 10M/100M adaptive ethernet
|
|
WIFI
|
1*RJ45, 10/100Mbps,1*DC3.3V WIFI module, 2.4G frequency
|
|
POE function
|
Optional
|
|
Dual stream
|
Support
|
|
Access protocol
|
ONVIF/CGI/GB28181
|
|
Support protocol
|
HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP,GB/T28181 etc.
|
|
ROL Codec
|
Support
|
|
Corridor Type
|
Support
|
|
Mobile View
|
Support (Android,IOS)
|
|
Intelligent functions
|
Support COLORFUL VISION AT NIGHT, MOTION DETECT
|
|
General
|
|
Operating Condition
|
-20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
|
|
Power Supply
|
12V1A
|
|
Power Consumption
|
<12W
|
|
IP Rate
|
IP66
|
|
Weight
|
0.8 kg
|
|
Dimension
|
250(L)*150(W)*140(H)mm
|
