Embedded Industrial PC 6 Intel Gigabit Network Ports 2COM 6USB
Product Introduction
Embedded Computers are embedded systems engaged in edge computing and highly suitable for remote monitoring and control.
| Specifications |
optional configurations |
| Chassis |
All steel construction, powder coated brown |
Other colours such as industrial grey are available |

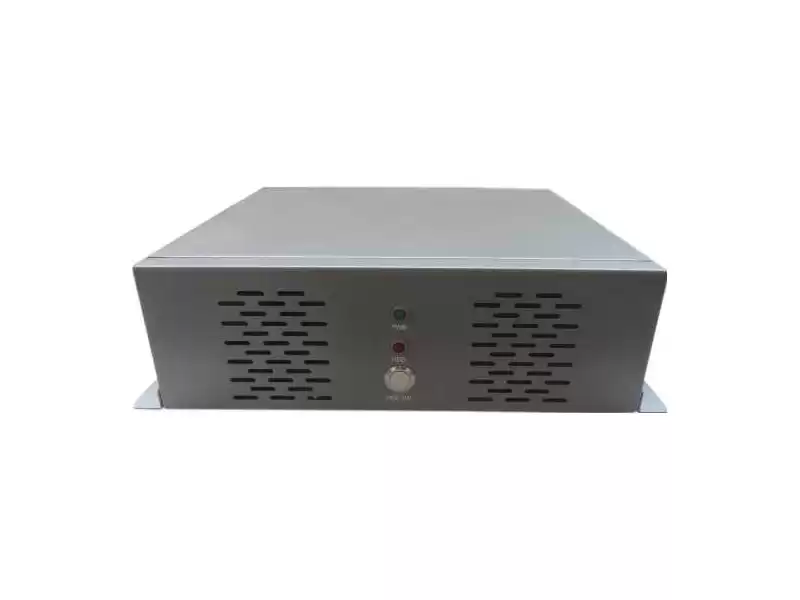

| Front |
Power Switch, Power/HDD indicator, 2FAN |
Customizable with customer logo or more serial or parallel ports |

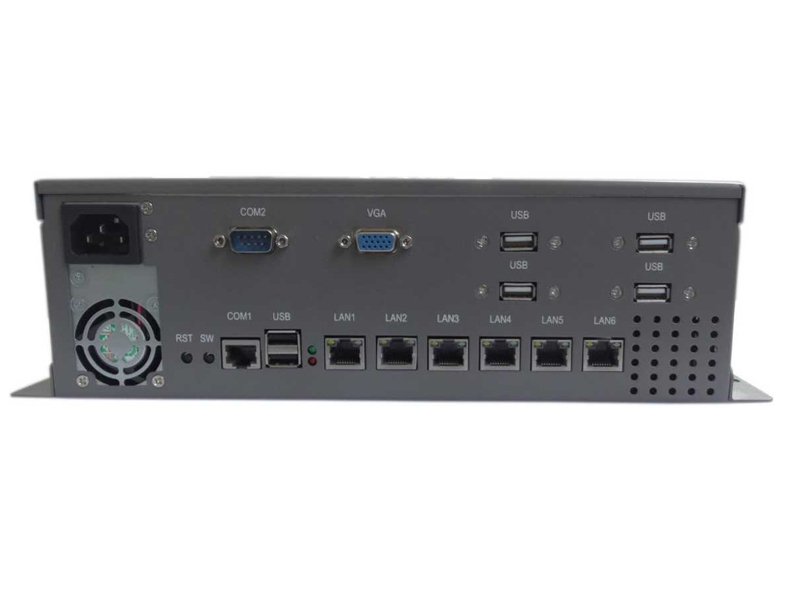

| Back |
6LAN;1COM(RJ45);1COM(DB9);VGA;6USB |
|
| Hard disk rack |
1 x 2.5" hard drive cages |
Supports MSATA and 2.5" dual hard drives |
| Adaptive Motherboard |
6LAN dedicated motherboards in Yanyue |
B75 or Z87 Chip |
| CPU/GPU |
Intel Xeon E3-1245 V2（B75) or V3(Z87) |
Support 2nd, 3rd (B75) or 4th (Z87) generation i3/i5/i7 CPU |
| Memory |
8G DDR3 |
Optional 2G/4G/16G memory |
| Hard Disk |
128G SSD(Optional 1T HDD) |
Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD |
| Interfaces |
AC input;6LAN(RJ45);2COM(1RJ45+1DB9);1VGA;6USB |
|
| Ethernet |
6LAN(Intel Gigabit network) |
|
| Display Interface |
VGA |
|
| Expand |
Mini PCIE |
|
| Size |
Handle not included:303*261.2*90mm |
Net/Gross Weight |
3.5/4KG |
| Power Supply |
200W 1U Industrial Powern Supply |
|
| Installation mode |
Bracket installation |
Product Features
■ Heat dissipation, dust and vibration resistance
■ 6LAN(Intel Gigabit network)
■ 2COM,6USB
■ B75 chip support 2,3 generation i3/i5/i7 CPU
■B75 chip support Xeon E3-1245V2 CPU
■ Z87chip support 4th generation i3/i5/i7 CPU
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

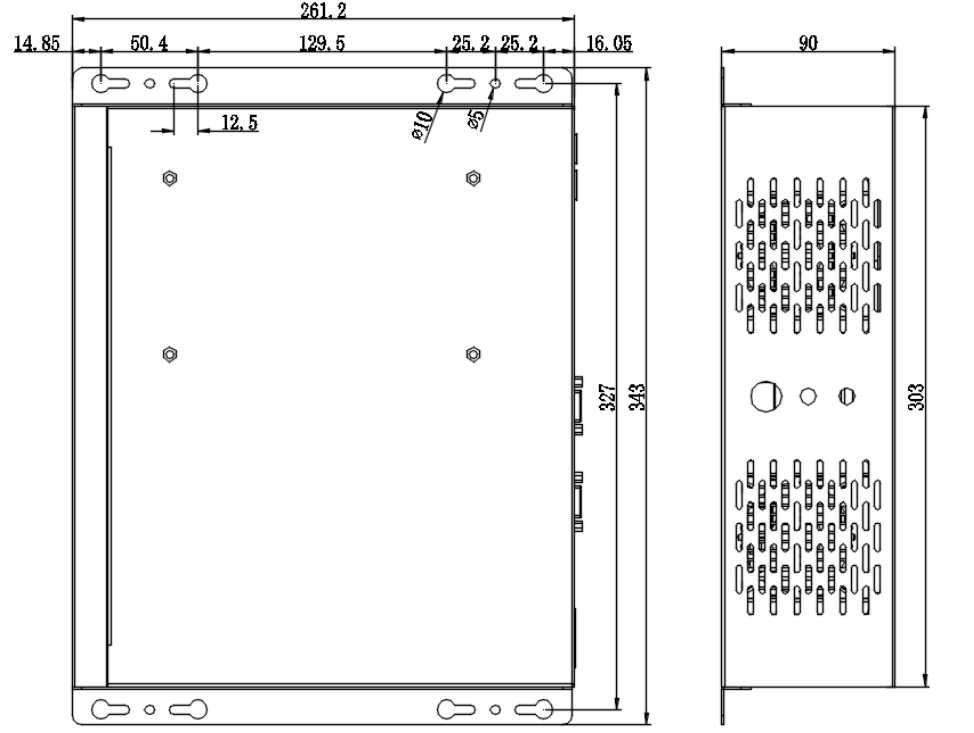

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
