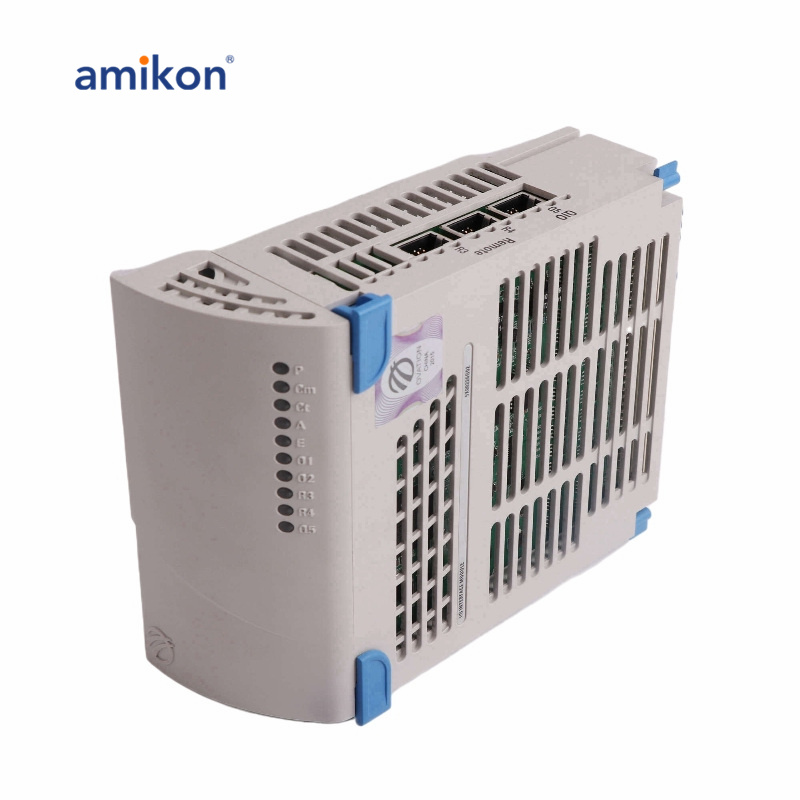

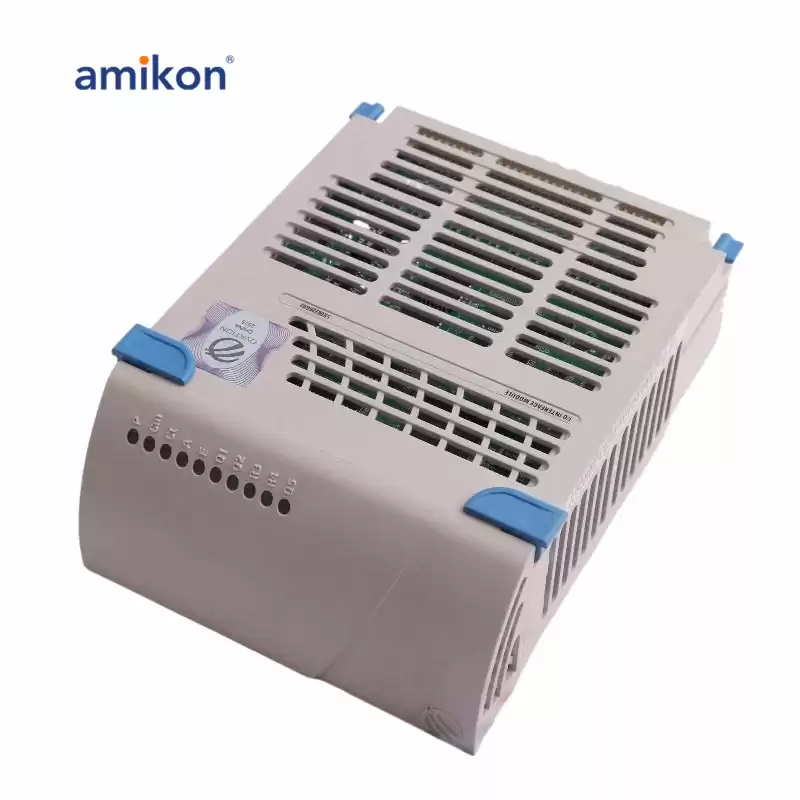

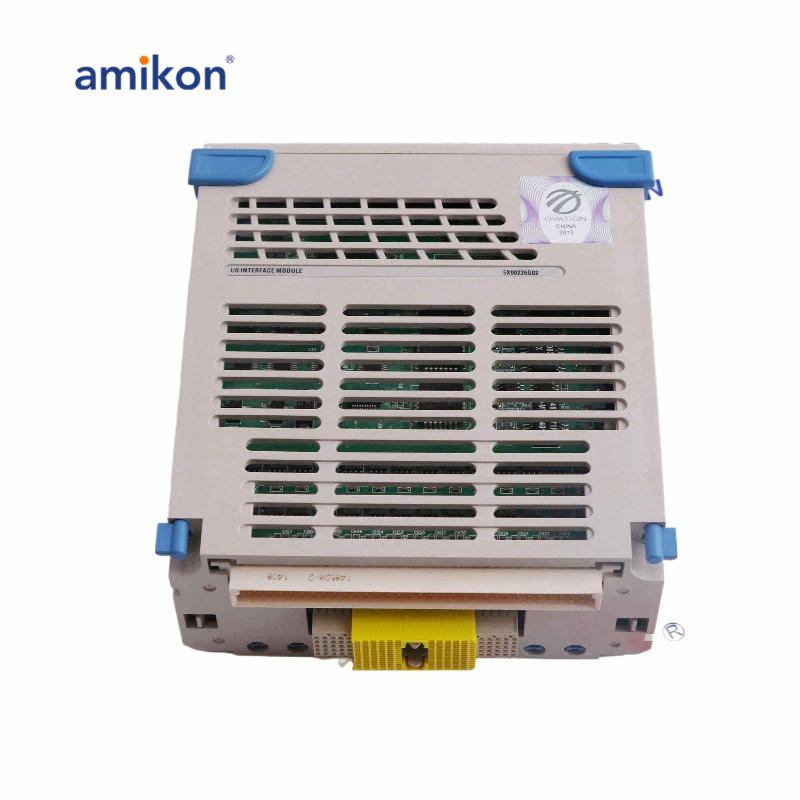

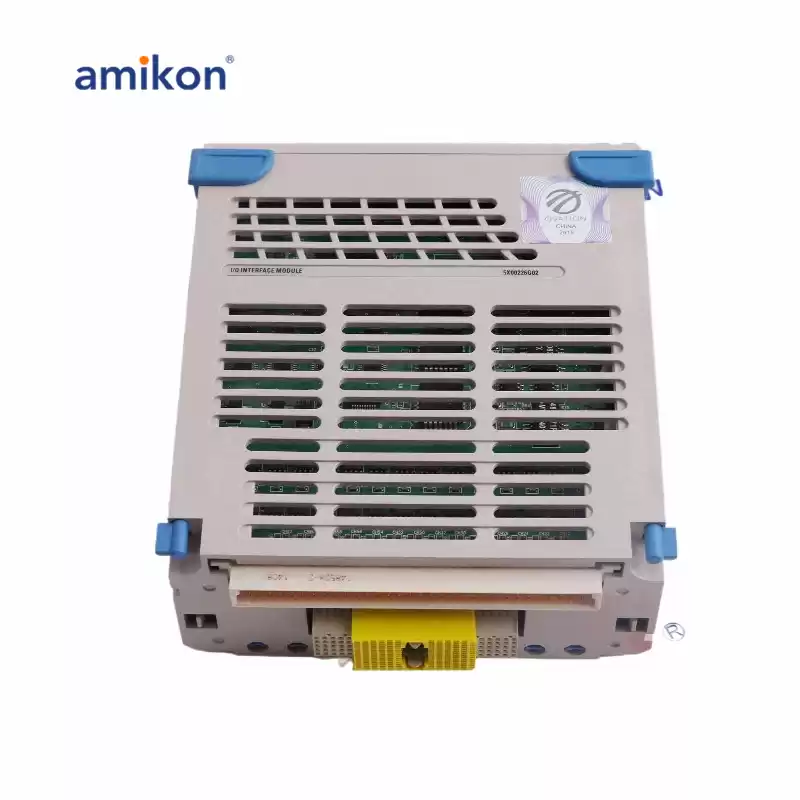

Emerson 5X00226G02 OCR 400 I/O interface module

Contact me to get the best price：

 sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

Products Detail:

Description:
5X00226G02
DISCONTINUED BY MANUFACTURER
I/O INTERFACE MODULE
SERIES: OVATION
RACK MOUNT
FACTORY WARRANTY MAY NOT APPLY

Specifications:
Part :5X00226G02
Category:PLCs/Machine Control
Subcategory:VDC Logic I/O Module
Weight:0.75 lbs

The Emerson 5X00226G02 OCR 400 I/O interface module features modular, plug-in components designed to enhance long-term process reliability. This module’s configuration and status can be managed using Word Address 13 (D in Hex): the low byte configures the module, while the high byte sets the scale for Channel 1. Status readings are available via the Point Information window on an Operator Station.

The traditional I/O subsystem includes a DIN rail-mounted I/O interface carrier that supports various components. The 5X00226G02 module comprises an I/O card and a matching I/O terminal block, with both analog and discrete I/O cards available in a standardized form factor for easy installation. I/O terminal blocks can be pre-wired on the carrier before inserting the I/O cards, streamlining setup.

Additional specifications include compatibility with displacement sensors (models 6422, 6423, 6424, and 6425) and drivers (CON 011/91, 021/91, and 041/91). The module, which is 6TE wide, supports LocalBus power rated at 12 VDC and 300 mA, and Fieldbus power of 9 to 32 VDC at 12 mA per port.
