Manufacturer/Brand：Emerson
|
Product Package：Original Package
|
|
Part Number：775XD11NAWA3WK9
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Weight：0.36kg
|
Dimensions ：16cmx16.8cmx2.3cm
|

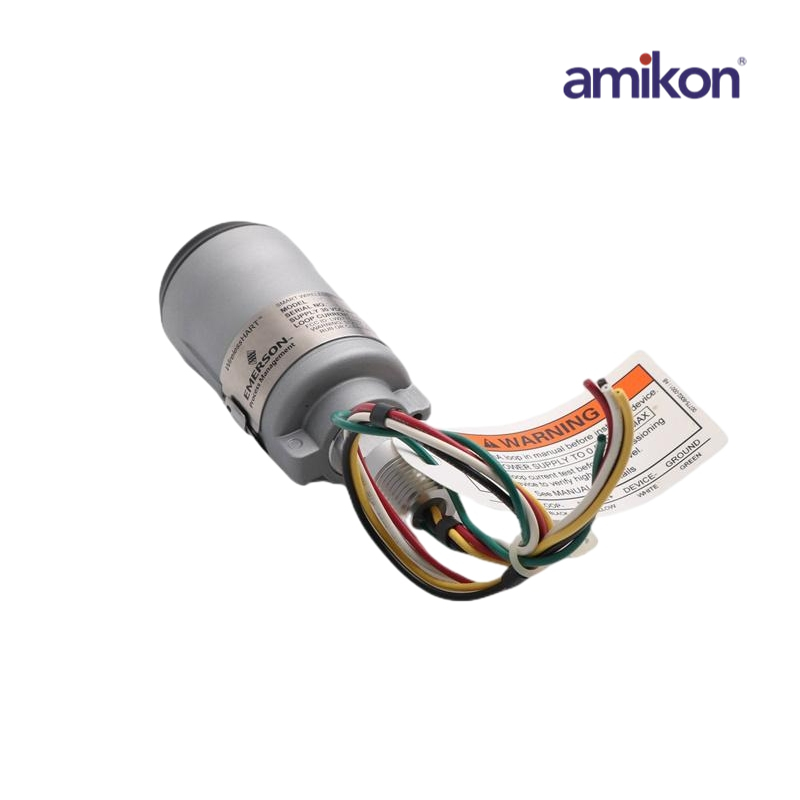

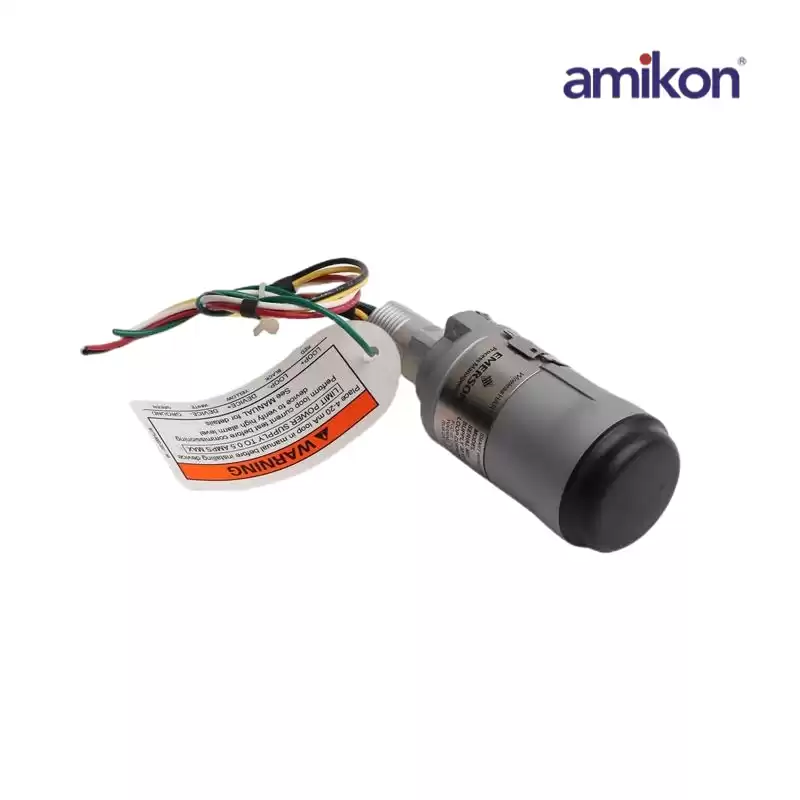

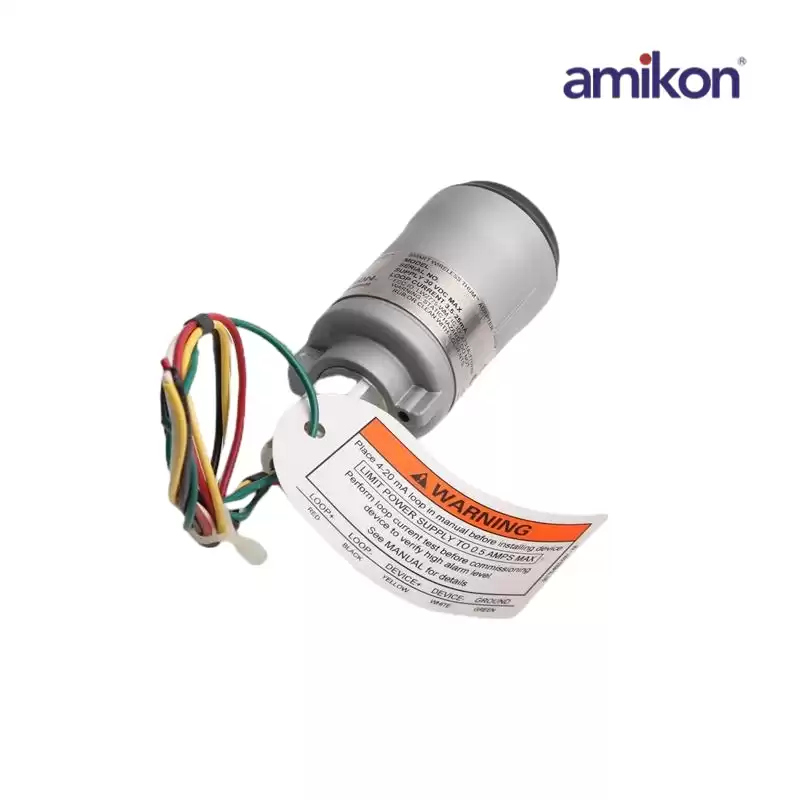

775XD11NAWA3WK9 is Wireless 775 THUM™ Adapter.The THUM Adapter is connected to a HART sub-device. With simple HART configuration, the THUM transmits the HART information from the sub-device into the Wireless network.
The THUM Adapter is connected into a powered 4–20 mA loop, powering itself by scavenging power. The THUM Adapter causes a voltage drop across the loop. The drop is linear from 2.25 volts at 3.5 mA to 1.2 volts at 25 mA, but does not effect the 4–20 mA signal on the loop. Under fault conditions, the maximum voltage drop is 2.5 volts.775XD11NAWA3WK9 is Wireless 775 THUM™ Adapter.The THUM Adapter is connected to a HART sub-device. With simple HART configuration, the THUM transmits the HART information from the sub-device into the Wireless network.
The THUM Adapter is connected into a powered 4–20 mA loop, powering itself by scavenging power. The THUM Adapter causes a voltage drop across the loop. The drop is linear from 2.25 volts at 3.5 mA to 1.2 volts at 25 mA, but does not effect the 4–20 mA signal on the loop. Under fault conditions, the maximum voltage drop is 2.5 volts.
