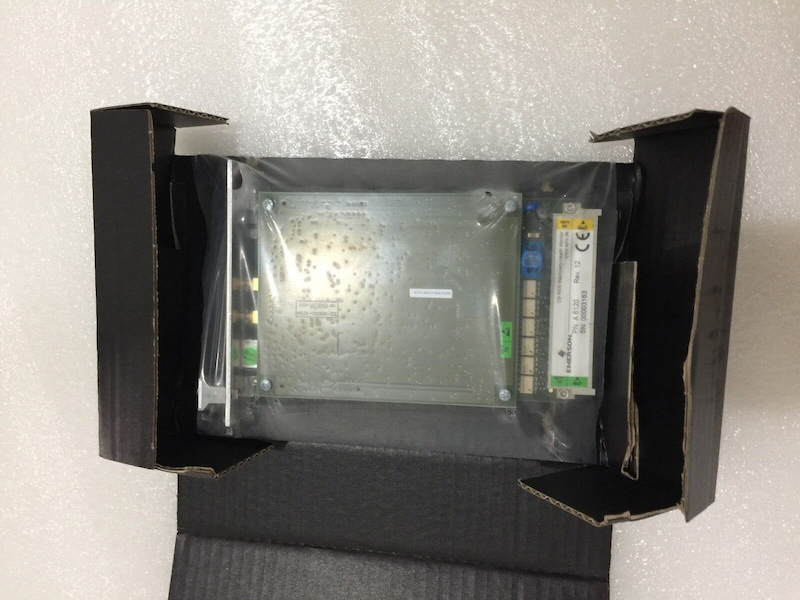

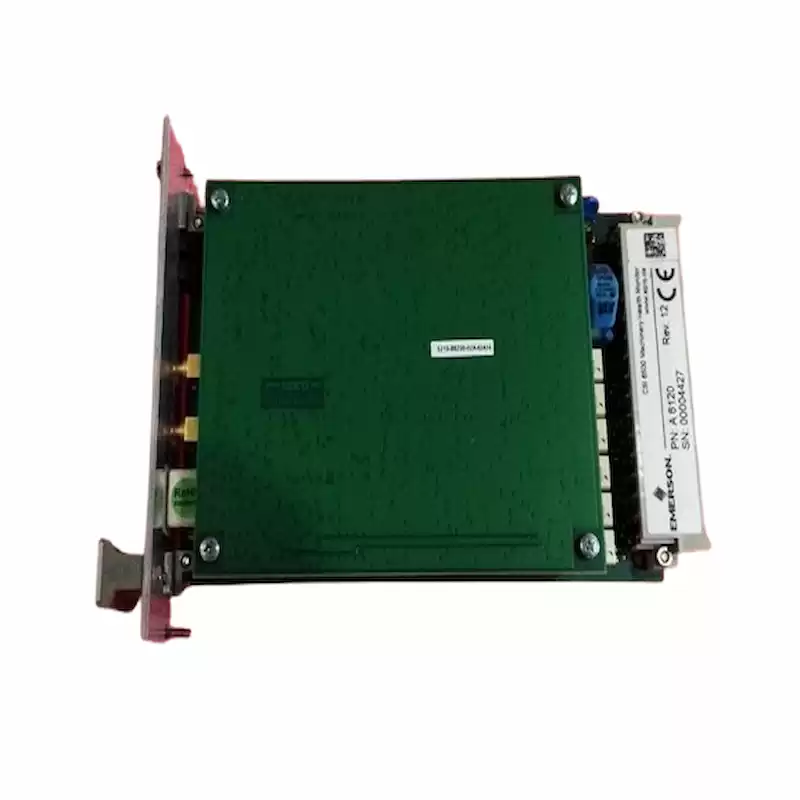

Emerson A6120 Case Seismic Vibration Monitor

CSI A6120 Case Seismic Vibration Monitor for CSI 6500 Machinery Health Monitor The Case Seismic Vibration Monitor, for use with electromechanical seismic transducers, is designed for high reliability for the plant’s most critical rotating machinery.$2,000.00



Emerson A6120 Case Seismic Vibration Monitor



The Case Seismic Vibration Monitor, for use with electromechanical seismic transducers, is designed for high reliability for the plant’s most critical rotating machinery. This 1-slot monitor is used together with other CSI 6500 monitors to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery. Case measurements are common in nuclear power applications.



The main functionality of the Case Seismic Vibration Monitor is to accurately monitor case seismic vibration and reliably protect machinery by comparing vibration parameters against alarm set points, driving alarms and relays.



Case seismic vibration sensors, sometimes called case absolute (not to be confused with shaft absolute), are electro-dynamic, internal spring and magnet, velocity output type sensors. The case seismic vibration monitor provides overall vibration monitoring for the bearing case in velocity, mm/sec (in/sec).



Since the sensor is mounted on the case, the resultant vibration of the case could be influenced by many different sources including rotor movement, foundation and case stiffness, blade vibration, adjacent machines, etc.



When replacing field sensors, many sensors are being updated with piezoelectric type sensors that provide internal integration from acceleration to velocity. The piezoelectric-type sensor is a newer style electronic sensor, instead of an older electromechanical sensor. The Case Seismic Vibration Monitor is backward-compatible to the electro-mechanical sensors installed in the field.



The CSI 6500 Machinery Health Monitor is an integral part of PlantWeb® and AMS Suite. PlantWeb provides operations integrated machinery health combined with the Ovation® and DeltaV™ process control system. AMS Suite provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early.



Emerson A6120

Technical Specifications

Part Number A6120
Ordering Information A6120
Product Catalog CSI 6500
Description Case Seismic Vibration Monitor
Inputs -5 - +15 VDC
Outputs 0 - 10 VDC
Dimension 30.0 mm × 128.4 mm × 160.0 mm
Weight 320 g





100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com




Product Tags Emerson A6120          Case Seismic Vibration Monitor          CSI A6120
