Emerson A6500-UM Universal Measurement Card

The A6500-UM Universal Measurement Card is a component of the AMS 6500 ATG machinery protection system.Status:Brand New · Warranty:one year · Contact person: Julian Lin. Mobile phone: +86-18050017653. Email: sales4@nseauto.com



Emerson A6500-UM Universal Measurement Card

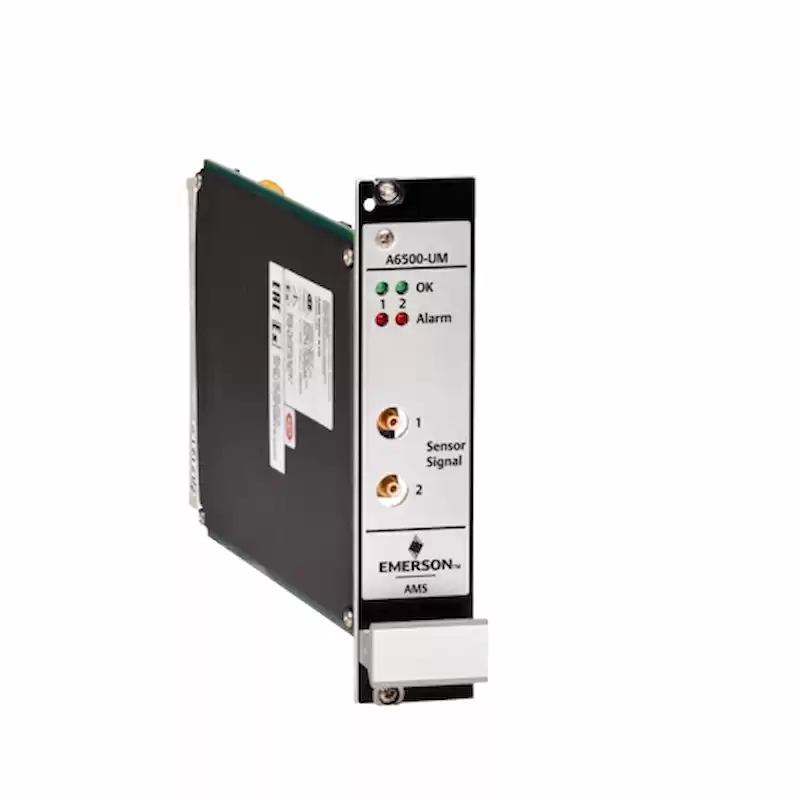

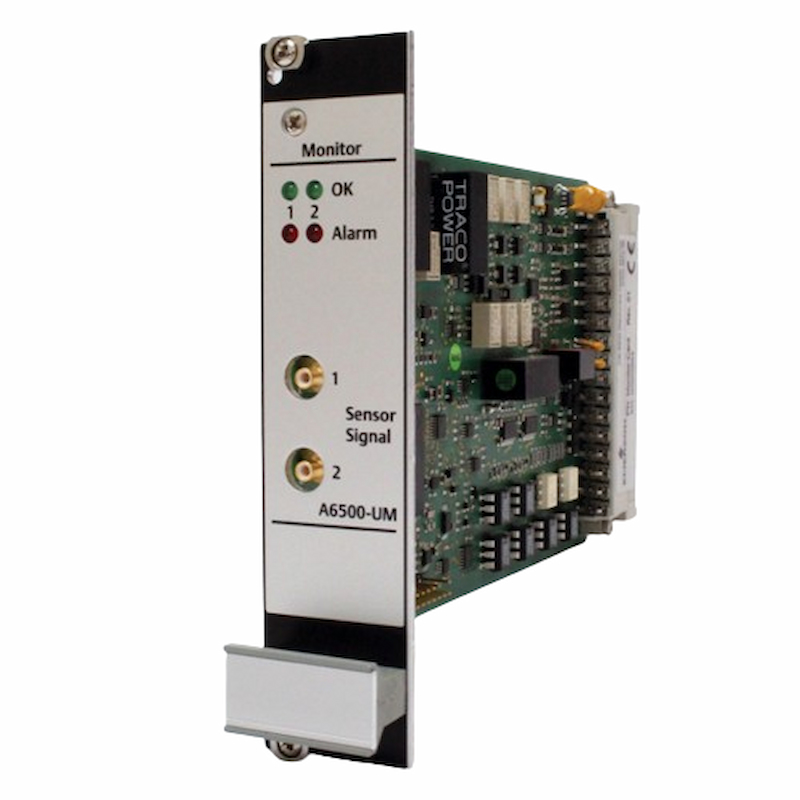

The A6500-UM Universal Measurement Card is a component of the AMS 6500 ATG machinery protection system.



The card is equipped with 2 sensor input channels (independent or combined, as per chosen measurement mode) working with most common sensors as eddy-current, piezoelectric (accelerometer or velometer), seismic (electro dynamic), LF (low frequency bearing vibration), Hall-effect and LVDT (in combination with A6500-LC) sensors. Besides this, the card contains 5 digital inputs and 6 digital outputs.



The measured signals are transmitted through the internal RS485 bus to the A6500-CC Com Card and converted to Modbus RTU and Modbus TCP/ IP protocols for further transmission to host computers or analysis systems. In addition, the Com Card provides the communication through the USB socket at the face plate for the connection to PC/ laptop for the configuration of cards and for visualization of measuring results. Apart from that, the measuring results can be output through analog outputs 0/4 - 20 mA. These outputs have a common ground and are electrically isolated from system supply.



The operation of the A6500-UM Universal Measurement Card is performed in the A6500-SR System Rack, which also provides connection of supply voltages and signals.



The A6500-UM Universal Measurement Card provides the following functions:



· Shaft Absolute Vibration



· Shaft Relative Vibration



· Shaft Eccentricity



· Case Piezoelectric Vibration



· Thrust and Rod Position, Differential and Case Expansion, Valve Position



· Speed and Key



· Two-channel, 3U size, 1-slot plugin module decreases cabinet space requirements in half from traditional four-channel 6U size cards.



· API 670 compliant, hot swappable module.



· Remote selectable limit multiply and trip bypass.



· Front and rear buffered and proportional outputs, 0/4 – 20mA output.



· Self-checking facilities include monitoring hardware, power input, hardware temperature, sensor, and cable.



Technical Specifications

Part Number A6500-UM
Ordering Information A6500-UM
Product Catalog AMS 6500 ATG system
Description Universal Measurement Card
Voltage -1 V to -22 V
Current 0 to 8 mA
Dimension 100 mm × 160 mm × 30 mm
Weight 200 g
