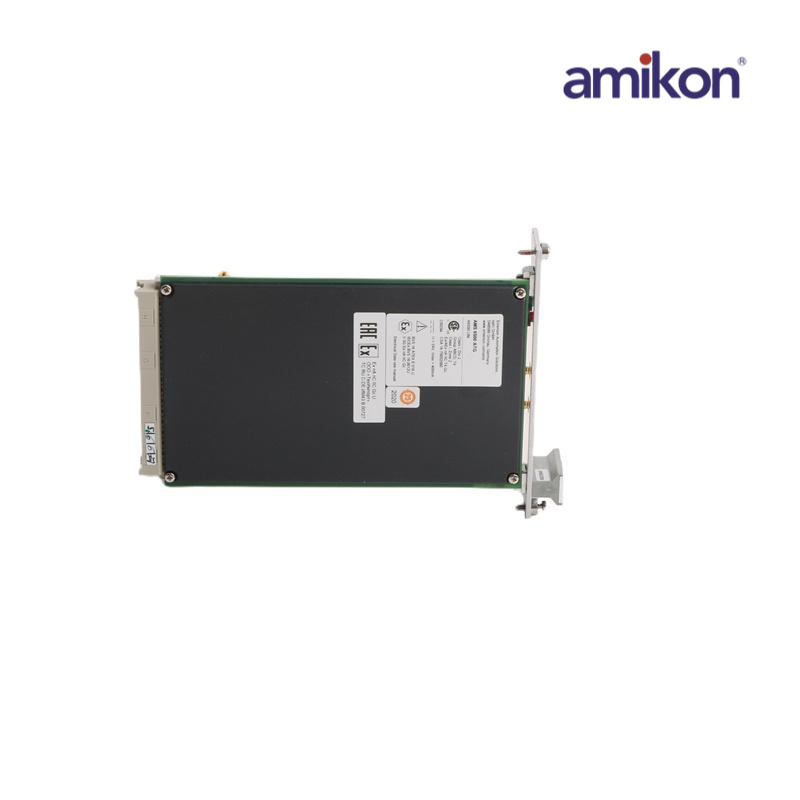

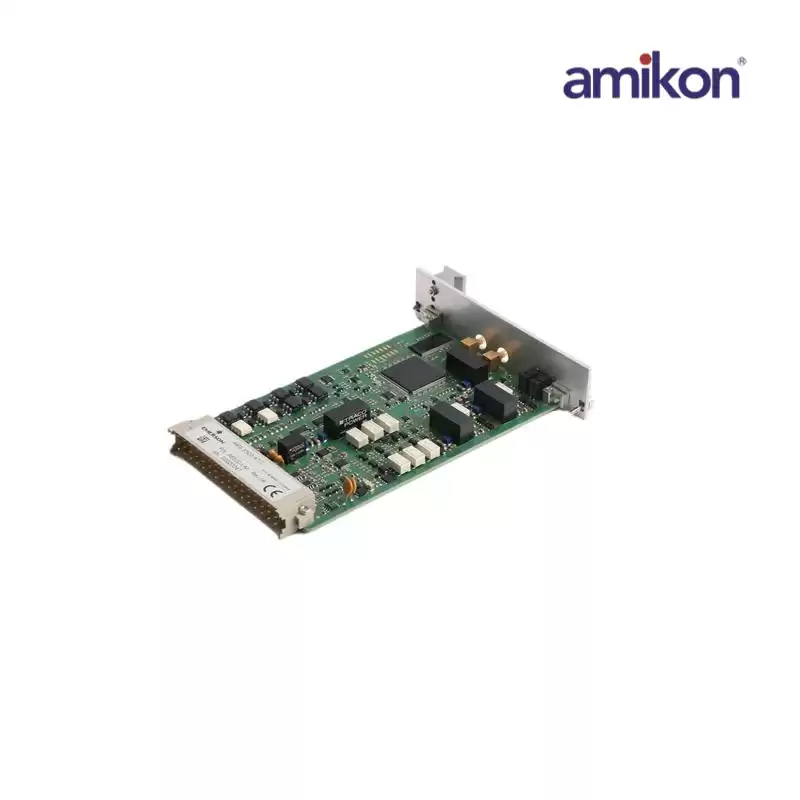

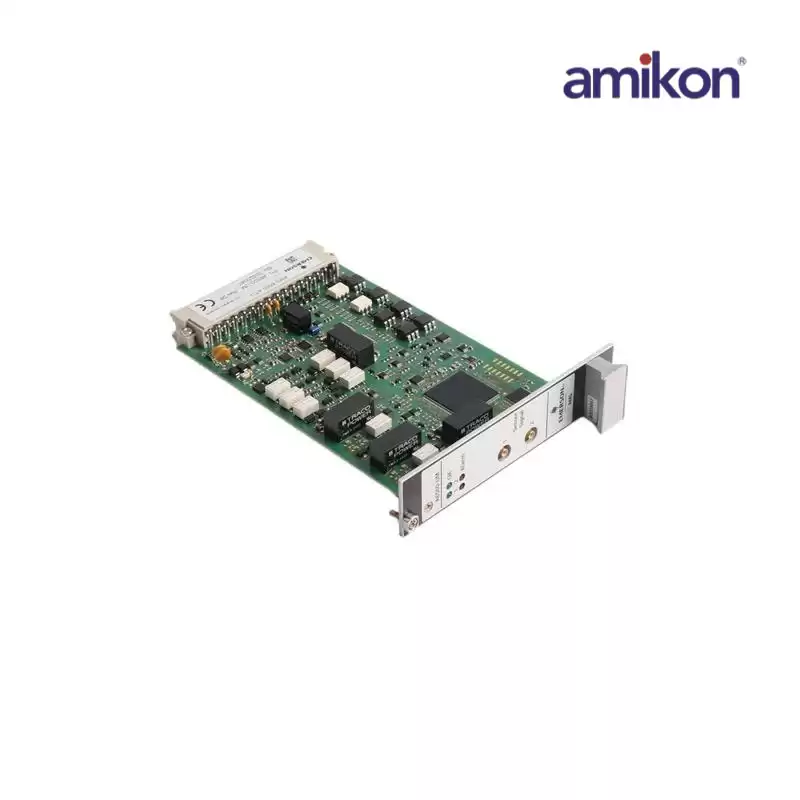

EMERSON A6500-UM Universal Measurement Card

Manufacturer/Brand：Emerson

Product Package：Original Package

Part Number：A6500-UM

Shipping Term：TNT DHL FEDEX EMS UPS

Weight：0.39g

Dimensions ：22cmx13.6cmx5cm

Input Voltage Range：35to 5.5 VDC

Operation Temperature：-30 to 60°C

The A6500-UM Universal Measurement Card is a component of the AMS 6500 ATG machinery protection system. The card is equipped with 2 sensor input channels(independent or combined, as per chosen measurement mode) working with most common sensors as eddy-current, piezoelectric (accelerometer or velometer), seismic (electro dynamic), LF (low frequency bearing vibration), Hall-effect and LVDT (in combination with A6500-LC) sensors. Besides this, the card contains 5 digital inputs and 6 digital outputs. The measured signals are transmitted through the internal RS 485 bus to the A6500-CC Com Card and converted to Modbus RTU and Modbus TCP/IP protocols for further transmission to host computers or analysis systems. In addition,the Com Card provides the communication through the USB socket at the face plate for the connection to PC/ laptop for the configuration of cards and for visualization of measuring results. Apart from that, the measuring results can be output through analog outputs 0/4 - 20 mA. These outputs have a common ground and are electrically isolated from system supply. The operation of the A6500-UM Universal Measurement Card is performed in the A6500-SR System Rack, which also provides connection of supply voltages and signals.
