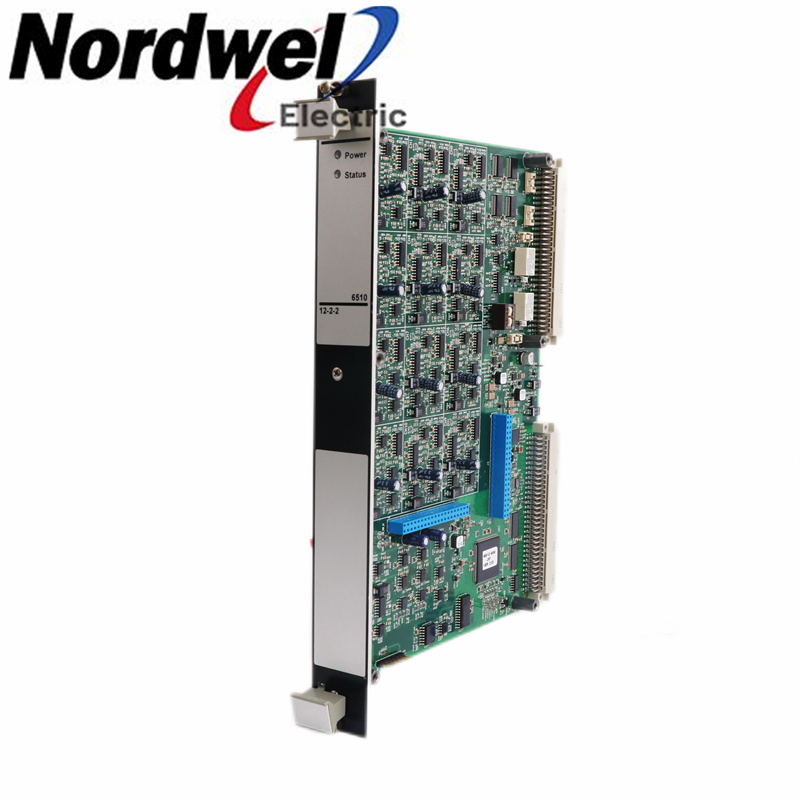

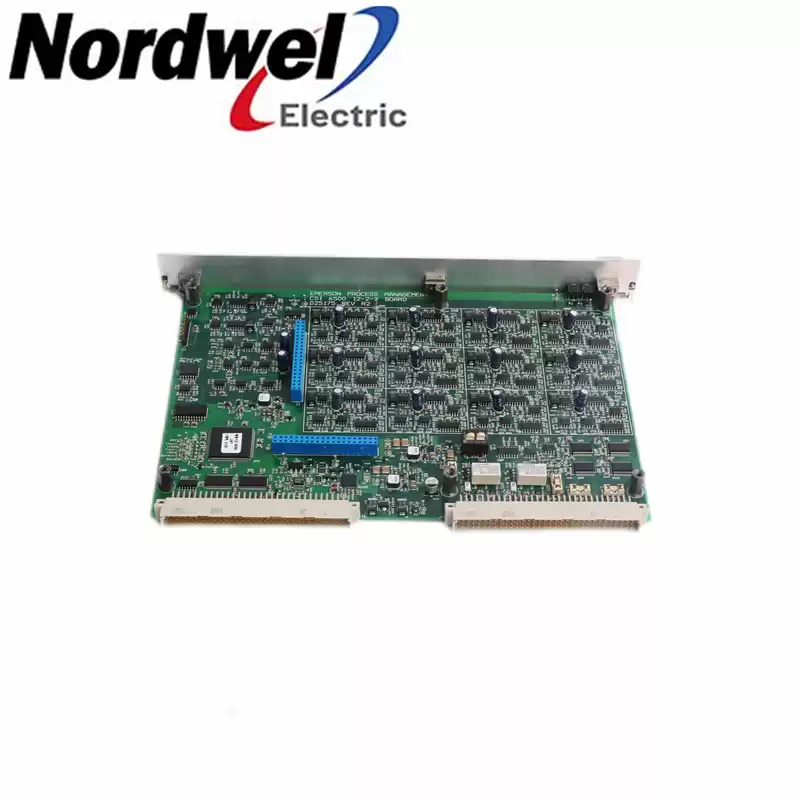

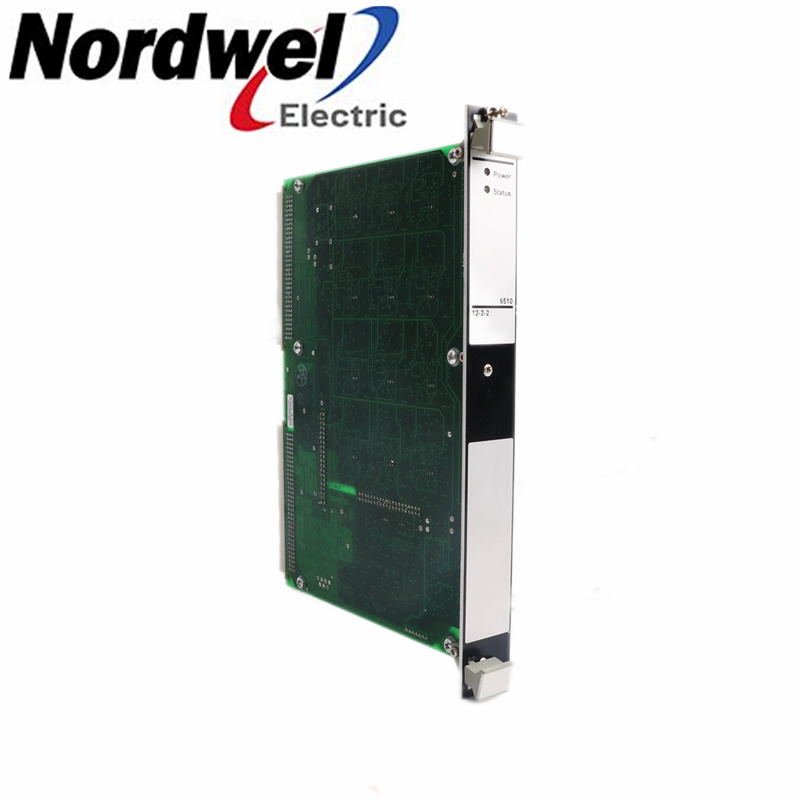

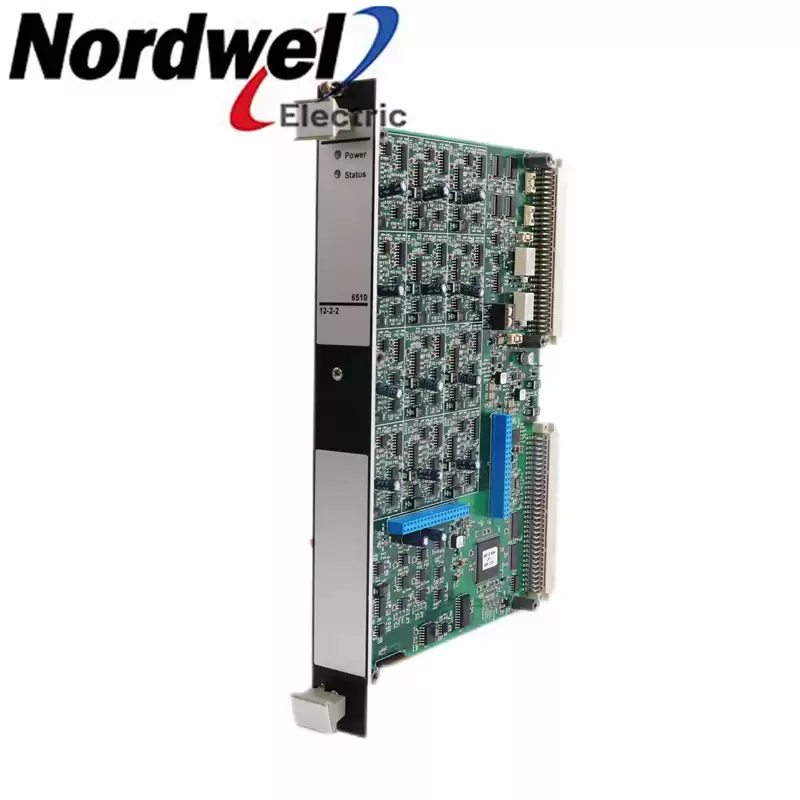

EMERSON | A6510 A6510-T | Sensor Input Cards
-
Dynamic Analog Channels 12 Dynamic RMS Inputs
-
Dynamic Voltage Input ±24V AC + DC Max. / ±Ranges; 0.5, 1, 5,
-
10 & 24 Vpk
-
Dynamic Voltage Input Impedance 1 MΩ (differential)
-
Dynamic Voltage Input Sensor Examples Eddy Current Sensors (-24V power
-
available), Other Dynamic Position
-
Sensors; 4-20ma, Basis Weight, Pressure,
-
Temperature, … plus DC Process
-
Sensor Power/ Impedance 4ma at 22V / 500 KΩ (single ended)
-
Sensor Power Sensor Examples Piezo Accelerometer, Piezo Velocity
-
Sensor, Dynamic Pressure Sensor
-
Dynamic Channel Scan 2 Paired Channels Simultaneous
-
Bandwidth 0.2Hz to 40kHz
-
AC Coupling Corner Frequency 0.5Hz
-
RMS Channel Accuracy 1% at full span 30Hz to 40kHz
-
2.5% at full span 20Hz to 40kHz
-
5% at full span 10Hz to 40kHz
