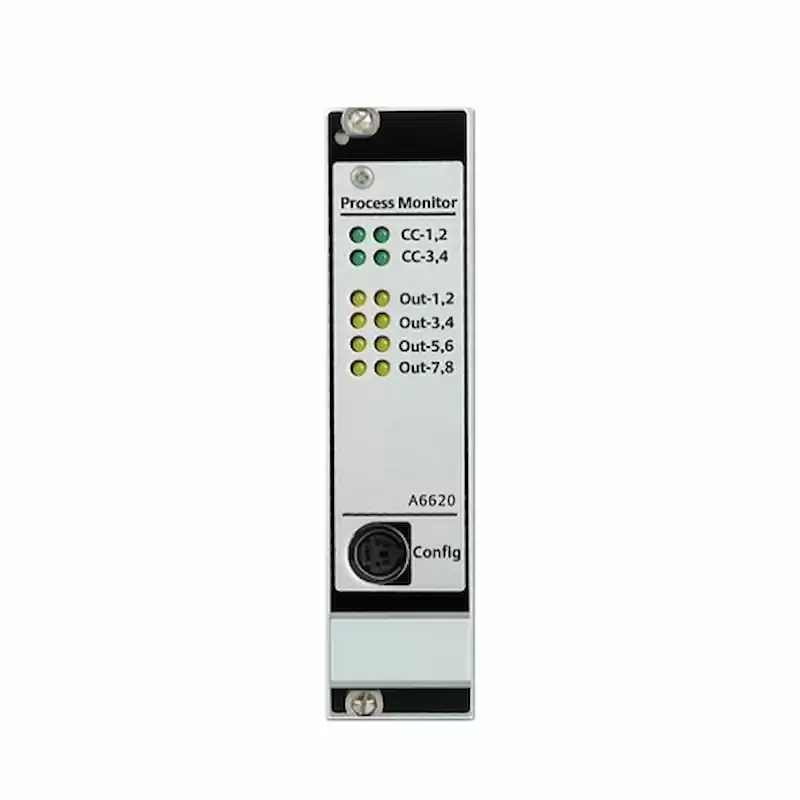

Emerson A6620 4-channel Process Input Monitor
The Process Input Monitor is designed for high reliability for the plant’s most critical rotating machinery monitoring process inputs such as temperature, pressure, load, etc. This 1-slot monitor is used together with other CSI 6500 monitors to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery.
The main functionality of the Process Input Monitor is to accurately monitor process parameters and reliably protect machinery by comparing parameters against alarm setpoints, driving alarms and relays.
Process inputs can be ±1 V; ±10 V or 0/4-20 mA. The CSI 6500 Machinery Health Monitor is an integral part of PlantWeb® and AMS Suite.
Technical Specifications
| Part Number |
A6620 |
| Ordering Information |
A6620 |
| Product Catalog |
CSI 6500 |
| Description |
4-channel Process Input Monitor |
| Inputs |
±1 V; ±10 V or 0/4-20 mA |
| Outputs |
Max. 6 W, 250 mA at 24 VDC |
| Dimension |
30.0 mm × 128.4 mm × 160.0 mm |
| Weight |
320 g |
