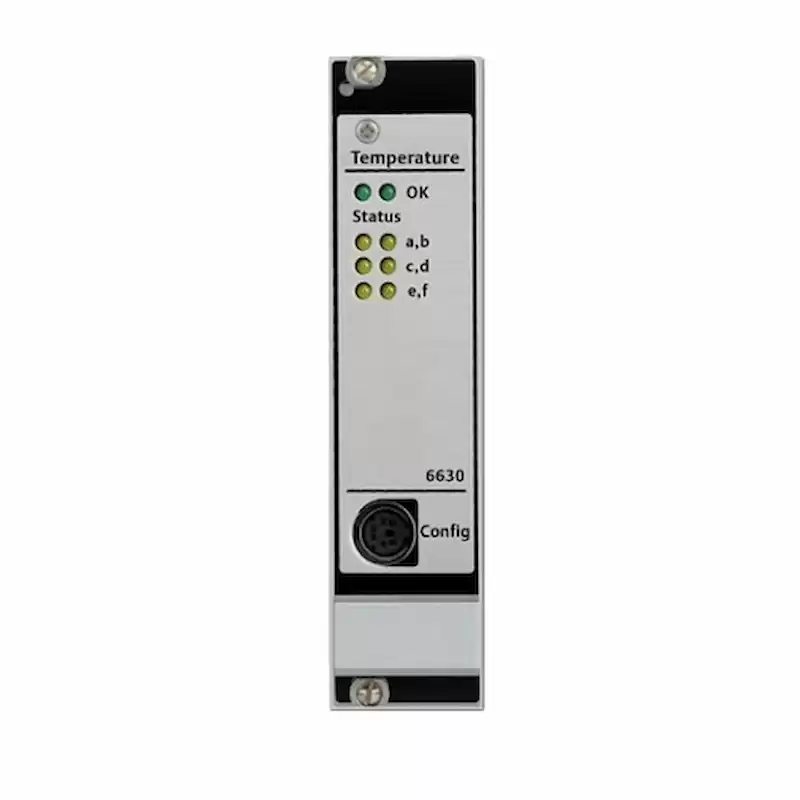

Emerson A6630 Temperature Monitor

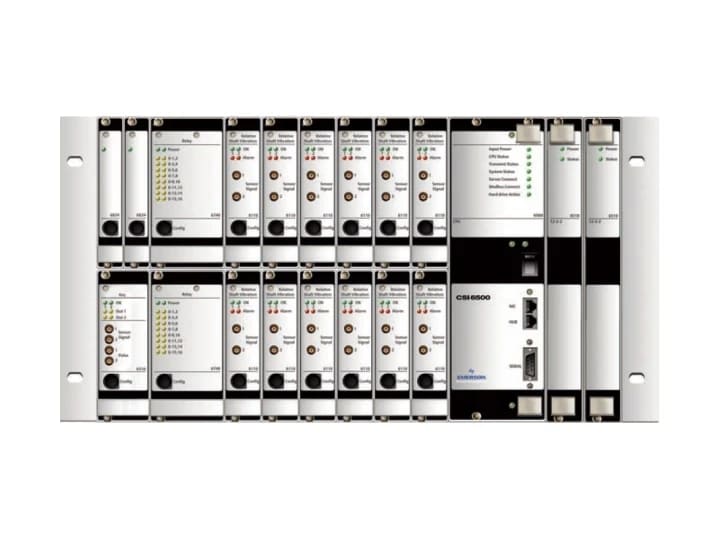

The A6630 Temperature Monitor is designed for extremely high reliability for the plant’s most critical rotating machinery. This 1-slot multi-channel monitor is used together with other AMS 6500 monitors to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors, and hydro turbo machinery.
The main function of the Temperature Monitor is to input RTD and thermocouple temperature sensors and confidently protect machinery by comparing temperature levels against alarm setpoints as well as driving alarms and relays. Temperature monitoring along with vibration and position measurements provides better fault confirmation, which leads to increased availability and safety.
Machinery protection applications include radial and thrust bearing metal temperature. Important process temperature values include generator, rotor, and stator winding temperature, oil supply temperature, steam temperature, and ambient temperature.
Technical Specifications
| Part Number |
A6630 |
| Ordering Information |
A6630 |
| Product Catalog |
CSI 6500 |
| Description |
Temperature Monitor |
| Inputs |
24 VDC |
| Outputs |
48 VDC |
| Dimension |
30.0 mm × 128.4 mm × 160.0 mm |
| Weight |
320 g |
