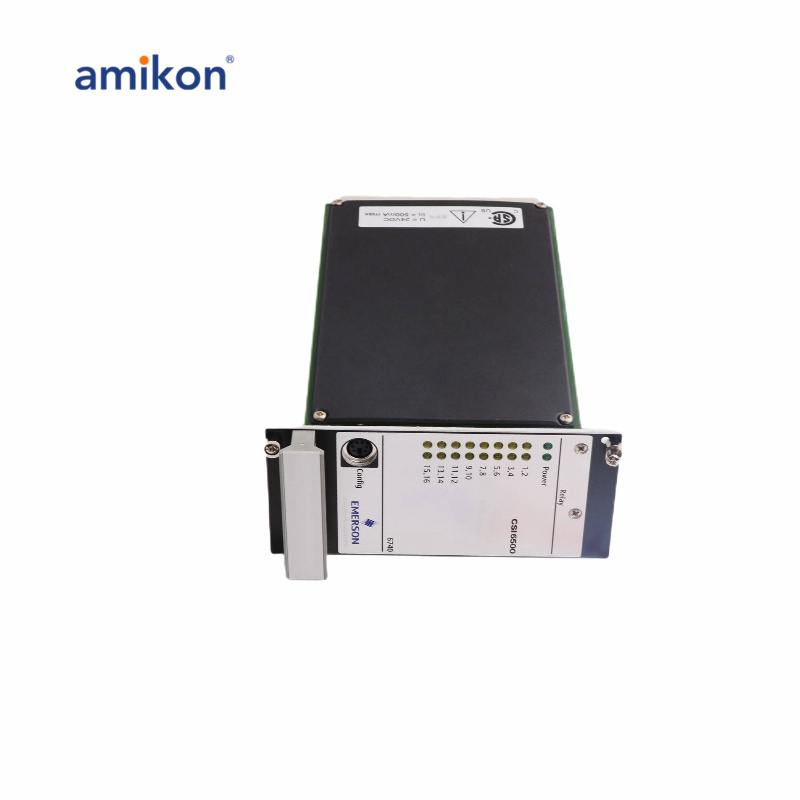

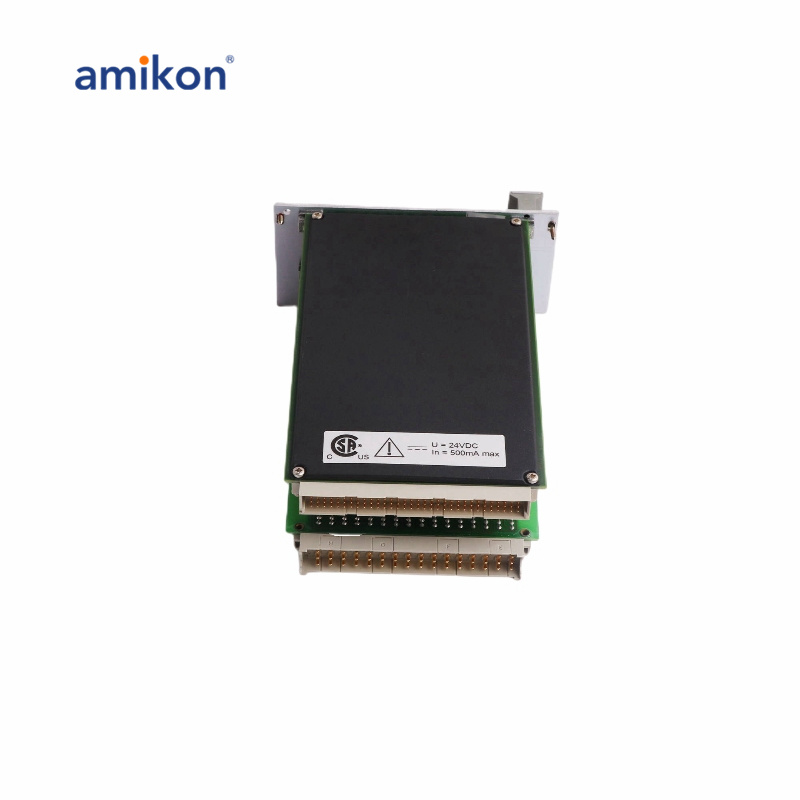

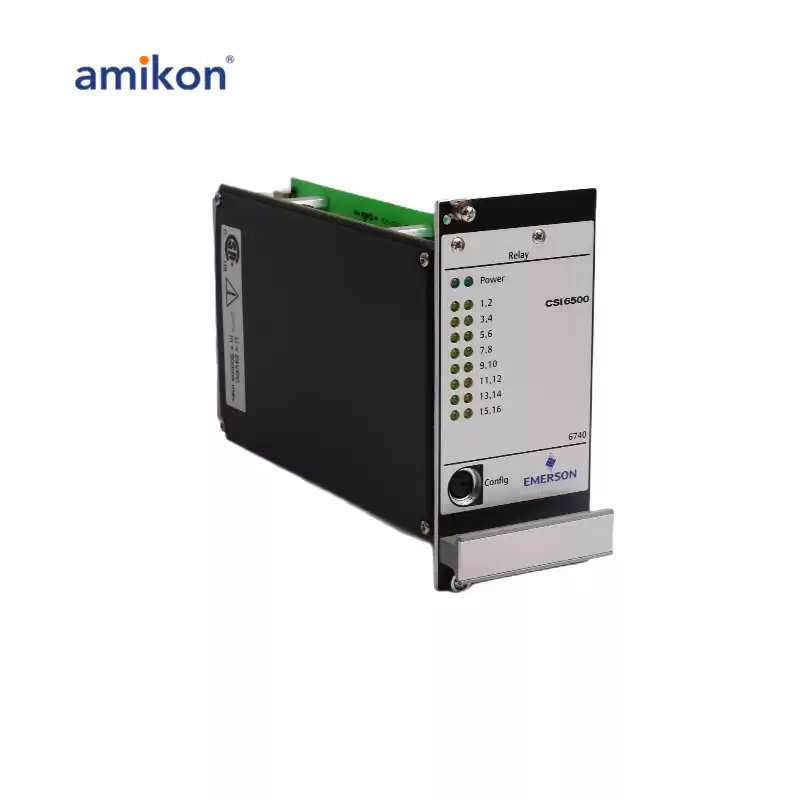

EMERSON A6740 16-Channel Output Relay Module

The 16-Channel Output Relay Module is designed for high reliability for the plant’s most critical rotating machinery. This 2-slot monitor is used together with the AMS 6500 to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery. Easy-to-use software provides graphical logic displays that guide the user pictorially through configuration.

This 2-slot monitor is used together with the AMS 6500 to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery. Easy-to-use software provides graphical logic displays that guide the user pictorially through configuration

A6740  Data sheet

A6740 16-Channel Output Relay Module for the AMS 6500 Machinery Health Monitor The 16-Channel Output Relay Module is designed for high reliability for the plant’s most critical rotating machinery. This 2-slot monitor is used together with the AMS 6500 to build a complete API 670 machinery protection monitor.

3U size, 2-slot plu-in module decreases cabinet space requirements in half from traditional 6U size cards  API 670 compliant, hot swappable module  60 inputs, 30 logical expressions, 16 relay outputs
6740 is a 12TE wide module for IMR6000 series rack.

Gross Weight: app 450 g (0.992 lbs) Operating Temperature: 0 to 65°C (32 to 149°F)
Storage Temperature: -40 to 70°C (-40 to 156°F) Relative Humidity: 5-95%, non condensing
Shock: 98 m/s² (9.98 g’s peak), 16 msec Vibration:0.15 mm (10-55HZ), 19.6 mm/s² (55-150 Hz)
