AMS 6500 ATG(A6500-UM)

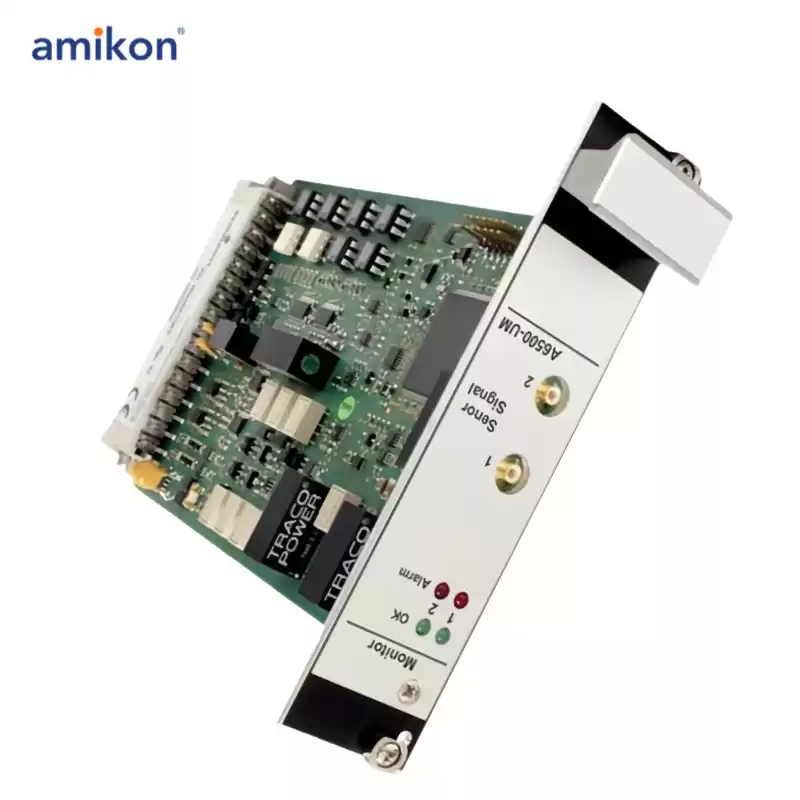

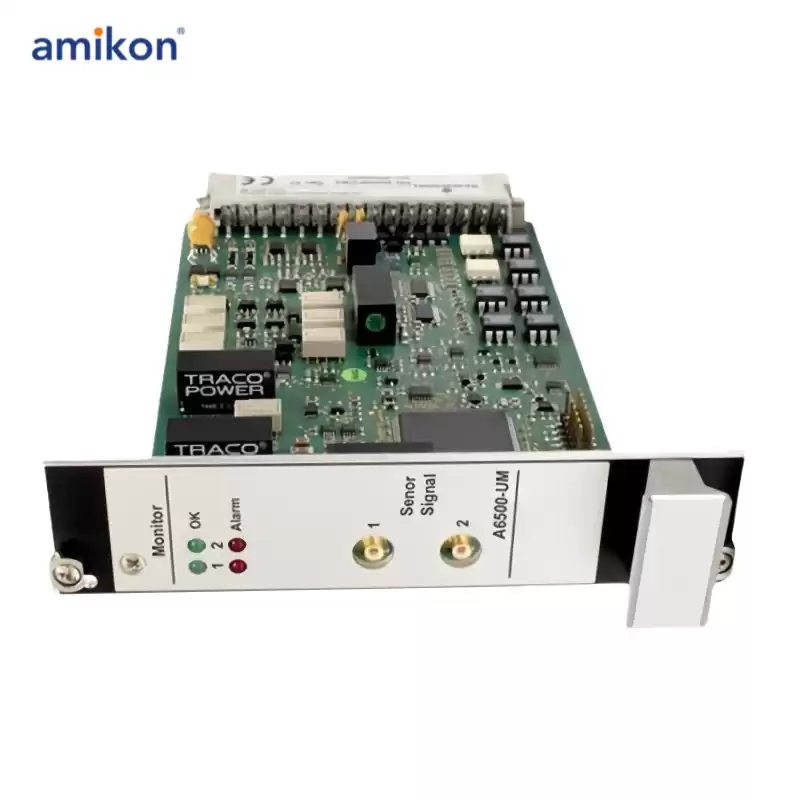

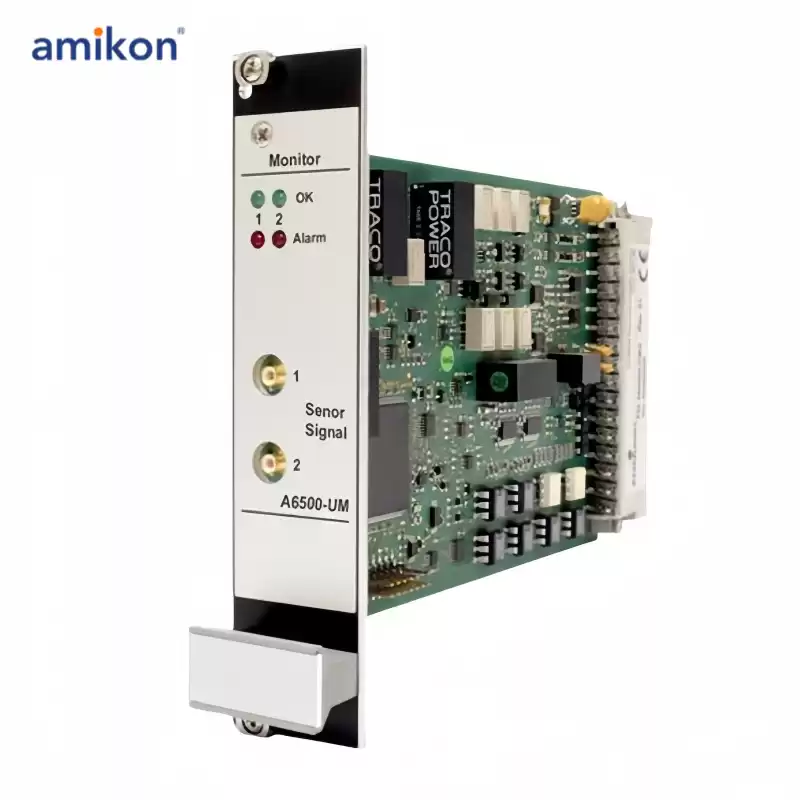

The A6500-UM Universal Measurement Card is a component of the AMS 6500 ATG machinery protection system. The card is equipped with 2 sensor input channels (independent or combined, as per chosen measurement mode) working with most common sensors as eddy-current, piezoelectric (accelerometer or velometer), seismic (electro dynamic), LF (low frequency bearing vibration), Hall-effect and LVDT (in
combination with A6500-LC) sensors. Besides this, the card contains 5 digital inputs and 6 digital outputs. The measured signals are transmitted through the internal RS 485 bus to the A6500-CC Com Card and converted to Modbus RTU and Modbus TCP/IP protocols for further transmission to host computers or analysis systems. In addition,the Com Card provides the communication through the USB socket at the face plate
for the connection to PC/ laptop for the configuration of cards and for visualization of measuring results. Apart from that, the measuring results can be output through analog outputs 0/4 - 20 mA. These outputs have a common ground and are electrically isolated from system supply. The operation of the A6500-UM Universal Measurement Card is performed in the A6500-SR System Rack, which also provides connection of
supply voltages and signals. The A6500-UM Universal Measurement Card provides the following functions:
-Shaft Absolute Vibration
-Shaft Relative Vibration
-Shaft Eccentricity
-Case Piezoelectric Vibration
-Thrust and Rod Position, Differential and Case Expansion, Valve Position
-Speed and Key
