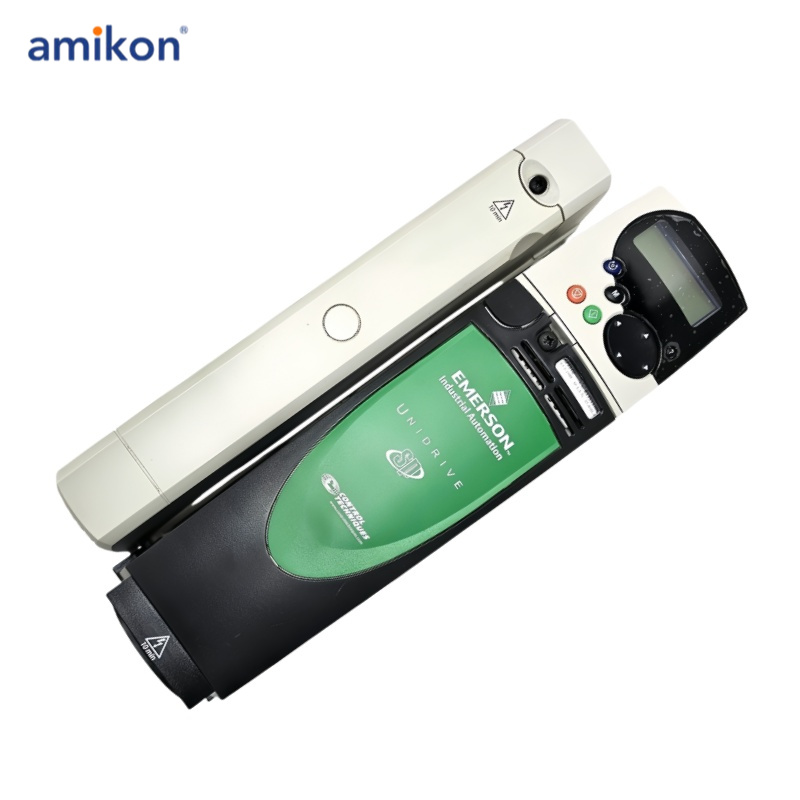

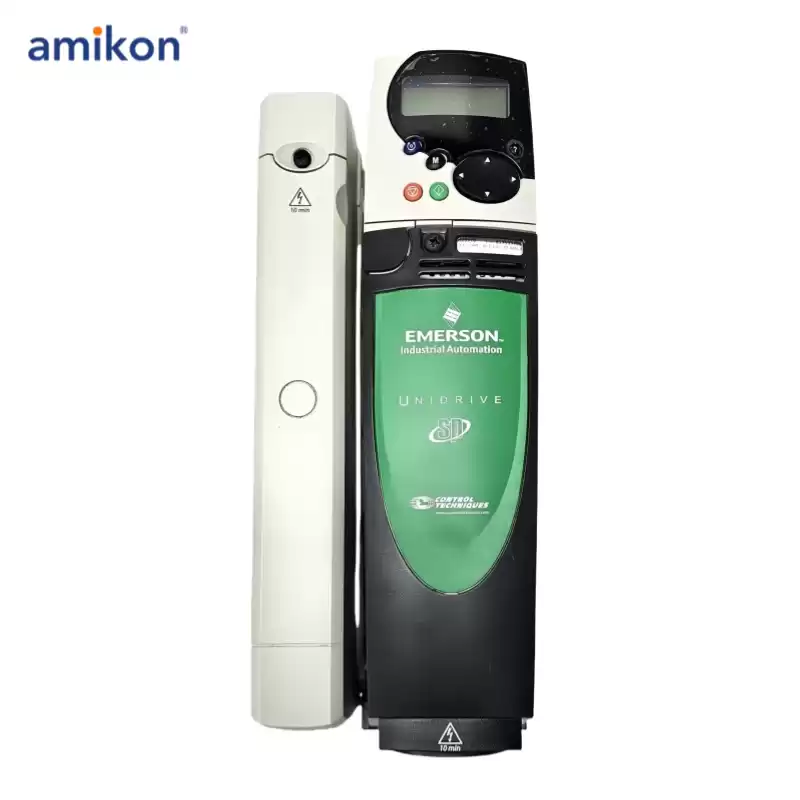

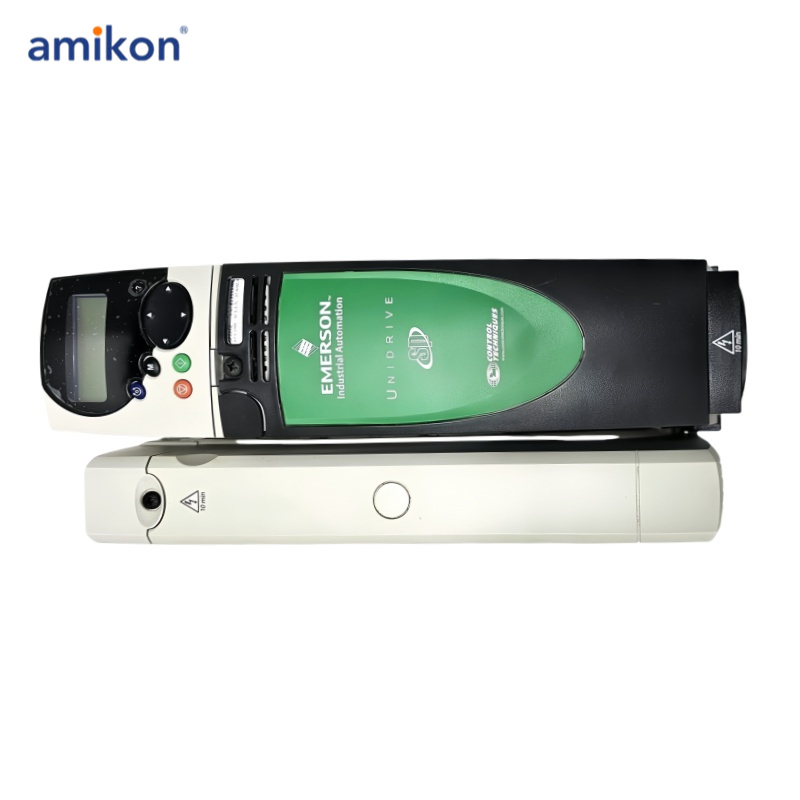

EMERSON Control Techniques Inverter Drive SP6401

Part of the Unidrive SP range, SP6401is a 90kW, 180 A, 380...480V AC AC drive manufactured by Control Techniques. As an official Control Techniques distributor, Northern Industrial supply the whole range of Unidrive SP VSDs, including options to expand the functionality of the SP6401 drive. Control Techniques design all of their inverters to be easy to install and commission, and the Unidrive SP is no different.

High Performance Motor Control
The Unidrive SP SP6401 is capable of controlling induction motors, asynchronous servo and synchronous servo motors thanks to its selection of control modes. By using the keypad, you can configure your VSD to be operated in the following modes:

Servo - Precision, dynamic control supporting a wide range of rotary and linear motors
Closed Loop Vector - Ultimate precision control of induction motors offering full motor torque at zero speed
RFC Mode (Rotor Flux Control) - Superior dynamic performance and stability without a feedback device
Open Loop Vector - Good open loop motor performance with minimum configuration
Open Loop V/F Control - A simple control algorithm that is ideal for parallel motors
Regenerative - Active front end control mode for harmonic elimination and regeneration
Many Feedback Encoder Options
The Unidrive SP range has the hardware needed to connect to virtually any feedback encoder type, which enables the designer to select the most appropriate technology for the application.Incremental - Provides a good balance of cost and performance

SinCos - Offers increased position resolution for precision and low speed applications
SSI - Offers absolute position feedback
EnDat and HIPERFACE - These encoders transfer position data using a high-speed communications network, often combined with SinCos technology
