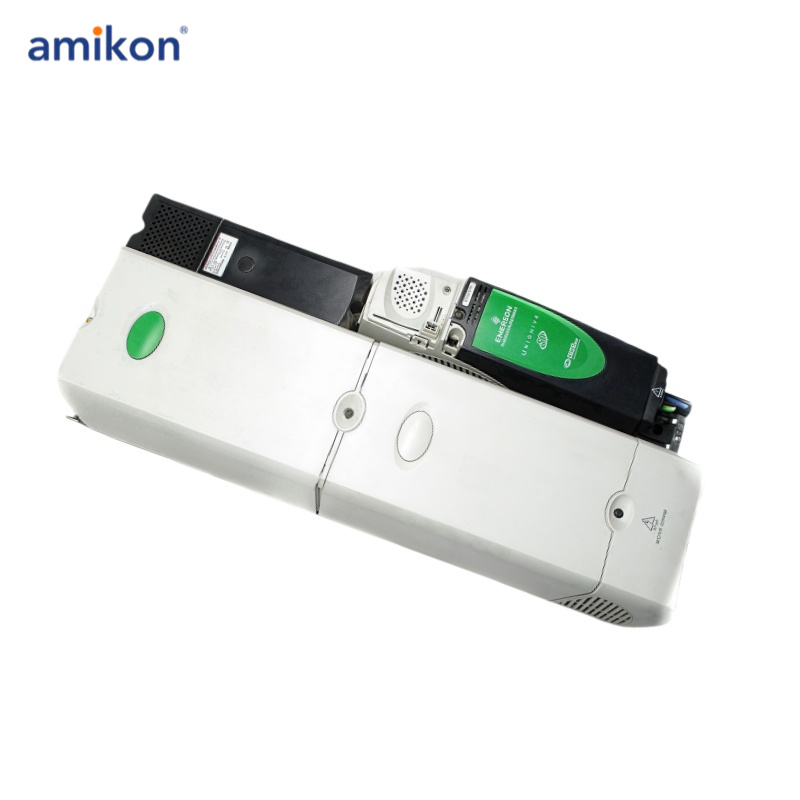

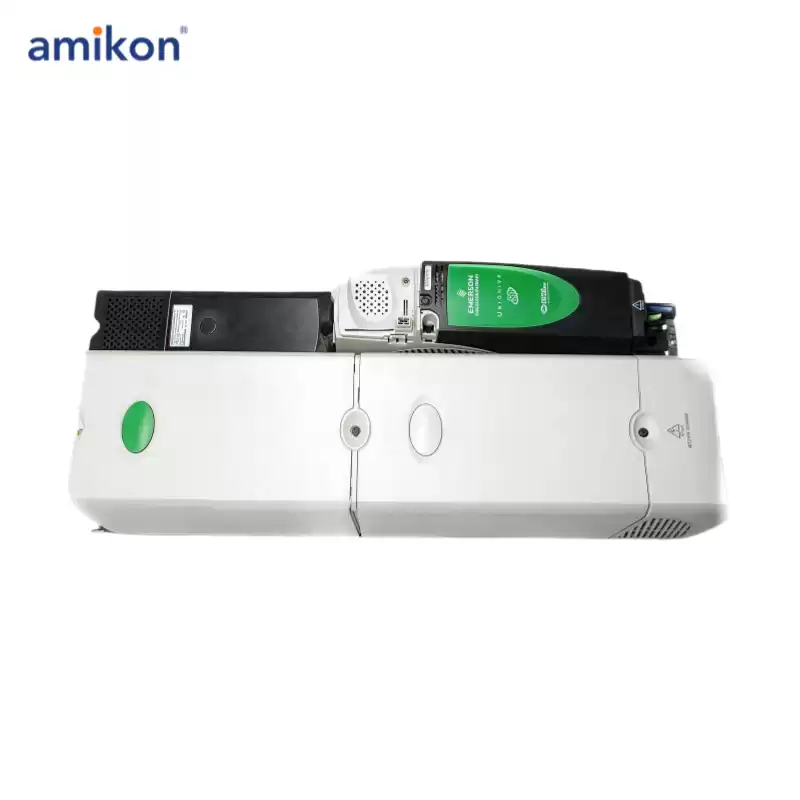

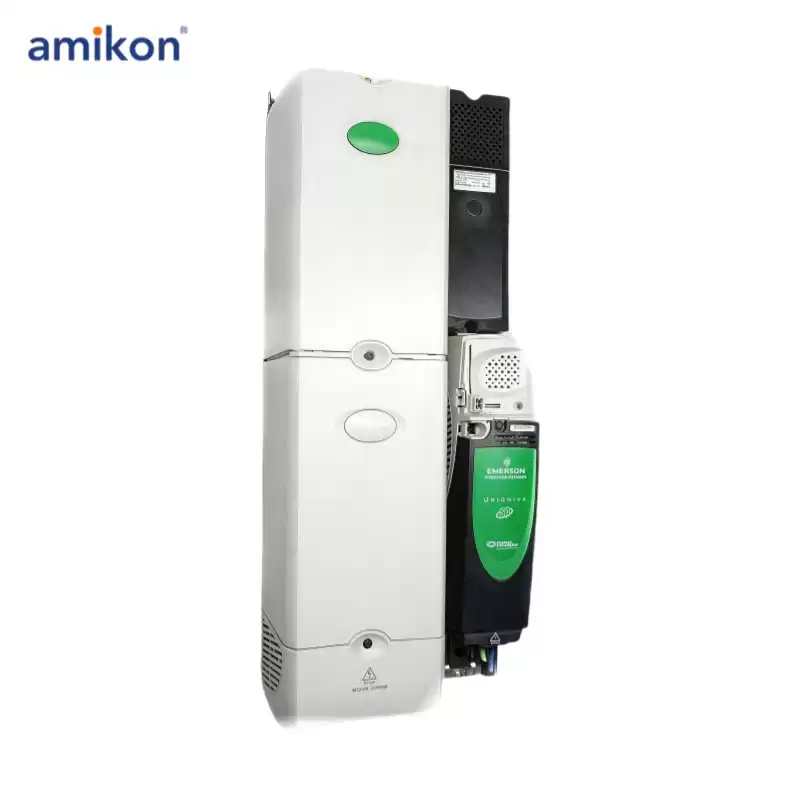

EMERSON Control Techniques Unidrive SP Configuration drive SPMD1404
Description:
SPMD1404
DISCONTINUED BY MANUFACTURER
DRIVE
3 PHASE
INPUT: 462-713 VDC / 379 AMP
OUTPUT: 480V / 290/350 AMP
160/200 KW
FACTORY WARRANTY MAY NOT APPLY.
Specifications
Part ：SPMD1404
Category：Drives
Subcategory：Drive
Weight：189.99 lbs
NOTE：
Owing to the high level of current on the input of SPMD1404 and the
output of SPMC1402 and SPMU1402, the cable installation method
must be B1 or C rather than B2 if the ambient is 40°C. Installation
method B1 is separate cables in conduit and installation method C is
multicore cable in free air.
The mounting and grouping of cables affects their current-carrying capacity, in some cases smaller cables may be acceptable but in other cases a larger cable is required to avoid excessive temperature or voltage drop. Refer to local wiring regulations for the correct size of cables.
