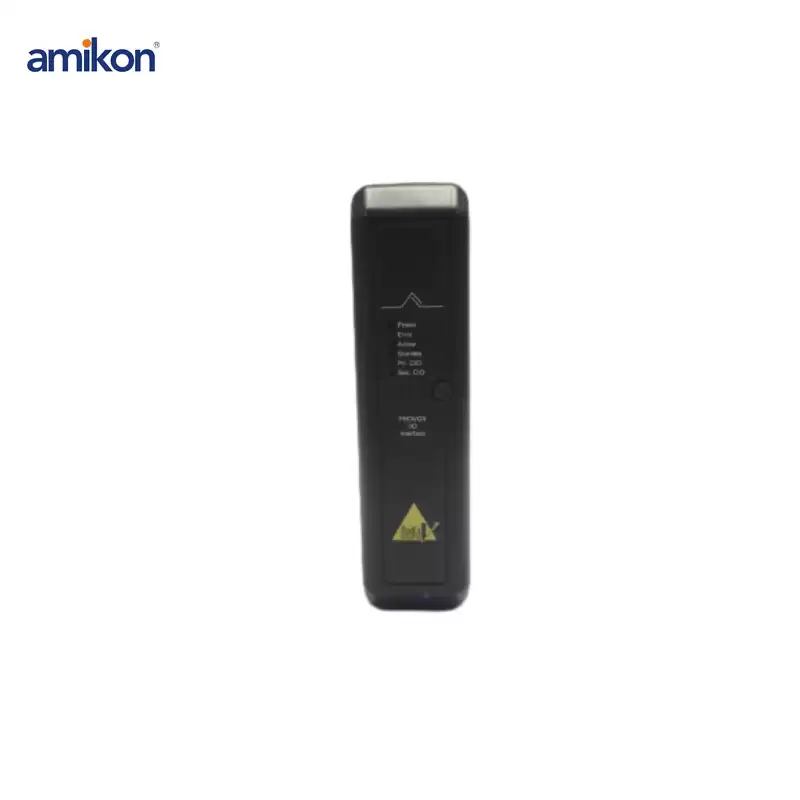

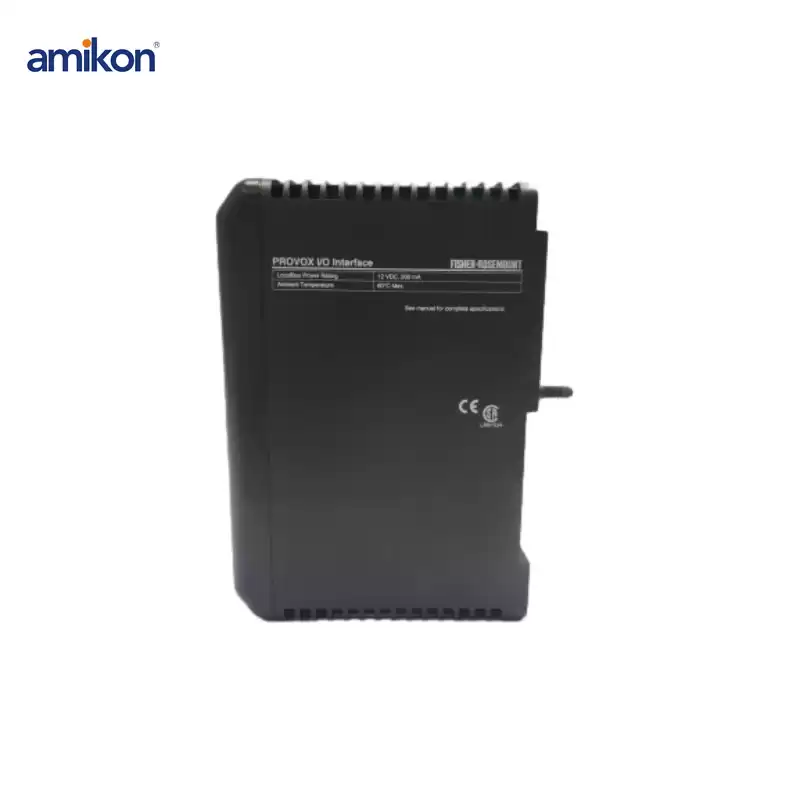

Emerson DeltaV KJ2101X1BA1 12P2690 INTERFACE MODULE
|
Technical Specifications
|
Details
|
|
Model Number
|
KJ2101X1BA1
|
|
|
12P2690
|
|
Product Type
|
INTERFACE MODULE
|
|
Brand
|
Emerson DeltaV
|
|
System Compatibility
|
DeltaV Distributed Control System (DCS)
|
|
Communication Protocols
|
RS-232, RS-422, RS-485
|
|
Number of Serial Ports
|
2
|
|
Data Transfer Rate (Baud Rate)
|
Up to 115.2 kbps
|
|
Power Supply Voltage
|
12V DC or 24V DC
|
|
Current Consumption
|
≤ 250 mA
|
|
Operating Temperature Range
|
0°C to 60°C
|
|
Storage Temperature Range
|
-40°C to 85°C
|
|
Humidity Range
|
5% to 95% non-condensing
|
|
Mounting Type
|
DIN Rail or Panel Mount
|
|
Dimensions
|
150 mm x 80 mm x 50 mm (H x W x D)
|
|
Weight
|
0.5 kg
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
|
Warranty
|
12 Months
|
If you have any questions , please contact me!
Email Skype WhatsApp Wechat
sales17@amikon.cn +86 189 6519 6563 +86-189 6519 6563 Amikonplc
The Emerson DeltaV KJ2101X1BA1 12P2690 INTERFACE MODULE is a critical component designed for seamless integration into DeltaV systems.
It enables reliable communication between DeltaV controllers and other serial-based devices.
This module supports various serial communication protocols, allowing for enhanced data transfer and real-time system monitoring.
Product Advantages
Baud Rate:
The baud rate is user-configurable, supporting speeds from 9600 bps to 115.2 kbps, ensuring compatibility with a wide range of serial devices.
Port Configuration:
The module has two configurable serial ports, allowing the user to set communication parameters, including baud rate, parity, stop bits, and data bits, to match the requirements of the connected devices.
Galvanic Isolation:
The module features 1500V galvanic isolation between the system and the serial ports, providing protection against electrical surges and noise, ensuring system reliability in harsh industrial environments.
System Integration:
Fully integrated with the DeltaV DCS, the module allows for easy configuration and monitoring through the DeltaV Explorer and DeltaV Control Studio software. It supports real-time data exchange between DeltaV controllers and external devices such as PLCs, RTUs, and sensors.
