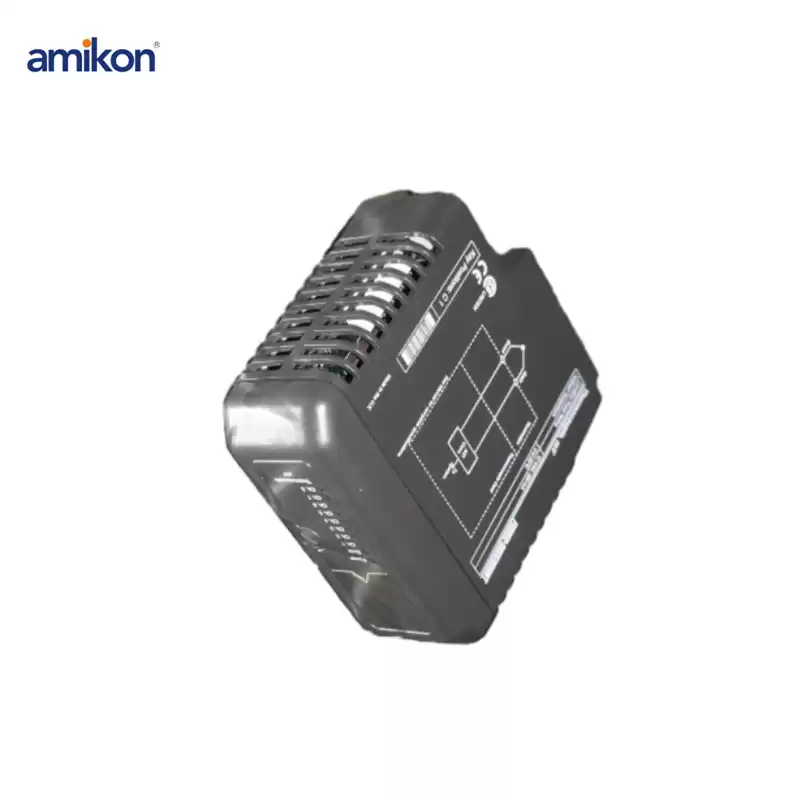

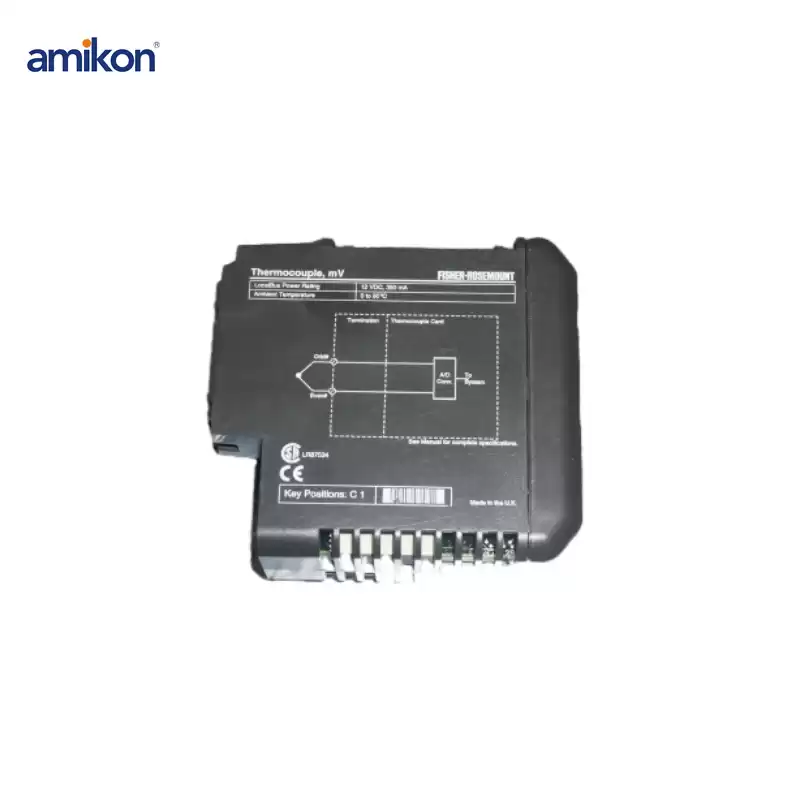

The Emerson DeltaV KJ3002X1-BG1 VE4003S5 Channels Thermocouple Module is a high-performance I/O module designed for precise temperature measurement using thermocouples.
It integrates seamlessly with the DeltaV Distributed Control System (DCS), allowing for accurate monitoring and control of temperature processes.
This module supports various thermocouple types, making it ideal for a wide range of industrial applications that require reliable temperature measurements in harsh environments.
Product Specifications
Input Channels: 16 analog inputs
Input Type: Differential or single-ended
Input Range: ±10V, ±5V, 0–5V, 0–10V
Resolution: 16-bit
Input Impedance: >1 MΩ (voltage inputs)
Accuracy: ±0.1% of full scale
Isolation: 1500V AC channel-to-bus and channel-to-channel
Power Supply: 24V DC (nominal)
Power Consumption: 3.5 W maximum
HART Compatibility: Supports HART protocol for enhanced device communication
Baud Rate: 1200 bps
Device Communication: Point-to-point and multidrop configurations
8-Channel Thermocouple Input Module:
Supports up to 8 thermocouple inputs for flexible and scalable temperature monitoring.
Multi-Thermocouple Type Support:
Compatible with standard thermocouple types including J, K, T, E, B, R, S, and N for a wide range of industrial applications.
High-Accuracy Temperature Measurement:
Provides precise temperature data with a high degree of accuracy and stability.
Cold Junction Compensation (CJC):
Integrated cold junction compensation ensures accurate readings by compensating for environmental temperature variations at connection points.
Seamless DeltaV Integration:
Fully integrates with Emerson’s DeltaV system for easy configuration, control, and data visualization.
Hot Swappable:
Allows for easy maintenance and replacement without disrupting system operations.
Diagnostics and Alarming:
Built-in diagnostic capabilities provide real-time feedback and alarming for efficient troubleshooting.
