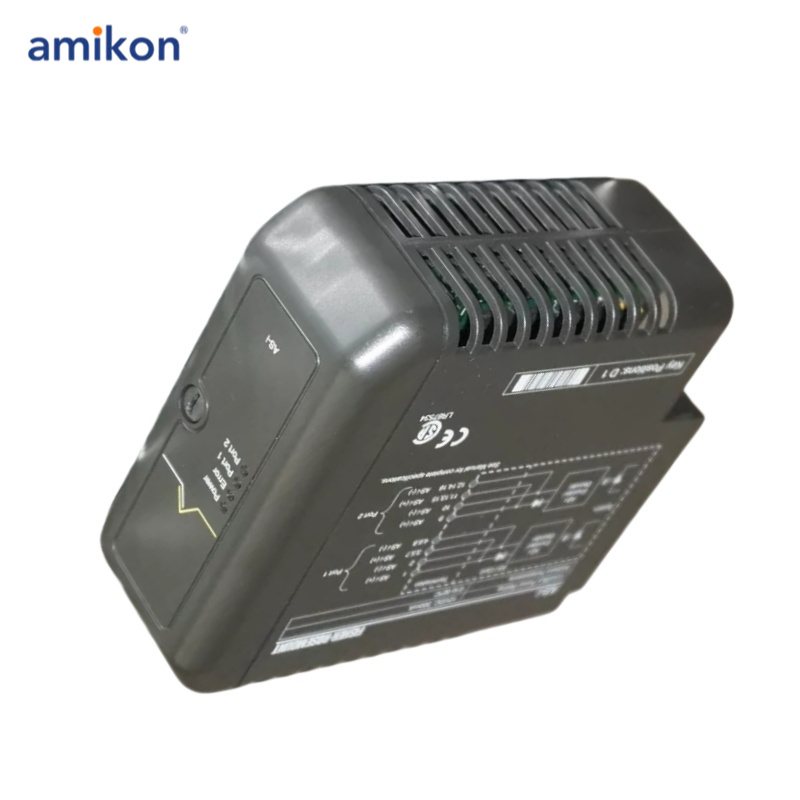

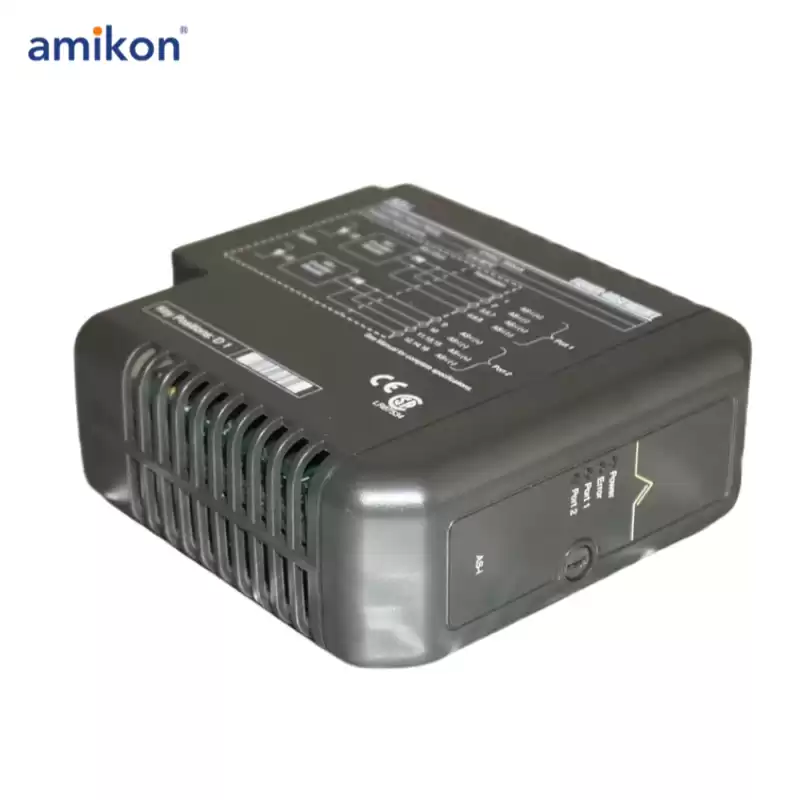

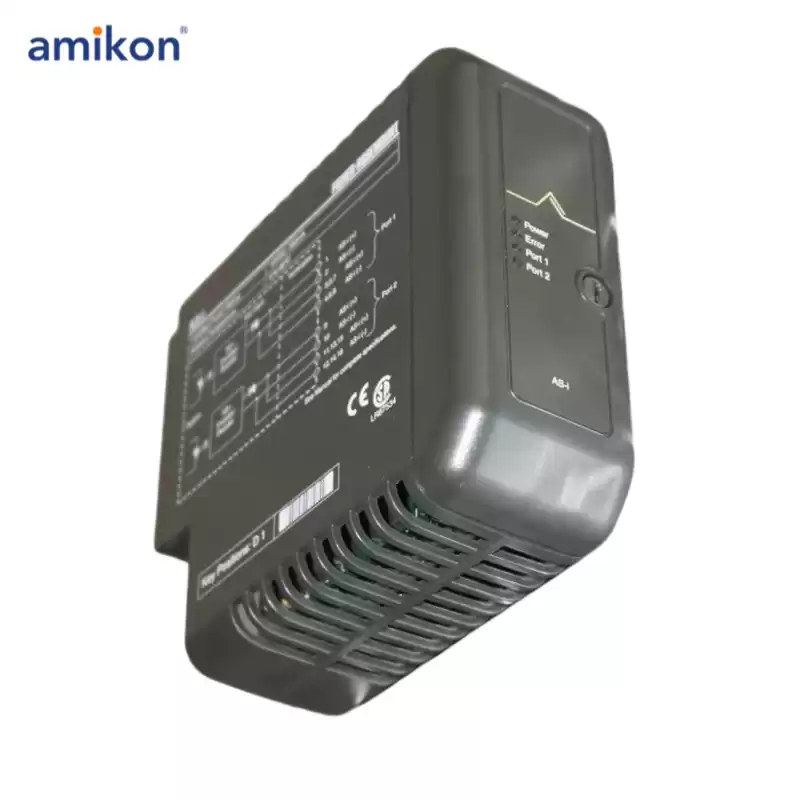

The Emerson DeltaV KJ3005X1BA1 12P2047X022 VE4009 Actuator Sensor Module is a crucial interface for connecting actuators and sensors to the DeltaV Distributed Control System (DCS). This module provides reliable input and output channels that can be used to control actuators and receive sensor feedback, making it essential for automation and process control in various industries.
With seamless DeltaV integration and a compact design, it ensures optimal performance and flexibility in monitoring and controlling mechanical systems.
Product Specifications
Input Channels: 16 analog inputs
Input Type: Differential or single-ended
Input Range: ±10V, ±5V, 0–5V, 0–10V
Resolution: 16-bit
Input Impedance: >1 MΩ (voltage inputs)
Accuracy: ±0.1% of full scale
Isolation: 1500V AC channel-to-bus and channel-to-channel
Power Supply: 24V DC (nominal)
Power Consumption: 3.5 W maximum
HART Compatibility: Supports HART protocol for enhanced device communication
Baud Rate: 1200 bps
Device Communication: Point-to-point and multidrop configurations
Multiple I/O Channels:
Supports both actuator control and sensor inputs, offering flexibility for various industrial applications.
Seamless DeltaV Integration:
Full integration with the DeltaV system allows for efficient configuration, monitoring, and control through DeltaV Explorer and Control Studio.
High-Accuracy Signal Processing:
Delivers precise control and monitoring of actuator positions and sensor feedback signals.
Diagnostics and Alarming:
Built-in diagnostic capabilities for real-time monitoring of module and signal integrity.
Compact and Modular Design:
The module’s small form factor allows for efficient use of space within control cabinets, while the modular design supports easy system expansion.
