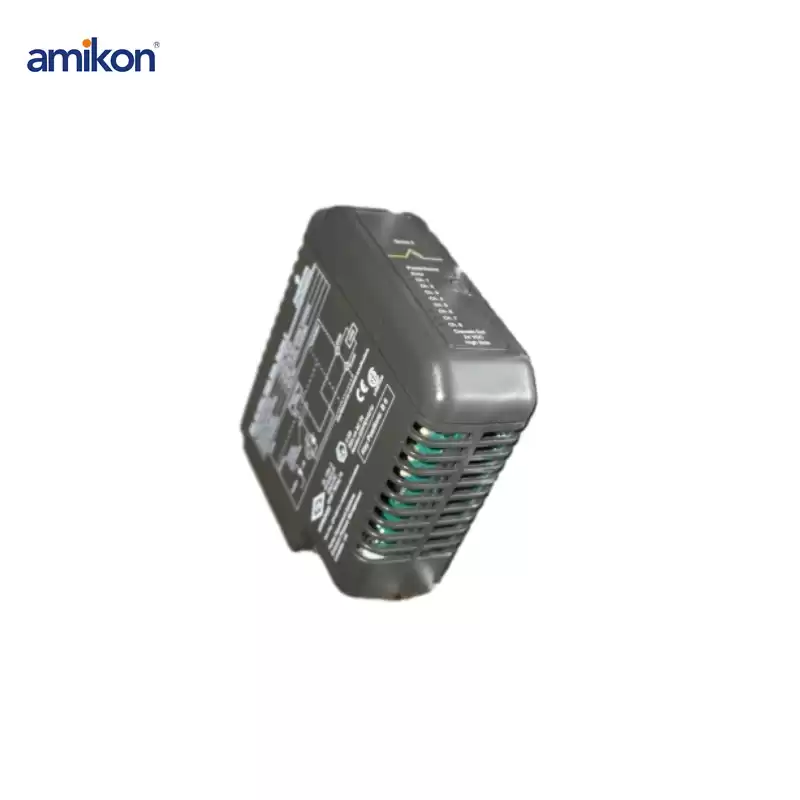

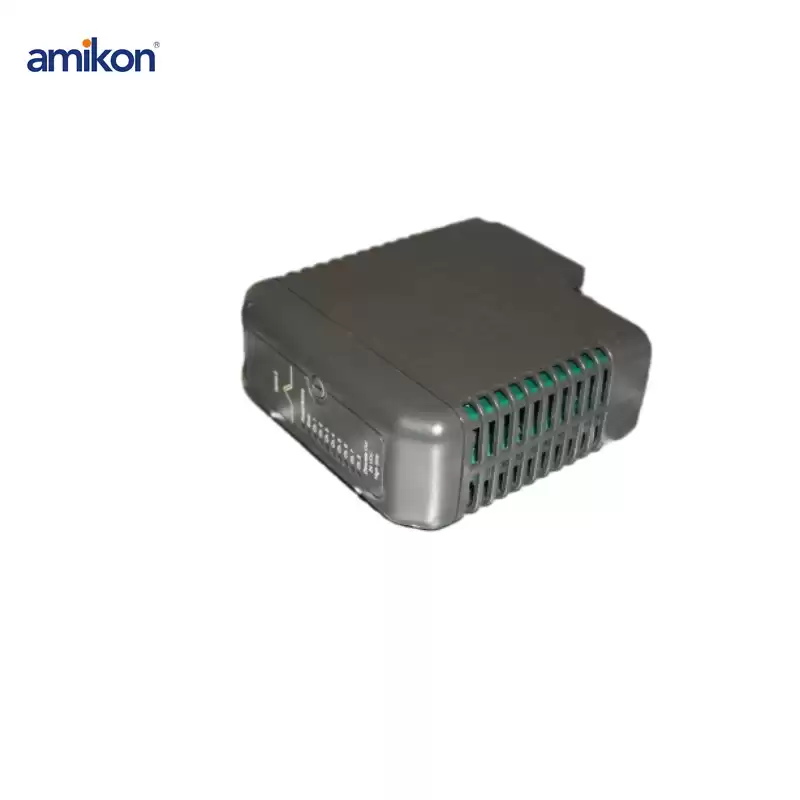

The Emerson DeltaV KJ3202X1-BA1 VE4002S1T2B2 High-Side is designed to provide reliable and accurate input signal acquisition for process automation systems.
It integrates seamlessly with the DeltaV Distributed Control System (DCS), allowing users to monitor and control a wide variety of analog signals from field instruments.
Its robust design ensures long-term operation in industrial environments, making it suitable for a wide range of applications including power plants, oil and gas facilities, and chemical processing plants.
Product Specifications
Input Channels: 16 analog inputs
Input Type: Differential or single-ended
Input Range: ±10V, ±5V, 0–5V, 0–10V
Resolution: 16-bit
Input Impedance: >1 MΩ (voltage inputs)
Accuracy: ±0.1% of full scale
Isolation: 1500V AC channel-to-bus and channel-to-channel
Power Supply: 24V DC (nominal)
Power Consumption: 3.5 W maximum
HART Compatibility: Supports HART protocol for enhanced device communication
Baud Rate: 1200 bps
Device Communication: Point-to-point and multidrop configurations
16-channel Analog Input Module:
Supports up to 16 analog signals for versatile control and monitoring applications.
High Accuracy and Stability:
Ensures precise measurement of analog signals, reducing errors in signal acquisition.
DeltaV System Integration:
Fully compatible with Emerson's DeltaV system for seamless configuration and operation.
HART Protocol Support:
Allows easy communication with HART-enabled field devices, providing diagnostic and configuration data.
Plug-and-Play Installation:
Simplifies setup with easy module integration and automatic system recognition.
Robust Design for Industrial Use:
Operates reliably in harsh environments with extended temperature and vibration tolerance.
